1044442 WTB11-2P2461
Product Overview

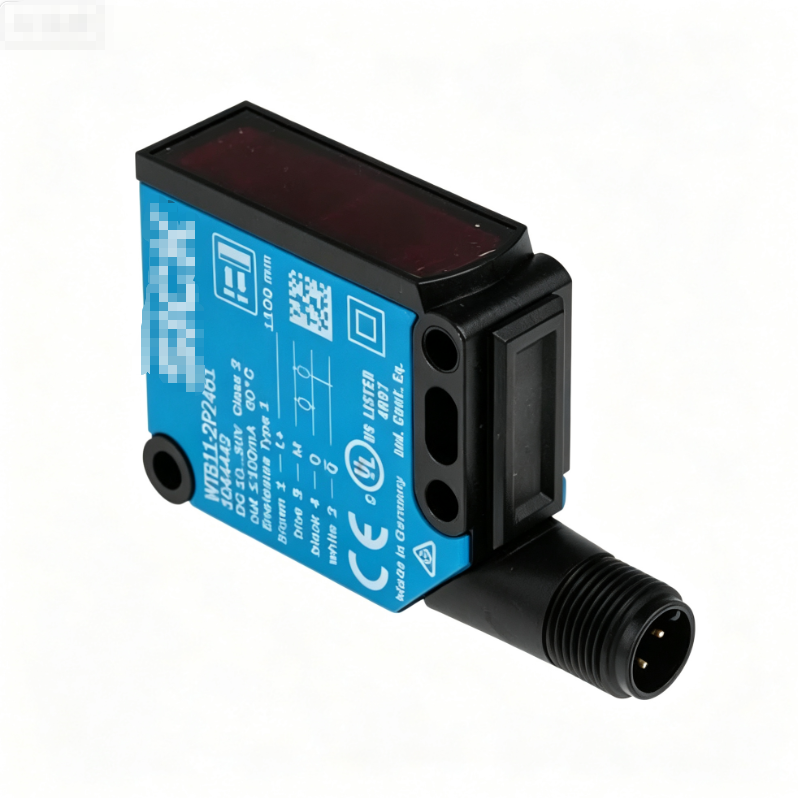

WTB11-2P2461 (Part No.1044442) is a diffuse photoelectric sensor with background suppression from SICK WTB11 series. It uses PinPoint 660nm visible red LED light source, sensing distance 30 ~ 800 mm, maximum up to 1100 mm. It has 5-turn potentiometer for sensitivity adjustment, PNP output type and powered by DC10~30V. With ABS plastic housing, IP67 protection class and M12 4-pin male connector. Thanks to background suppression technology, it can detect target objects accurately and eliminate false triggering caused by background interference. Brand new original SICK photoelectric sensor.
| 属性名称 | 属性值 |
|---|---|
| Brand | SICK |
| Model Number | WTB11-2P2461 |
| Part No. | 1044442 |
| Product Type | Photoelectric Sensor |
| Series | W11 / WTB11 |
| Principle | Diffuse photoelectric sensor with background suppression |
| Sensing Distance | 30 ~ 800 mm, max 1100mm |
| Light Source | PinPoint LED, 660nm visible red light |
| Adjustment | 5-turn potentiometer |
| Output Type | PNP |
| Supply Voltage | 10 V DC ~ 30 V DC |
| Connector | M12 4-pin male connector |
| Housing Material | ABS Plastic |
| Protection Class | IP67 |
| Switching Frequency | 200 Hz |
| Condition | New Original |
| Application | Object detection, conveyor system, packaging machinery, material handling |
| Net Weight | 0.055 KG |
| Gross Weight | 0.085 KG |
| Place of Origin | Germany |
| MOQ | 1 Piece |
| Warranty | 12 Months |
