MSN1G-24DC-OD
Product Description

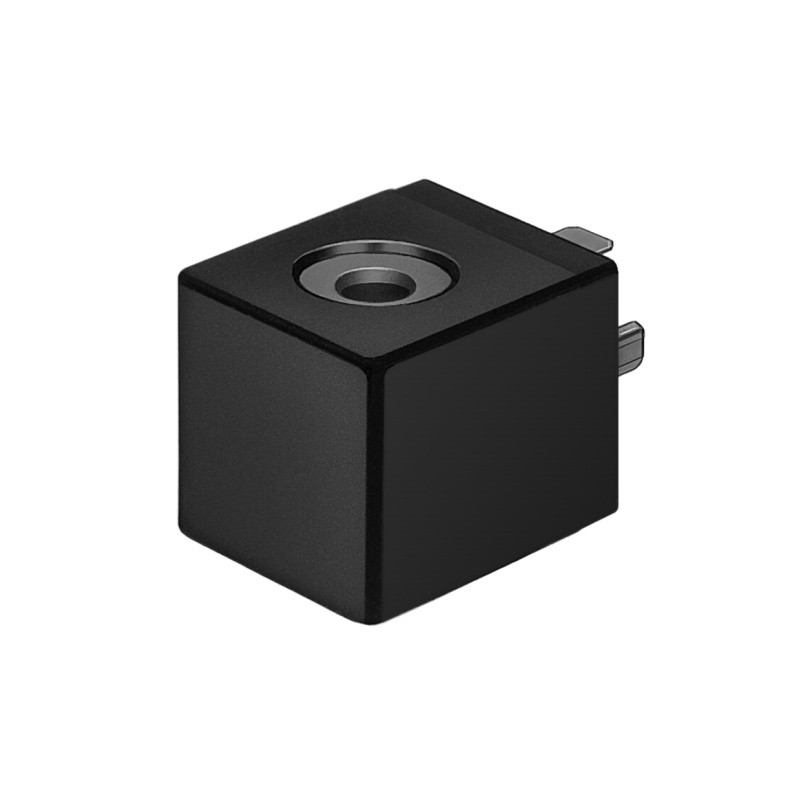

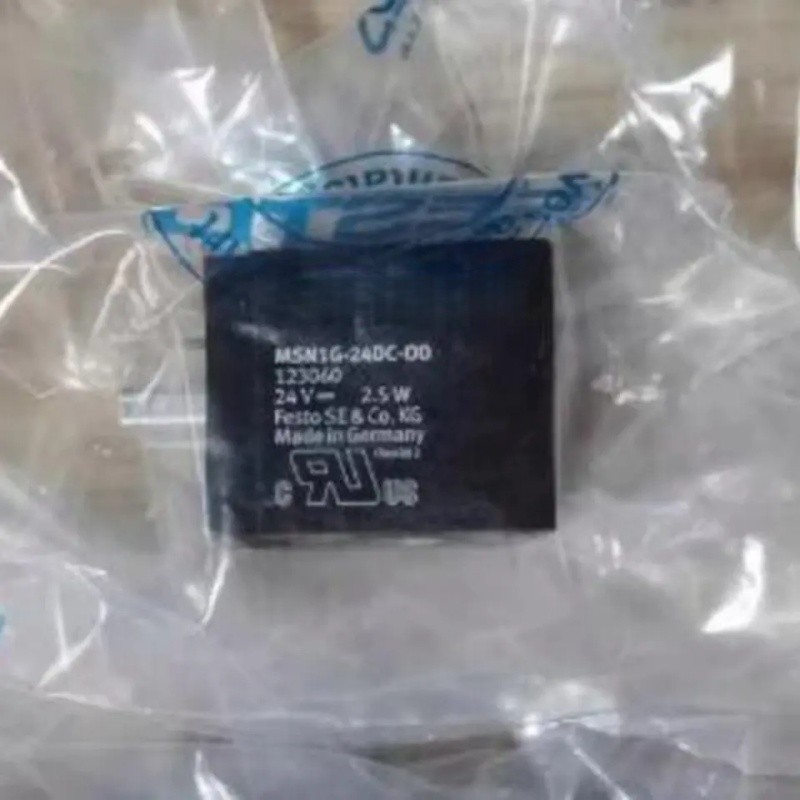

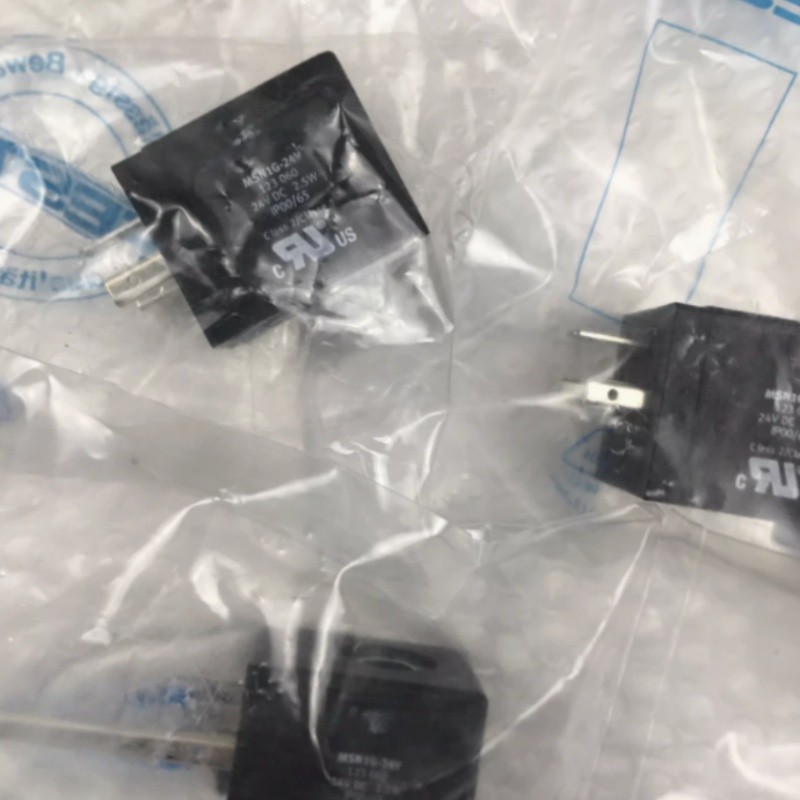

Festo MSN1G-24DC-OD (Part No.123060) is MSN1 series solenoid coil for pneumatic solenoid valves. Rated DC24V, power consumption 2.5W, supports 100% continuous duty cycle. It is OD version without plug socket, adopting DIN EN 175301-803 3-pin type A interface.
It uses clip-on installation and can be rotated 360° on valve armature tube. IP65 protection ensures reliable performance in industrial environment. PA polyamide housing and copper winding, copper & PTFE free design, meets LABS PWIS requirement. It is common spare replacement coil for Festo pneumatic solenoid valves.
| Item | Specification |
|---|---|
| Brand | Festo |
| Model | MSN1G-24DC-OD |
| Part Number | 123060 |
| Type | Solenoid coil |
| Series | MSN1 |
| Rated Voltage | DC24V |
| Coil Power | 2.5 W |
| Voltage Tolerance | -15% / +10% |
| Duty Cycle | 100% |
| Min Pick-up Time | 10 ms |
| Electrical Connection | 3-pin Type A, DIN EN 175301-803 |
| Protection Class | IP65 |
| Ambient Temp | -10 ~ +50 ℃ |
| Weight | 80.00 g |
| Material | PA housing, copper winding, steel contact |
| Corrosion Class | CRC1 |
| Standard | LABS, RoHS, cULus, Copper & PTFE free |
