CM18-08BPP-EC1 6058145
Product Overview

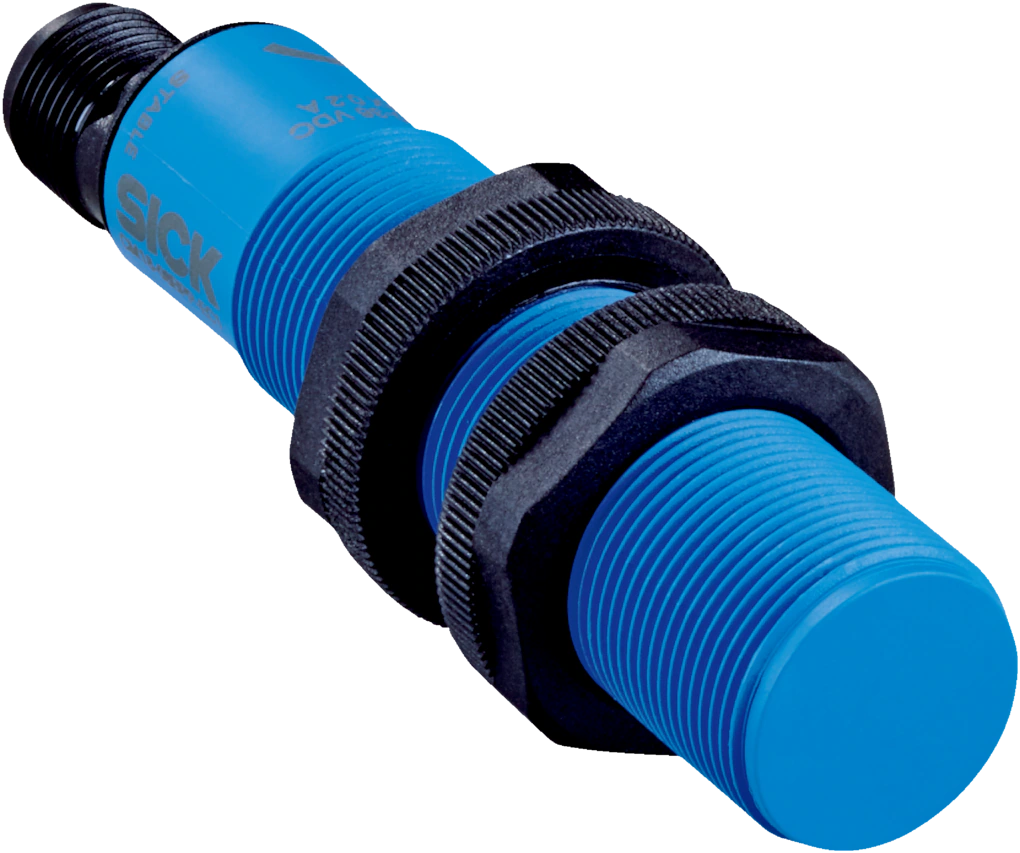

New original SICK CM18-08BPP-EC1 capacitive proximity sensor, PN 6058145, CM series M18 threaded flush mount sensor. 8mm sensing distance, complementary PNP output, 10-36VDC power supply. It adopts M12 4-pin male connector and IP67/IP68/IP69K high protection grade. PBT plastic housing with 11-turn potentiometer for sensitivity adjustment and wire configurable output. Working temperature ranges from -30℃ to +85℃. It is widely used for level detection, object counting and position monitoring in packaging, conveyor and other harsh industrial automation systems. We supply genuine SICK sensors with fast delivery and professional after-sales support.
| 属性名 | 属性值 |
|---|---|
| Brand | SICK |
| Model | CM18-08BPP-EC1 |
| Part No. | 6058145 |
| Series | CM |
| Sensor type | Capacitive proximity sensor |
| Sensing distance | 8 mm |
| Installation | Flush mount |
| Output type | PNP, complementary |
| Wiring | DC 4-wire |
| Connection | M12 male, 4-pin |
| Supply voltage | 10–36 V DC |
| Max switching current | 200 mA |
| Switching frequency | 50 Hz |
| IP rating | IP67, IP68, IP69K |
| Housing material | PBT plastic |
| Operating temperature | -30 ℃ ~ +85 ℃ |
| Feature | 11-turn potentiometer for sensitivity adjustment, wire configurable output |
| Weight(net) | 0.08 kg |
| Weight(gross) | 0.14 kg |
| Certificate | RoHS, cULus, Ecolab |
