WLA12P-34162130A00ZDZZZZZZZZZ1
Product Details

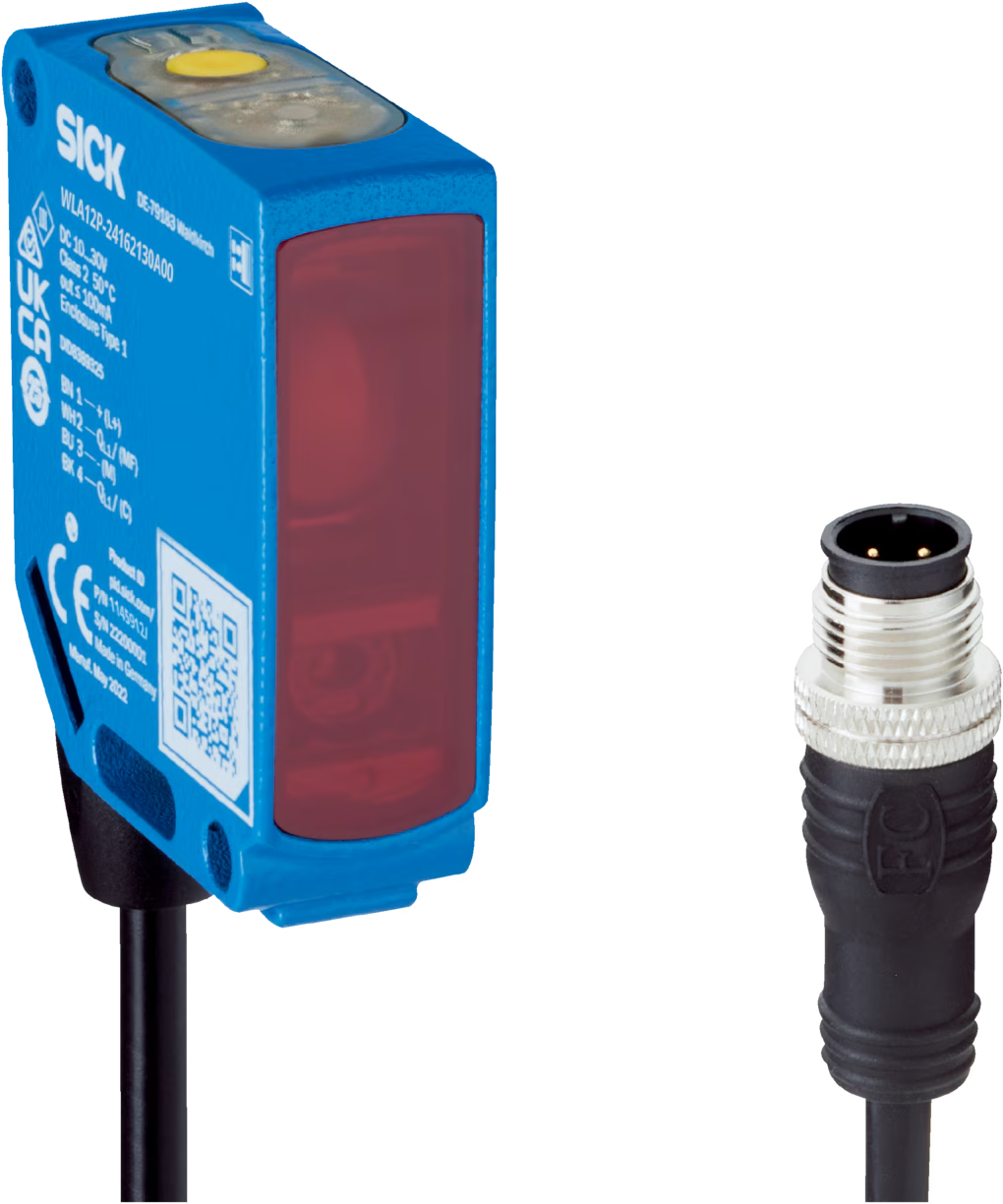

The SICK WLA12P-34162130A00ZDZZZZZZZZZ1 is a brand-new original retro-reflective photoelectric sensor from the W12 series. It adopts visible red LED as light source and operates within 10–30 V DC power supply, with PNP output supporting switchable Light-ON / Dark-ON modes for easy connection to different PLC controllers. It achieves IP67 protection grade for excellent dust and moisture resistance in tough industrial environments.
Built with robust zinc die-cast rectangular housing, this sensor comes with M12 4-pin connector for quick installation and wiring. It needs to cooperate with a corresponding reflector; the sensor detects objects once the red light beam between sensor and reflector is interrupted.
This sensor is widely used for object detection on conveyor belts, packaging machinery and material handling automated lines. Every unit undergoes complete quality inspection before shipment and carries CE certification. We supply genuine SICK sensors with MOQ of 1 piece and provide stable global shipping services to meet your factory automation requirements.
| 属性名称 | 属性值 |
|---|---|
| Brand | SICK |
| Model | WLA12P-34162130A00ZDZZZZZZZZZ1 |
| Product Name | Photoelectric Sensor |
| Product Type | Retro-reflective Photoelectric Sensor |
| Series | W12 Series |
| Working Principle | Retro-reflection detection |
| Light Source | Visible Red LED |
| Housing Material | Zinc die-cast metal |
| Shape | Rectangular |
| Dimension(W×H×D) | 15.8mm × 49.2mm × 43.1mm |
| Connection | M12 4-pin connector |
| Output Type | PNP, Light-ON / Dark-ON switchable |
| Supply Voltage | 10 … 30 V DC |
| IP Rating | IP67 |
| Ambient Temperature | -25℃ ~ +55℃ |
| Net Weight | 0.22 kg |
| Gross Weight | 0.28 kg |
| Origin | Germany |
| Condition | Brand New Original |
| Application | Object detection,conveyor,packaging machinery,material handling |
| Certificate | CE |
| MOQ | 1 Piece |
