LFV200-XXTGATPV
Product Overview

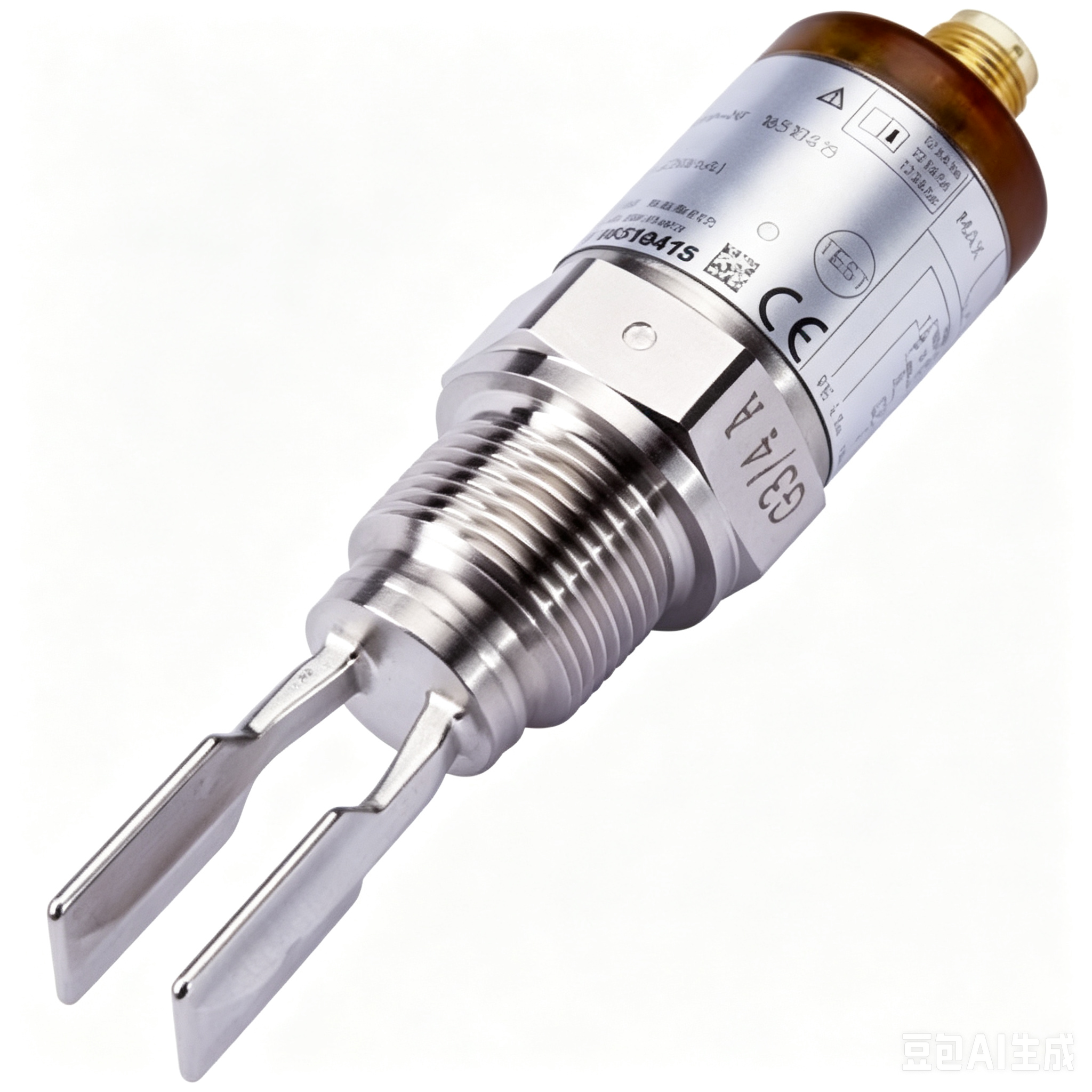

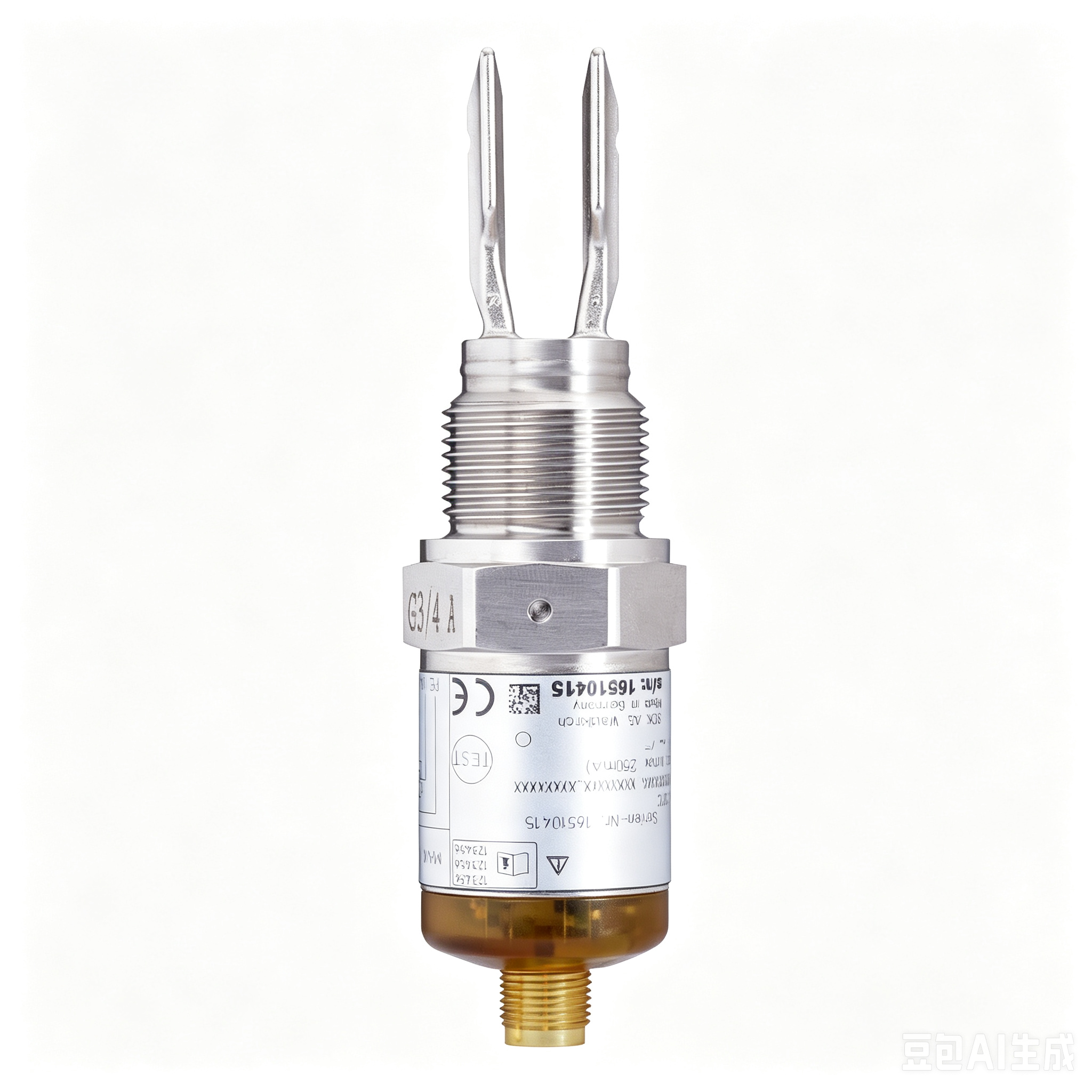

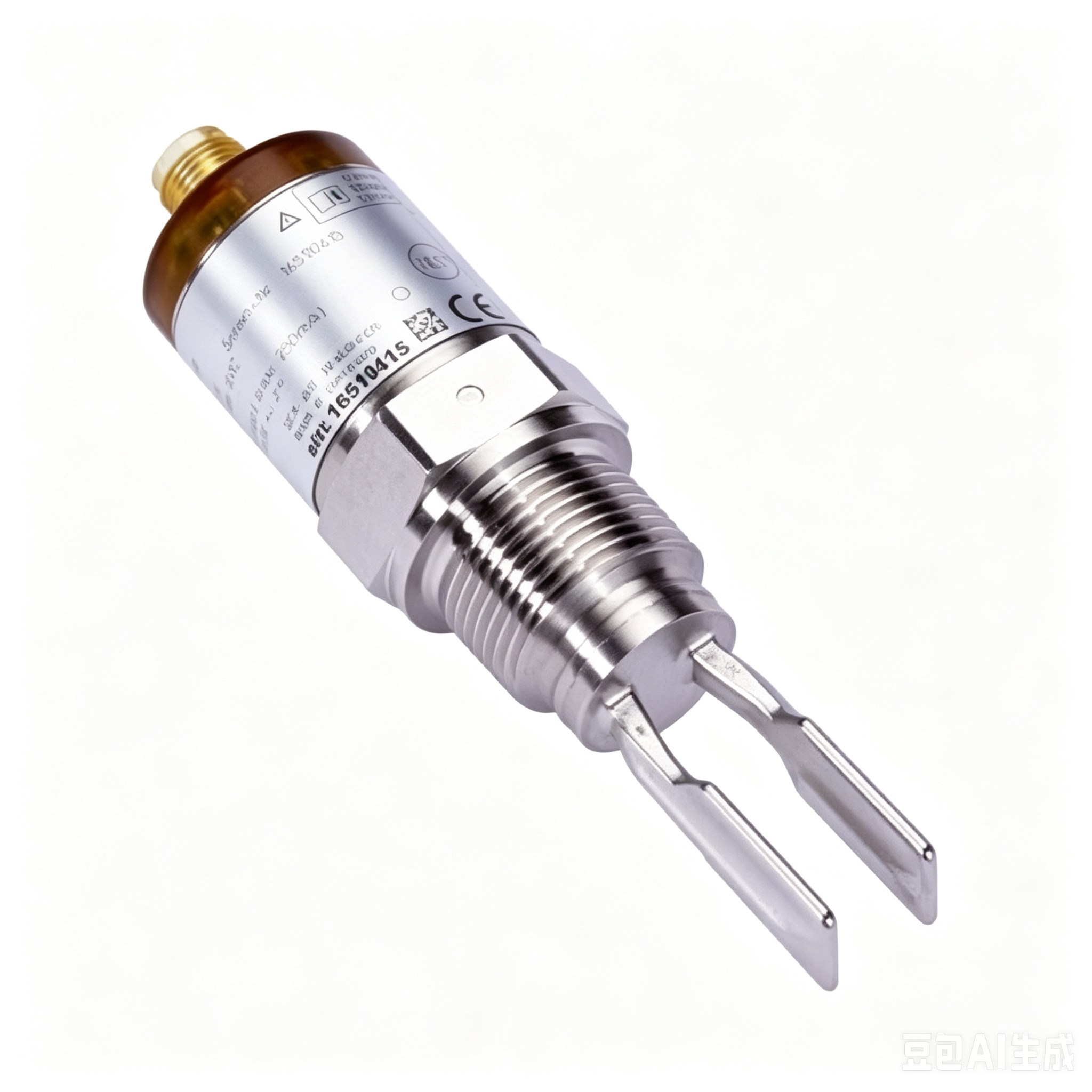

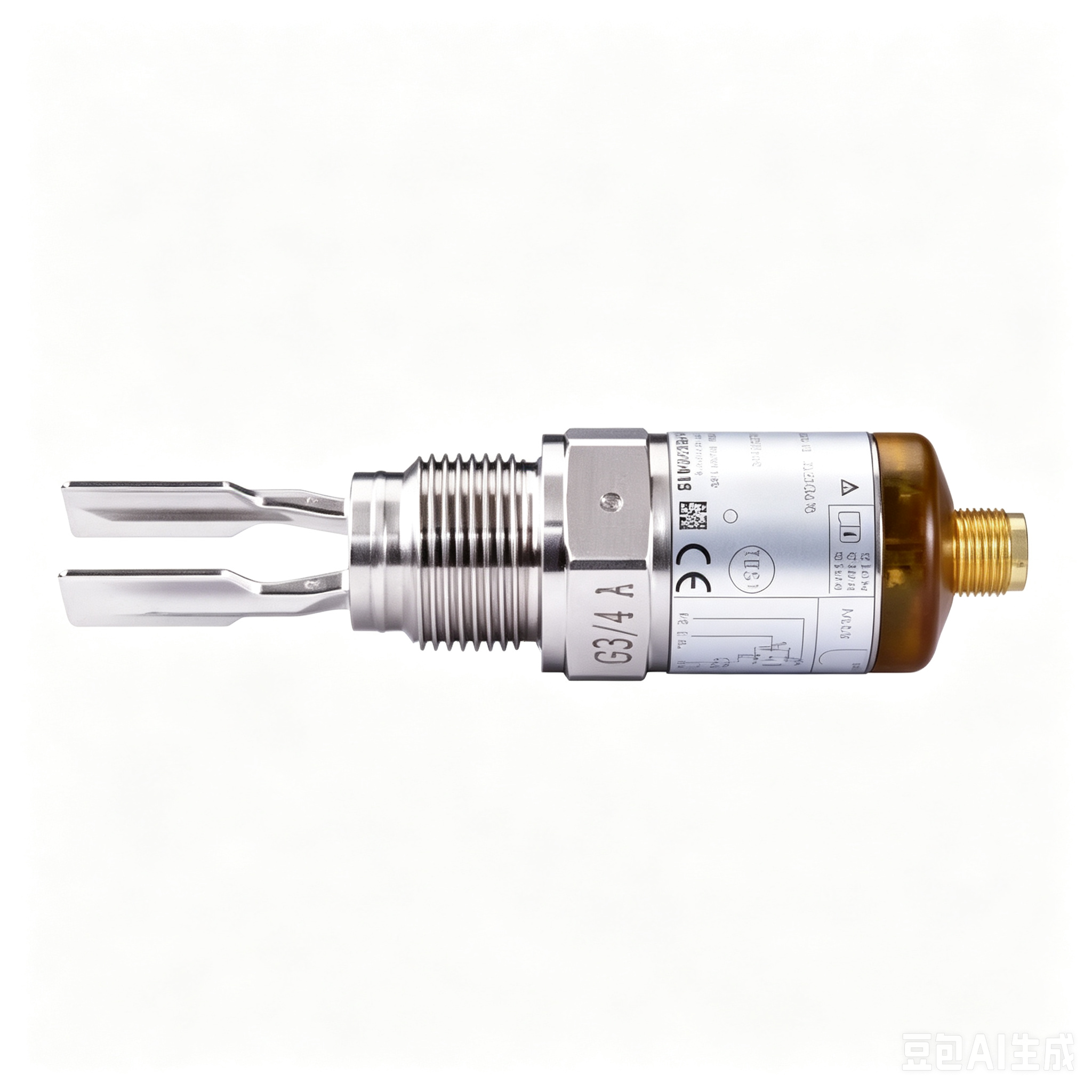

LFV200-XXTGATPV is SICK high-temperature vibrating tuning fork level switch for point liquid level detection. It comes with 67mm fork probe and G3/4 A process connection. Wetted components are made of 1.4404(316L) stainless steel and PEEK. It provides PNP output, supply voltage 9.6~35V DC with max output current 250mA. Working pressure ranges from -1 bar to +64 bar, operating temperature -40℃~+150℃. Applicable medium density 0.7~2.5 g/cm³ and viscosity 0.1~10000 mPas. With IP67 protection, anti-crystallization design, WHG and CE certifications, it is suitable for high temperature liquid point level monitoring and high/low level alarm.
| 属性名称 | 属性值 |
|---|---|
| Brand | SICK |
| Model | LFV200-XXTGATPV |
| Order No. | LFV200-XXTGATPV |
| Product Type | Vibrating Fork Level Switch |
| Connector Type | M12 Straight, 4 Pin |
| Pin | 4 Pin |
| Sensing Principle | Tuning fork vibration |
| Probe Length | 67 mm |
| Process Connection | G3/4 A |
| Wetted Material | 1.4404(316L) stainless steel, PEEK |
| Output Signal | PNP |
| Supply Voltage | 9.6~35 V DC |
| Max Output Current | 250 mA |
| Working Pressure | -1 bar ~ +64 bar |
| Operating Temperature | -40℃~+150℃ |
| Measuring Density | 0.7~2.5 g/cm³ |
| Viscosity Range | 0.1~10000 mPas |
| IP Rating | IP67 |
| Feature | High temperature resistant, anti-crystallization, high repeatability |
| Certification | CE, WHG |
| Condition | New Original |
| MOQ | 1 Piece |
| Gross Weight | 0.33 KG |
| Net Weight | 0.28 KG |
| Place of Origin | Germany |
