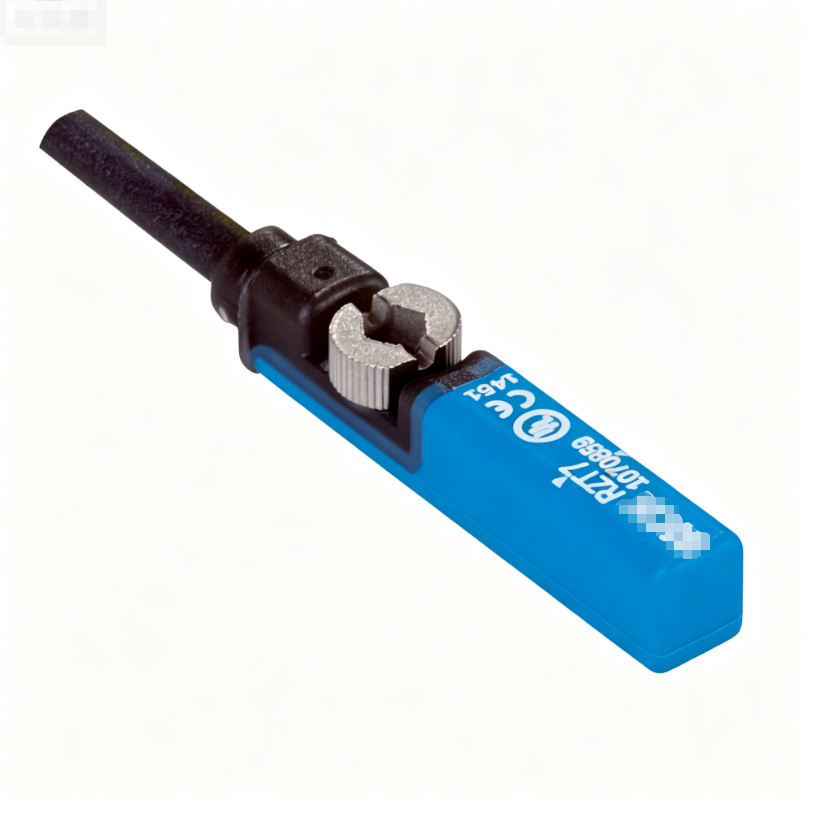

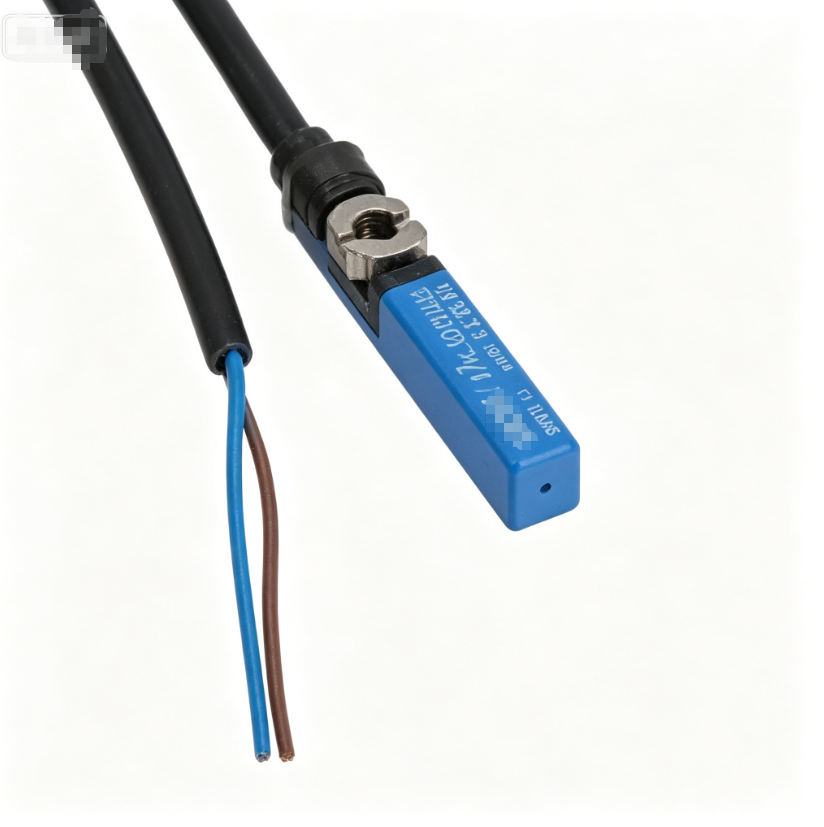

1070861 RZT7-03ZUS-KU0
Product Overview
RZT7-03ZUS-KU0 (Part No.1070861) is a magnetic cylinder sensor based on reed switch technology from SICK RZT7 series. It is T-slot mounting type with housing length of 29.5 mm, designed to detect the piston position of pneumatic cylinders. It features Normally Open 2-wire output, supports wide voltage range of 5~30 V AC/DC, maximum switching power of 6W. Fitted with M12 4-pin male connector, plastic housing with protection class IP65 and IP67. It adopts simple snap-on installation and built-in visual LED indicator for status check. It is widely used for pneumatic cylinder piston position monitoring in automation equipment, conveyor systems and material handling applications. Brand new original SICK cylinder magnetic sensor.
| 属性 | 属性值 |
|---|---|
| Brand | SICK |
| Model Number | RZT7-03ZUS-KU0 |
| Part No. | 1070861 |
| Product Type | Cylinder Magnetic Sensor |
| Series | RZT7 |
| Principle | Magnetic field detection for pneumatic cylinder piston |
| Mounting Type | T-slot mounting, housing length 29.5mm |
| Sensing Technology | Reed switch, typ. 10mm overrun distance |
| Output | NO (Normally Open), AC/DC 2-wire |
| Supply Voltage | 5 ~ 30 V AC/DC |
| Connector | M12 4-pin male connector |
| Protection Class | IP65, IP67 |
| Housing Material | Plastic |
| Switching Frequency | 400 Hz |
| Special Feature | Visual LED indicator, snap-on installation, voltage drop ≤3.5V, max switching power 6W |
| Condition | New Original |
| Application | Pneumatic cylinder piston position detection, automation equipment, conveyor system, material handling |
| Net Weight | 0.024 KG |
| Gross Weight | 0.051 KG |
| Place of Origin | Germany |
| MOQ | 1 Piece |
| Warranty | 12 Months |
