1040765 IME12-04BPSZW2K
Product Overview

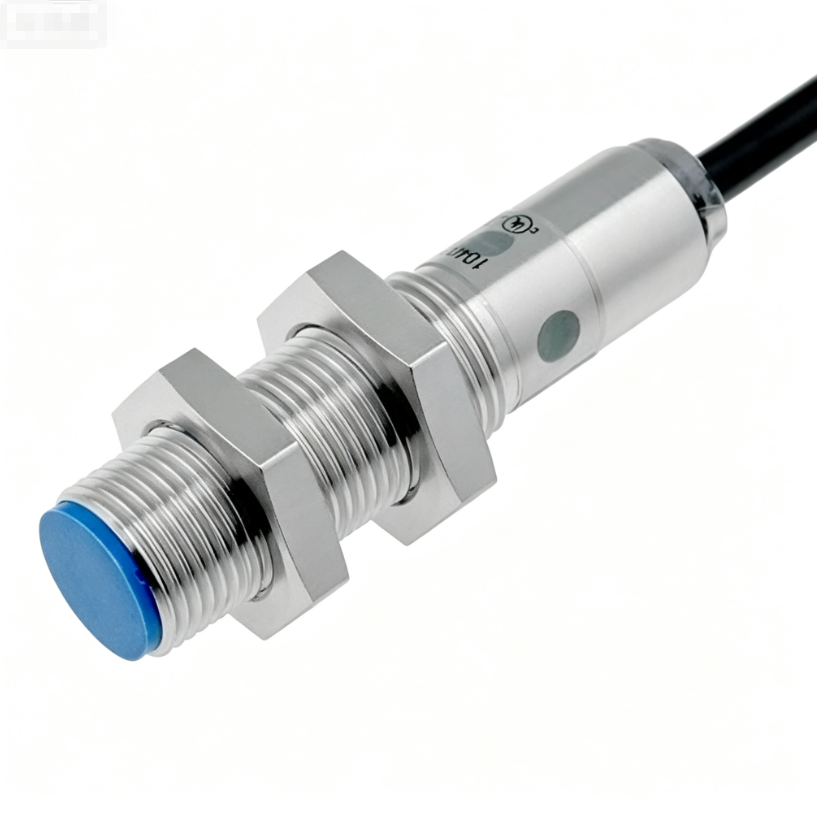

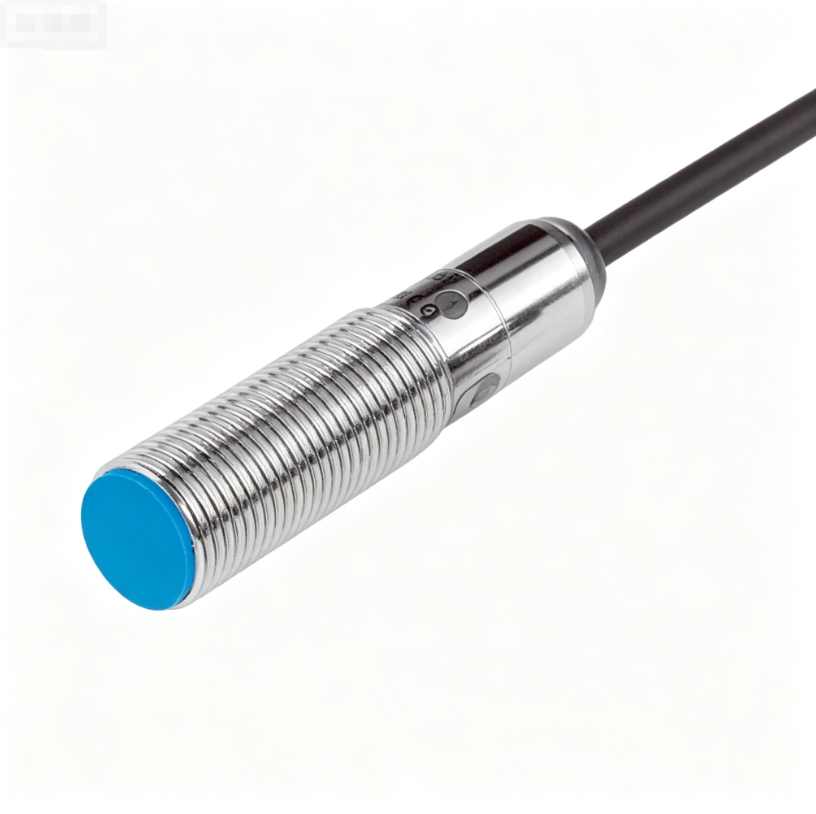

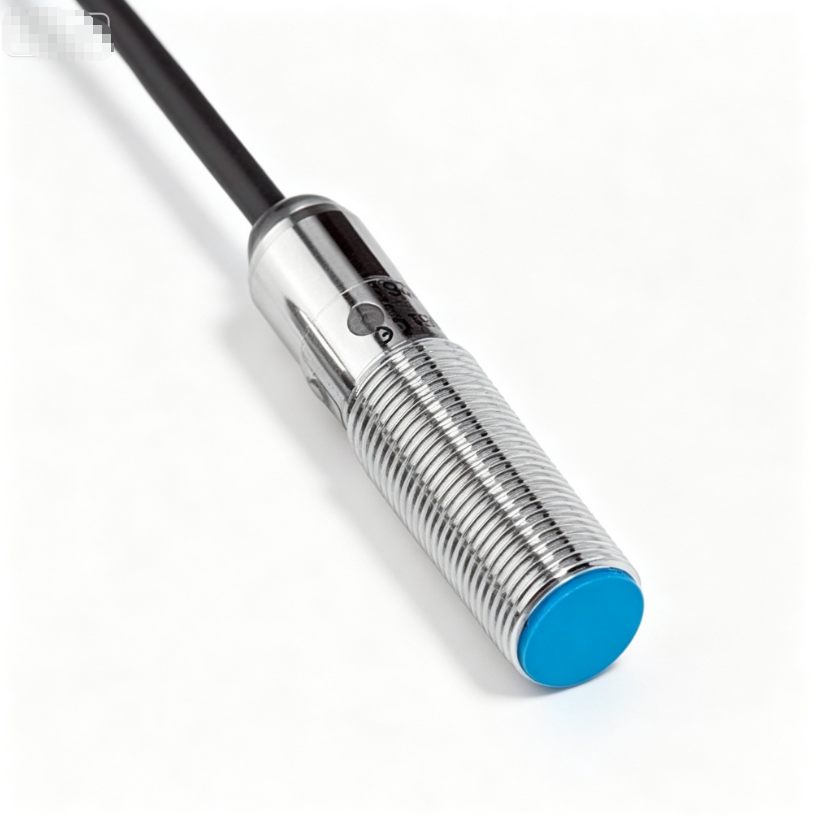

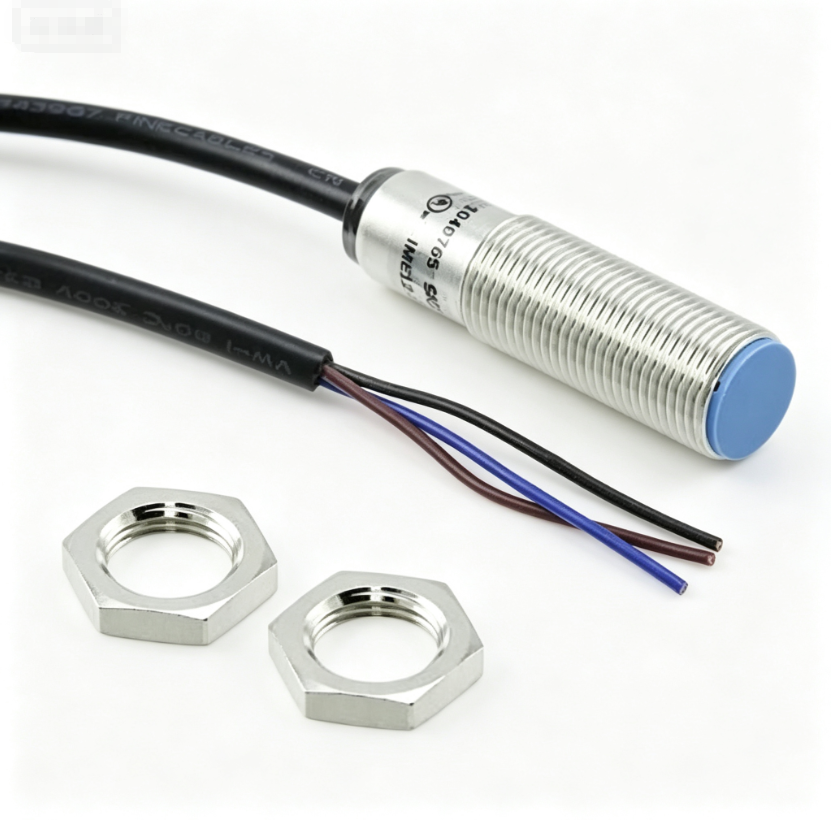

IME12-04BPSZW2K (Part No.1040765) is an inductive proximity sensor of SICK IME12 series. It is Ø12mm M12×1 compact short body, flush mounting type, rated sensing distance Sn=4 mm, safe distance Sa=3.24 mm. Equipped with PNP Normally Open DC 3-wire output, operating voltage DC10~30V, fitted with 2m PVC fixed 3-core cable. The housing is made of nickel-plated brass with IP67 protection class and built-in visual status indicator. It can detect metal objects reliably, widely used for metal workpiece detection on machine tools, conveyor systems and automation machinery. Brand new original SICK inductive proximity sensor.
| 属性 | 属性值 |
|---|---|
| Brand | SICK |
| Model Number | IME12-04BPSZW2K |
| Part No. | 1040765 |
| Product Type | Inductive Proximity Sensor |
| Series | IME12 |
| Detection principle | Inductive metal detection |
| Size | M12×1, Ø12mm, short body |
| Rated sensing distance Sn | 4 mm, flush mounting |
| Safe distance Sa | 3.24 mm |
| Output | PNP NO (Normally Open), DC 3-wire |
| Supply Voltage | DC10 ~ 30 V |
| Connection | 2m PVC fixed cable, 3-core |
| Housing Material | Nickel-plated brass |
| Protection Class | IP67 |
| Switching Frequency | 2000 Hz |
| Special Feature | Flush mounting, visual status indicator, compact short body |
| Condition | New Original |
| Application | Metal workpiece detection, machine tools, conveyor systems, automation machinery |
| Net Weight | 0.042 KG |
| Gross Weight | 0.070 KG |
| Place of Origin | Germany |
| MOQ | 1 Piece |
| Warranty | 12 Months |
