1067400 MZT8-03VPS-KRDS12
Product Overview

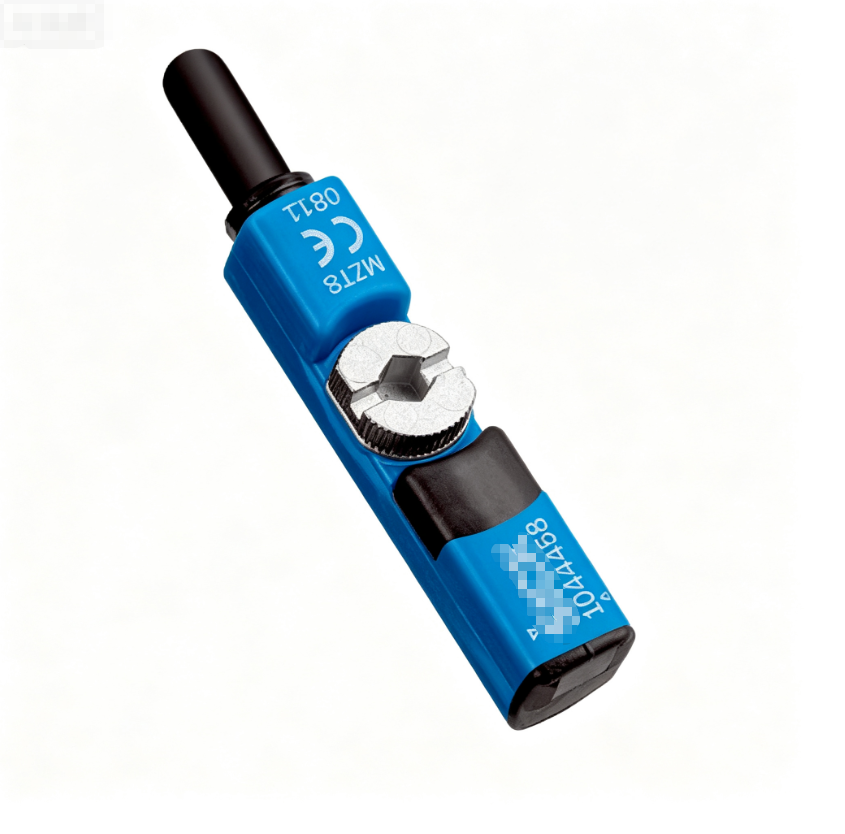

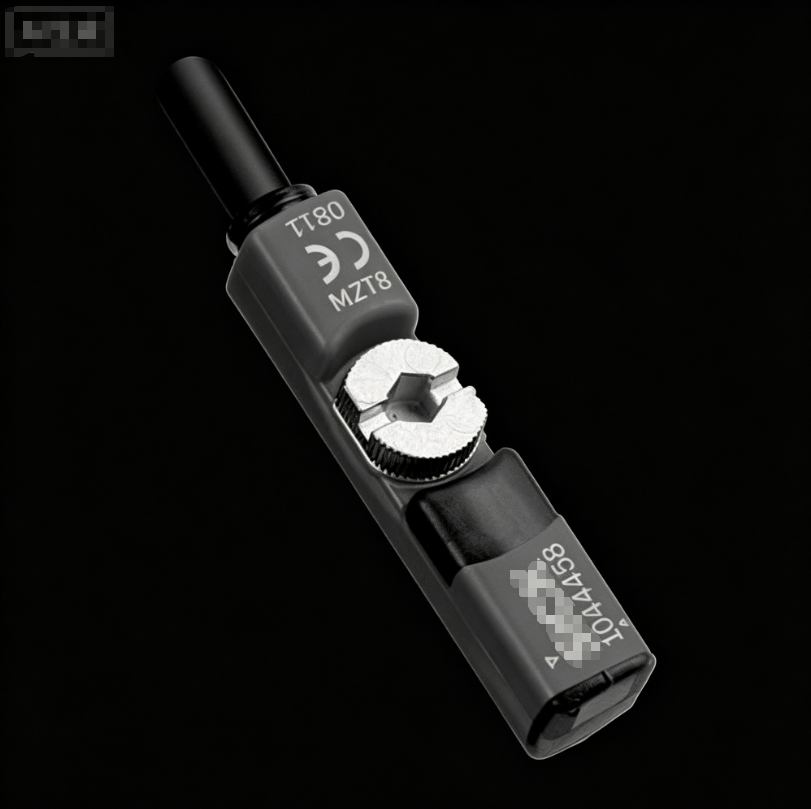

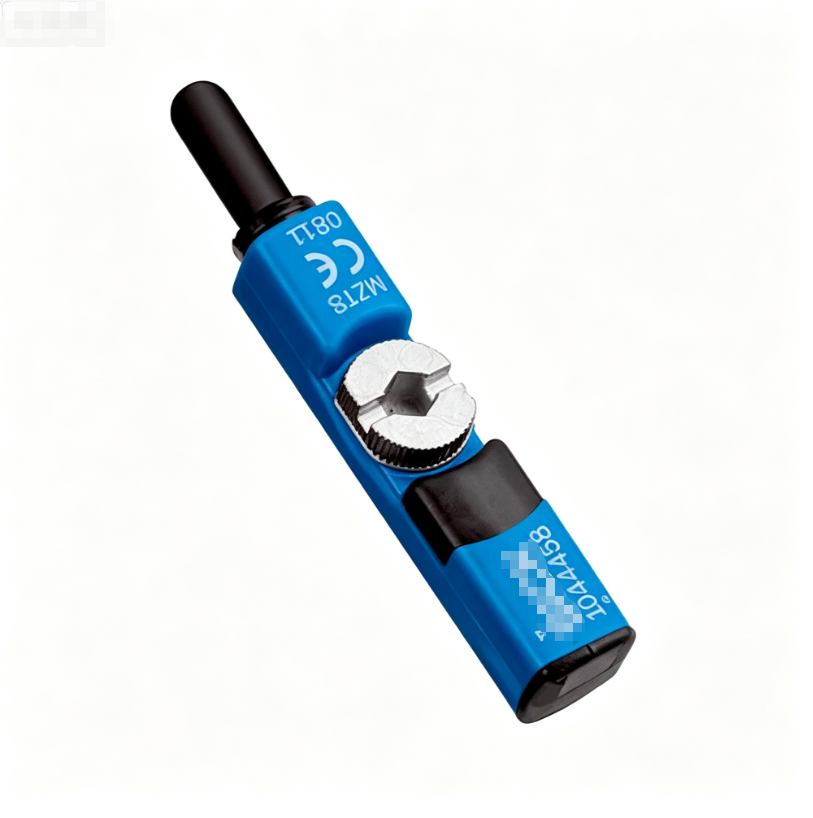

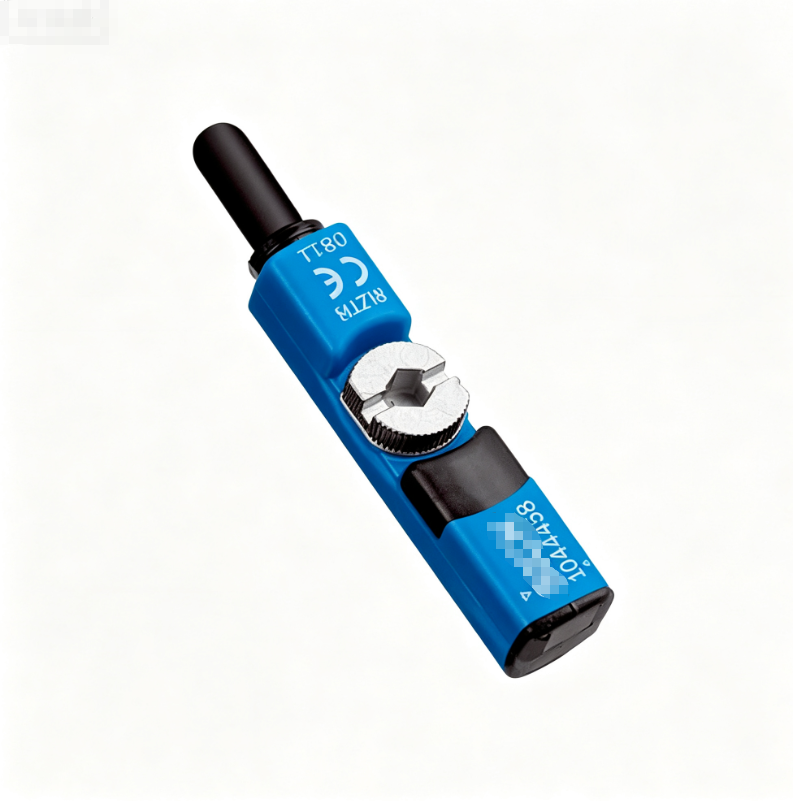

MZT8-03VPS-KRDS12 (Part No.1067400) is a compact magnetic cylinder sensor from SICK MZT8 series. It adopts T-slot mounting design for pneumatic cylinders, detects piston position by magnetic field principle, no adjustment required. It has PNP Normally Open DC 3-wire output, 0.12 m fixed cable fitted with M12 4-pin male connector, operating voltage DC10~30V. Plastic housing with IP67 protection grade. Featuring simple snap-on installation and short cable structure, it is suitable for limited space installation. Brand new original SICK magnetic cylinder sensor.
| 属性 | 属性值 |
|---|---|
| Brand | SICK |
| Model Number | MZT8-03VPS-KRDS12 |
| Part No. | 1067400 |
| Product Type | Cylinder Magnetic Sensor |
| Series | MZT8 |
| Principle | Magnetic field detection for pneumatic cylinder piston |
| Sensing Type | Magnetic cylinder sensor, T-slot mounting |
| Adjustment | No adjustment |
| Output | PNP NO (Normally Open), DC 3-wire |
| Supply Voltage | 10 ~ 30 V DC |
| Cable | 0.12m fixed cable with M12 4-pin male connector |
| Protection Class | IP67 |
| Housing Material | Plastic |
| Switching Frequency | 1000 Hz |
| Special Feature | Compact T-slot design, snap-on installation, short cable version |
| Condition | New Original |
| Application | Pneumatic cylinder piston position detection, automation equipment, conveyor system |
| Net Weight | 0.026 KG |
| Gross Weight | 0.054 KG |
| Place of Origin | Germany |
| MOQ | 1 Piece |
| Warranty | 12 Months |
