GSE6L-P1211

属性项	参数
Brand	SICK
Model	GSE6L-P1211
Order No.	1069107
Product Type	Through-beam Photoelectric Sensor
Sensing Principle	Through-beam (Transmitter + Receiver)
Sensing Range	0 ~ 12 m
Output Type	PNP
Supply Voltage	10~30V DC
Connection	M8 4-pin male connector
Housing Material	ABS Plastic
Protection Grade	IP67
Light Source	Red PinPoint LED
Size	11 × 31.5 × 21 mm
Response Time	≤0.25ms
Max Output Current	100mA
Operating Temp	-25℃ ~ +55℃
Net Weight	0.04kg
Gross Weight	0.07kg
Certifica

INQUIRY

Product Details

Product Tags

Product Overview

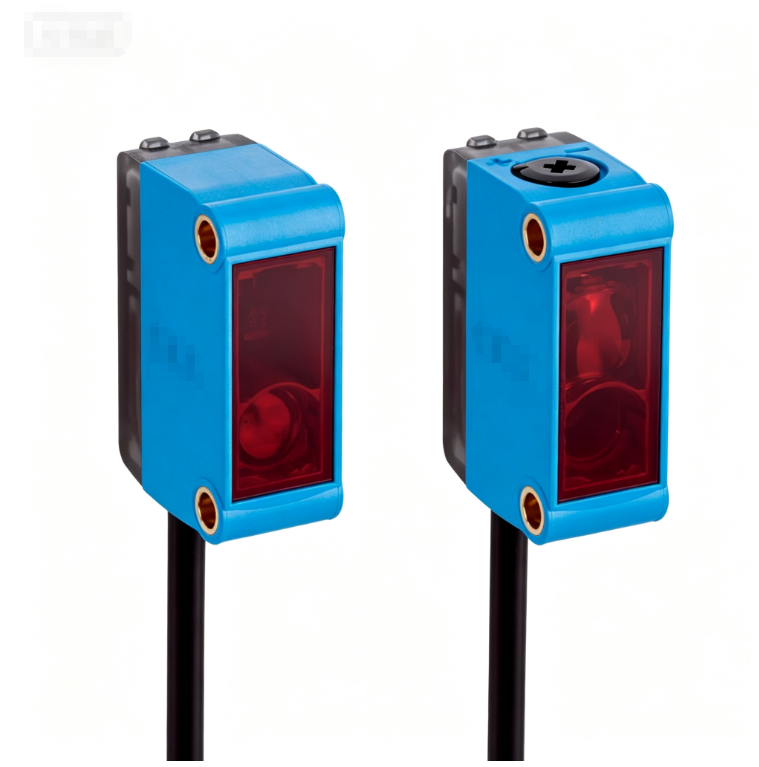

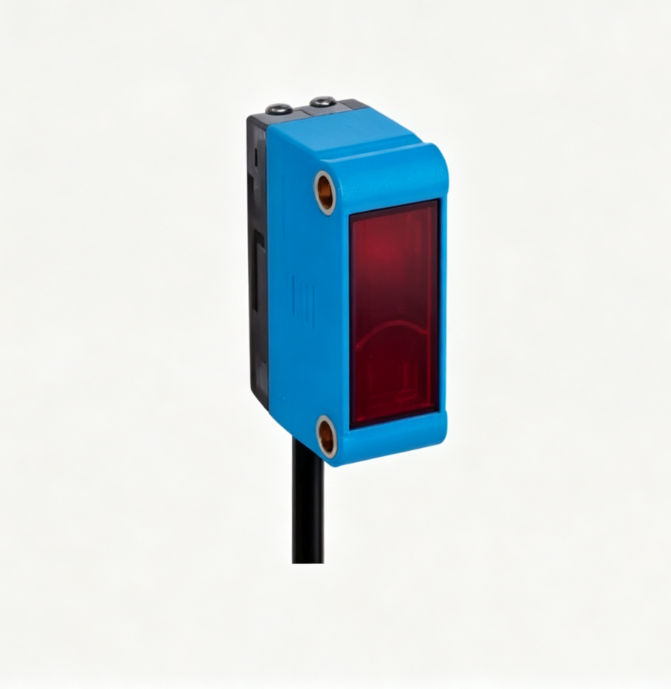

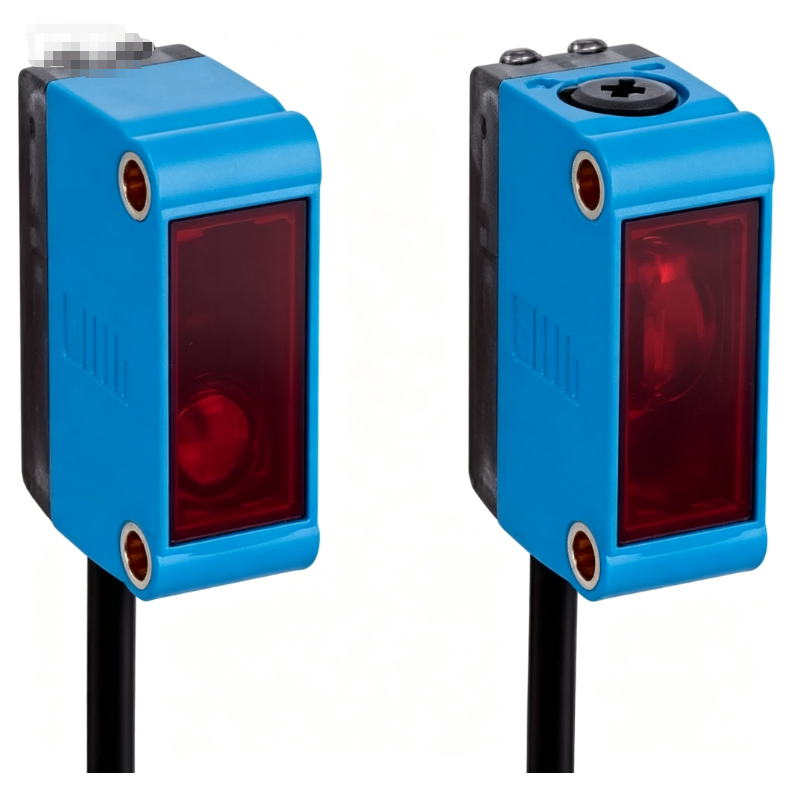

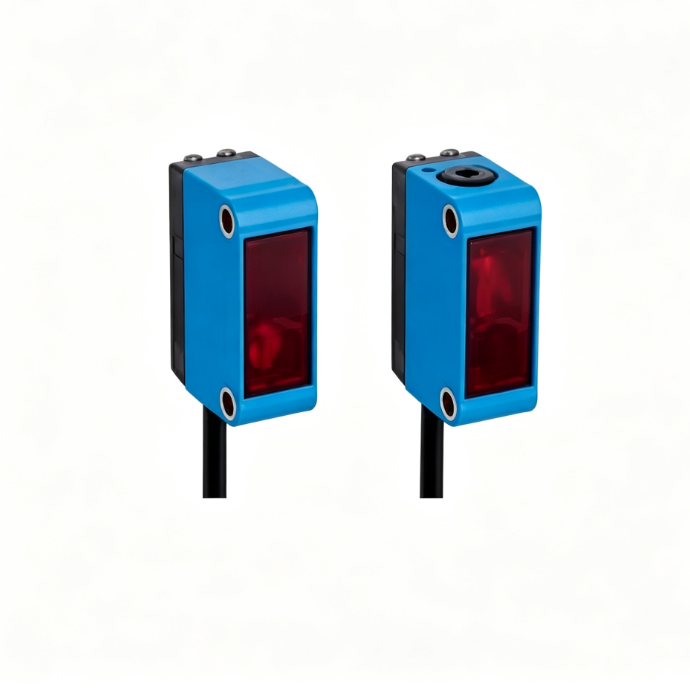

SICK GSE6L-P1211, Order No.1069107 is a compact through-beam photoelectric sensor composed of transmitter and receiver units. It adopts red PinPoint LED light source, delivering stable light spot and reliable detection performance, designed for small object detection within limited installation space.

属性项	参数
Brand	SICK
Model	GSE6L-P1211
Order No.	1069107
Product Type	Through-beam Photoelectric Sensor
Sensing Principle	Through-beam (Transmitter + Receiver)
Sensing Range	0 ~ 12 m
Output Type	PNP
Supply Voltage	10~30V DC
Connection	M8 4-pin male connector
Housing Material	ABS Plastic
Protection Grade	IP67
Light Source	Red PinPoint LED
Size	11 × 31.5 × 21 mm
Response Time	≤0.25ms
Max Output Current	100mA
Operating Temp	-25℃ ~ +55℃
Net Weight	0.04kg
Gross Weight	0.07kg
Certification	CE
Condition	New Original
Application	Factory Automation, Conveyor, Packaging Machine, Small object detection
