LFV200-XXSGATPV
Product Overview

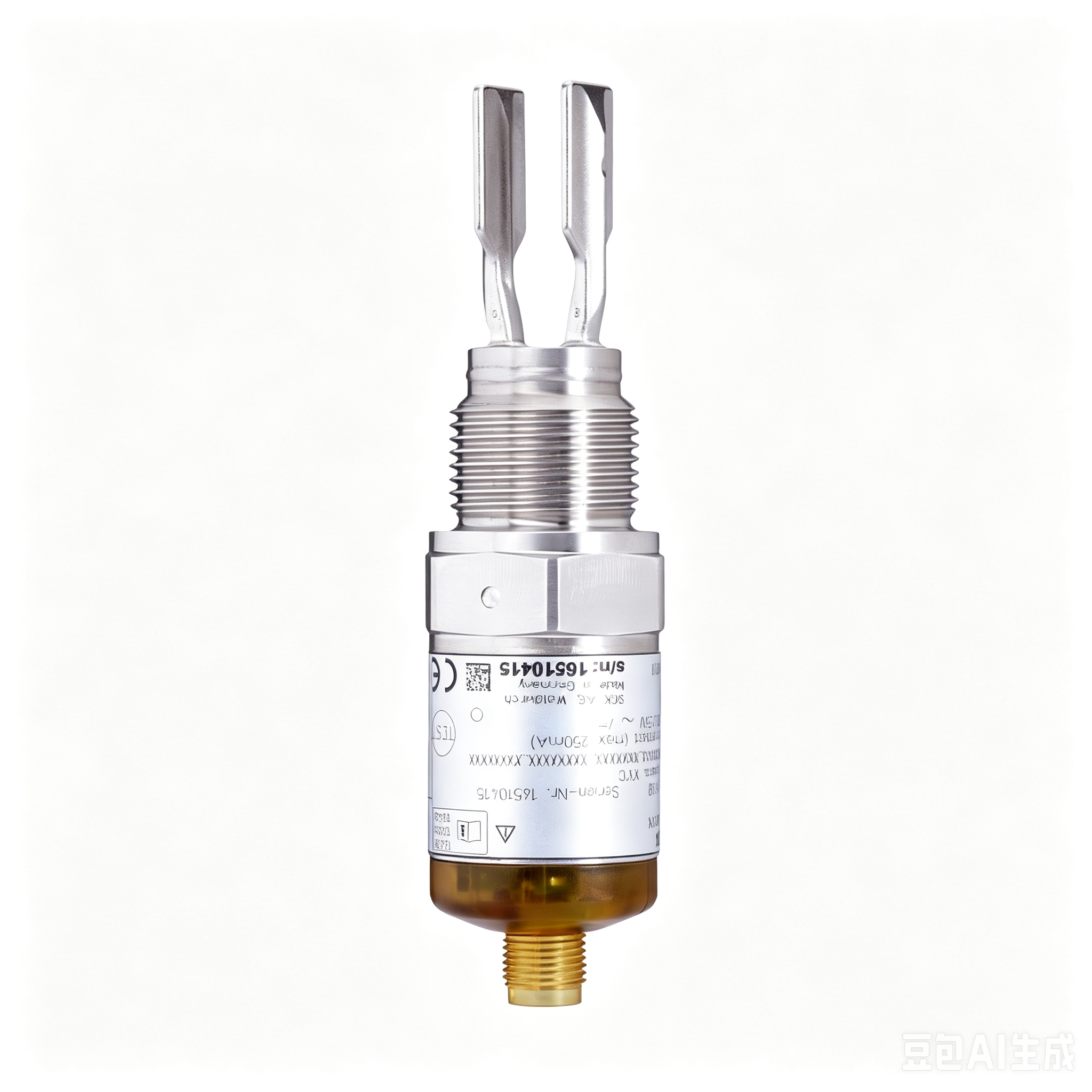

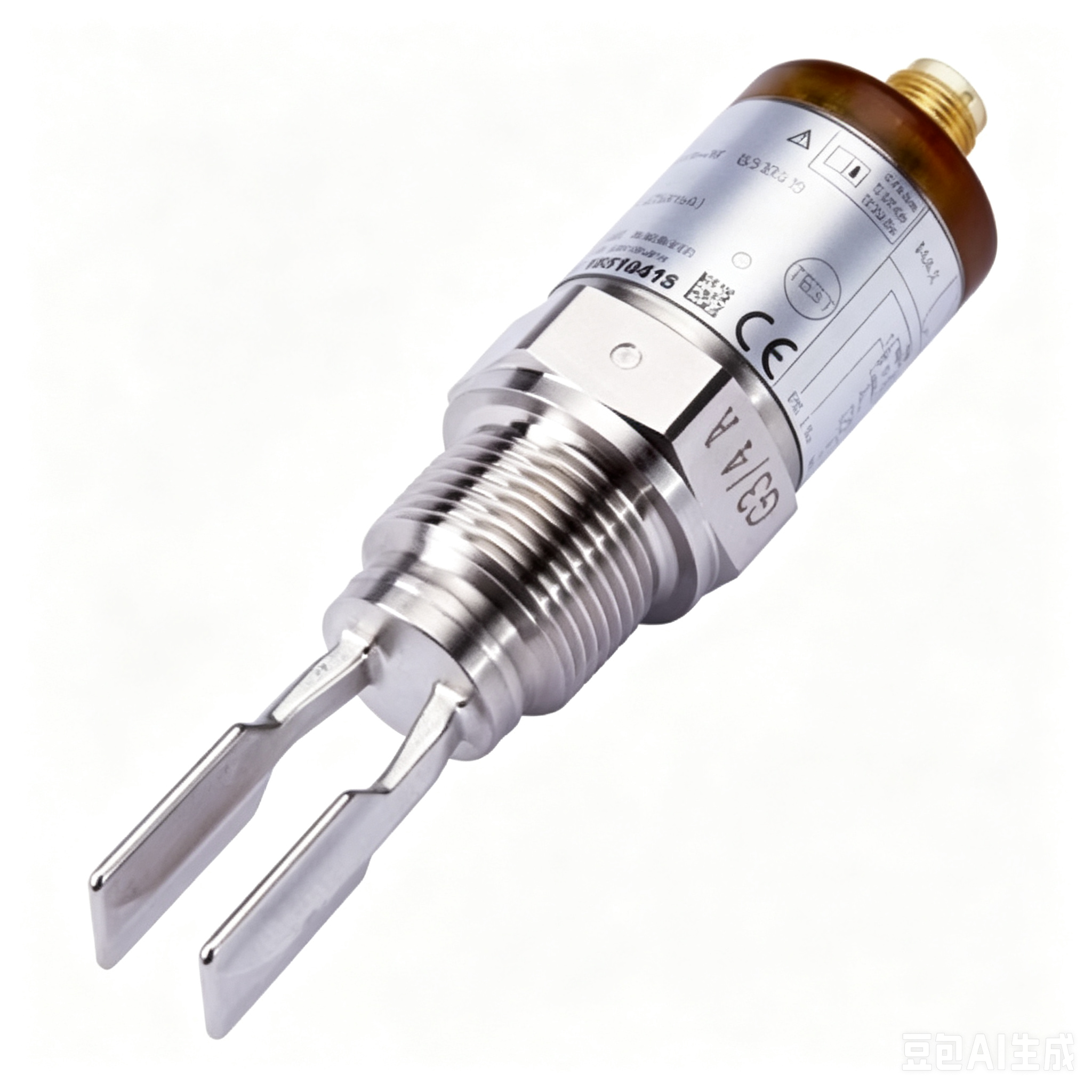

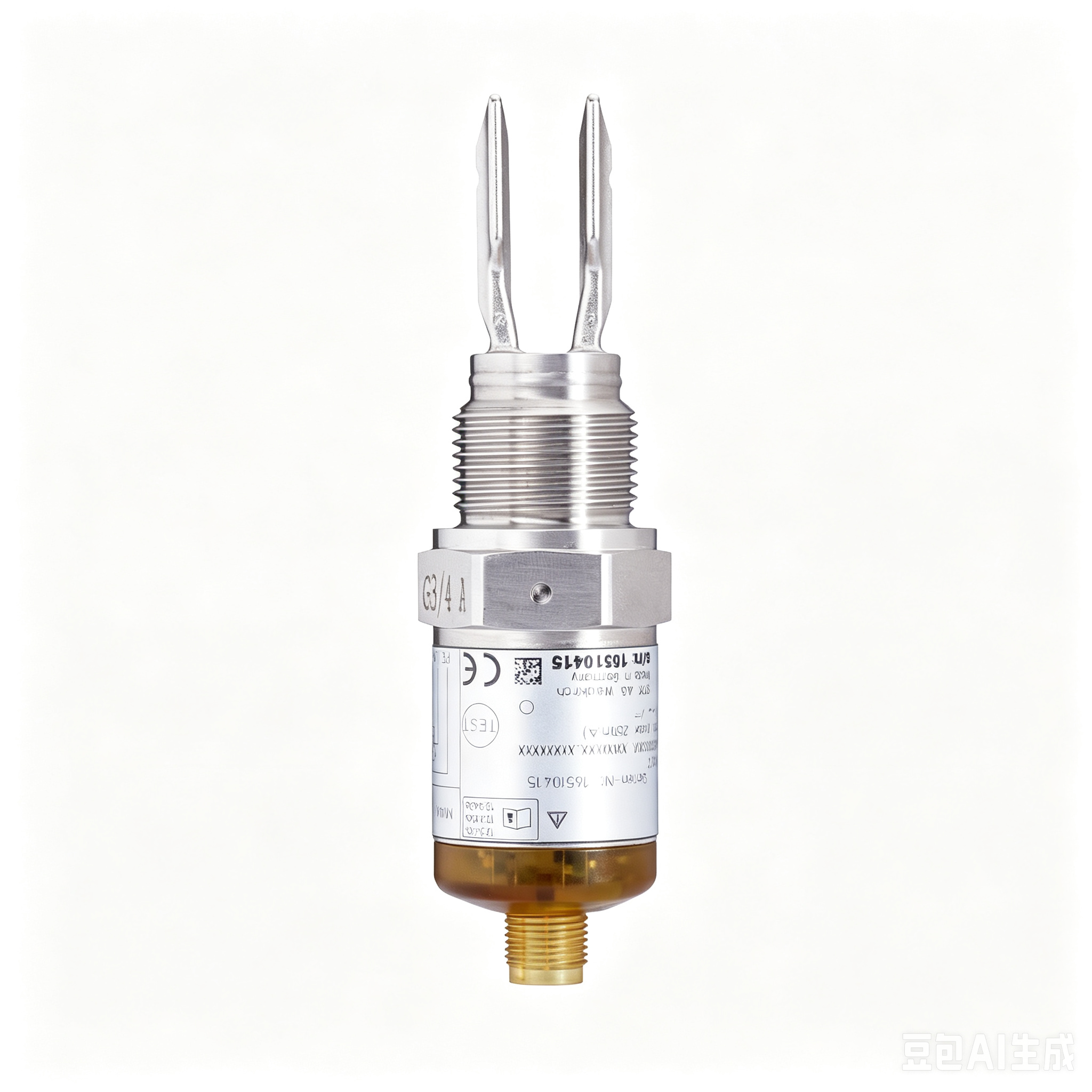

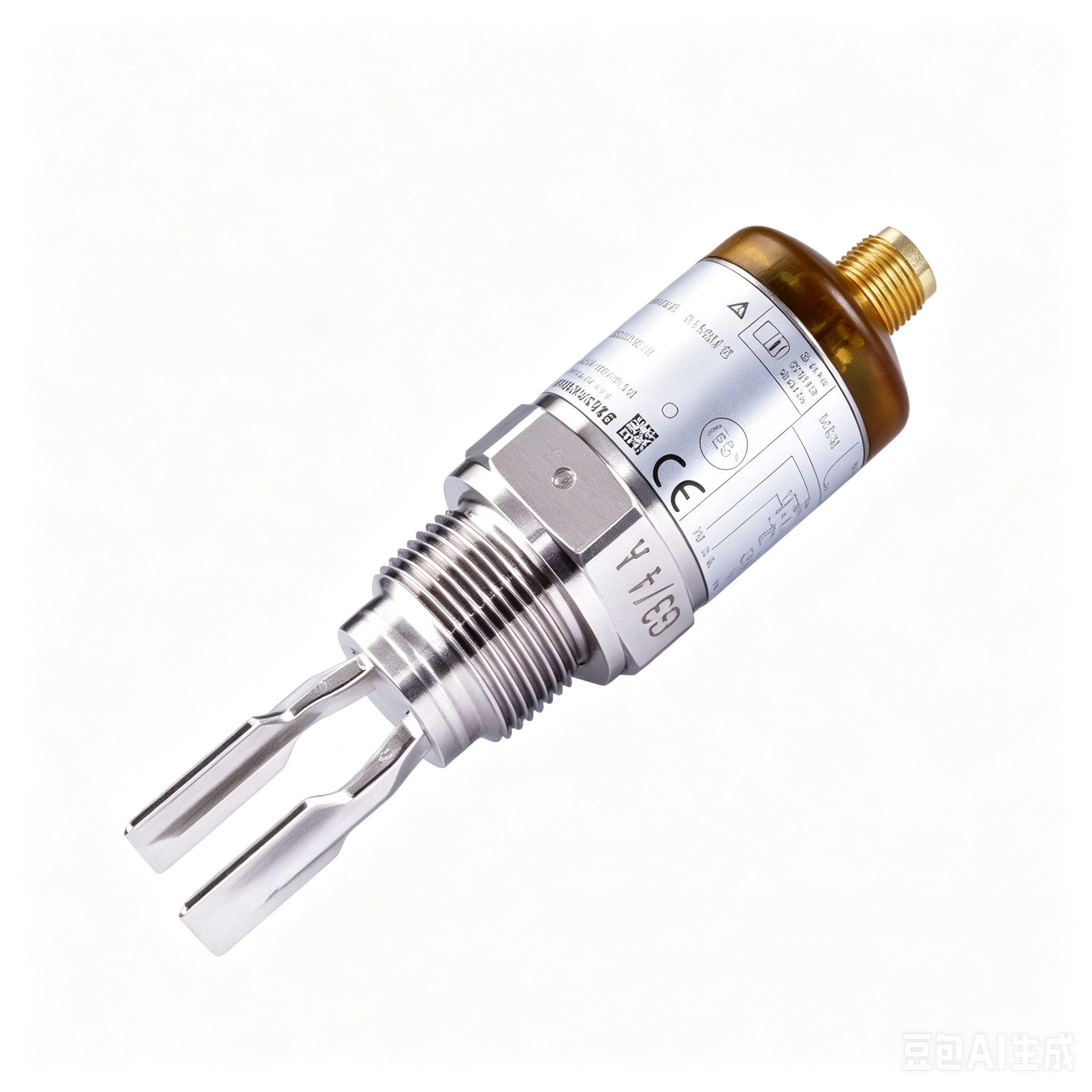

LFV200-XXSGATPV is SICK vibrating tuning fork level switch, used for point liquid level detection. It has a 67mm tuning fork probe with G3/4 A process connection. Wetted parts adopt 1.4404(316L) stainless steel and PEEK material. It provides PNP transistor output, supply voltage 9.6~35 V DC, max output current 250 mA. It can work under pressure -1 bar ~ +64 bar and temperature -40℃~+100℃, applicable for medium density 0.7~2.5 g/cm³ and viscosity 0.1~10000 mPas. IP67 protection rating, anti-crystallization design, with WHG and CE certifications, widely used for high/low liquid level alarm of industrial tanks.
| 属性名称 | 属性值 |
|---|---|
| Brand | SICK |
| Model | LFV200-XXSGATPV |
| Order No. | LFV200-XXSGATPV |
| Product Type | Vibrating Fork Level Switch |
| Sensing Principle | Tuning fork vibration |
| Connector Type | M12 Straight, 4 Pin |
| Pin | 4 Pin |
| Probe Length | 67 mm |
| Process Connection | G3/4 A |
| Wetted Material | 1.4404(316L) stainless steel, PEEK |
| Output Signal | PNP transistor output |
| Supply Voltage | 9.6~35 V DC |
| Max Output Current | 250 mA |
| Working Pressure | -1 bar ~ +64 bar |
| Operating Temperature | -40℃~+100℃ |
| Measuring Density | 0.7~2.5 g/cm³ |
| Viscosity Range | 0.1~10000 mPas |
| Protection | IP67 |
| Feature | High repeatability, compact fork, anti-crystallization |
| Certification | CE, WHG |
| Condition | New Original |
| MOQ | 1 Piece |
| Gross Weight | 0.32 KG |
| Net Weight | 0.27 KG |
| Origin | Germany |
