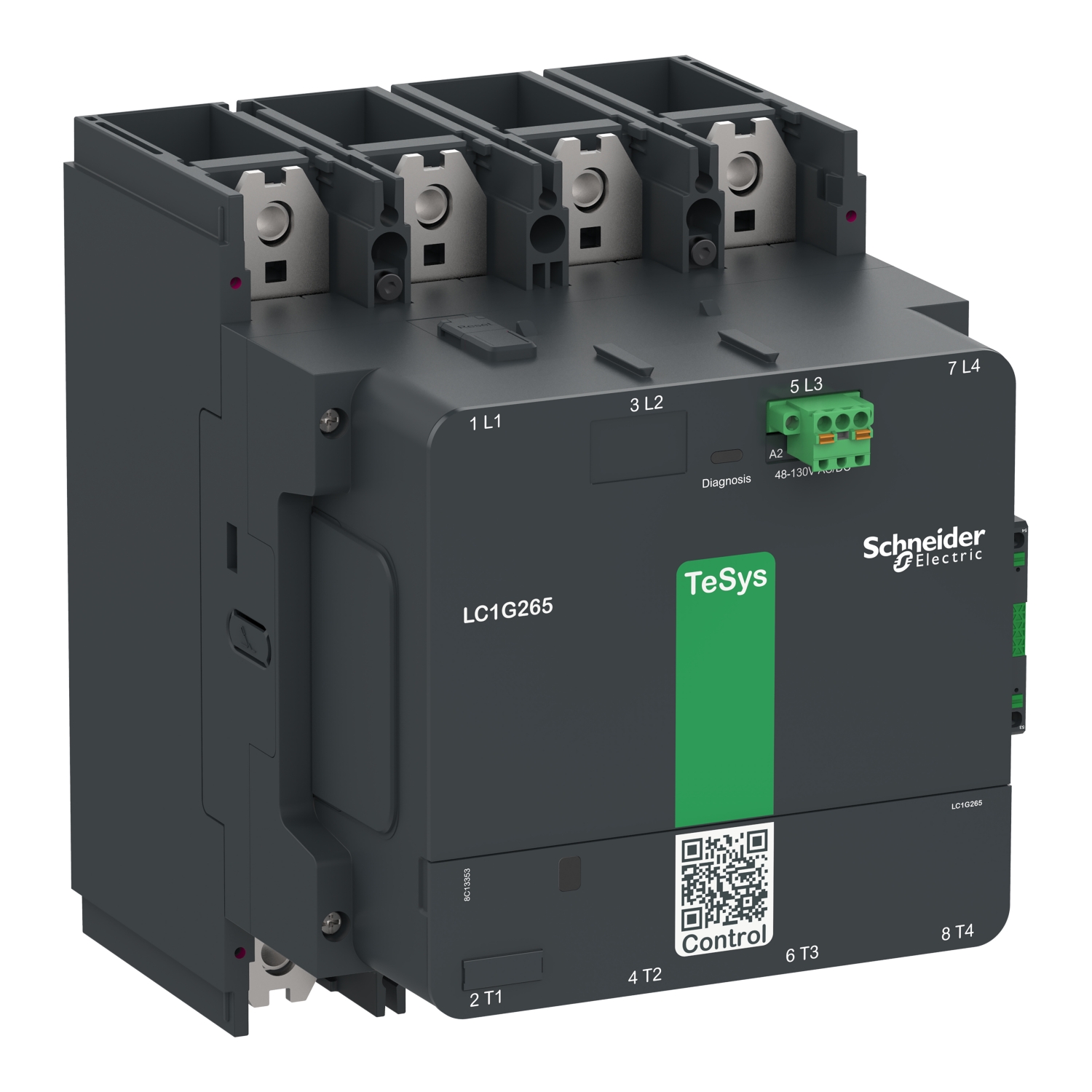

LC1G2654LSEN
| Range | TeSys |
|---|---|
| Range of Product | TeSys Giga |
| Product or Component Type | Contactor |
| Device short name | LC1G |
| Contactor application | Power switching |
| Utilisation category | AC-3 AC-3e AC-1 AC-5a AC-5b AC-6a AC-6b DC-1 DC-3 DC-5 |
| Poles description | 4P |
| [Ue] rated operational voltage | <= 1000 V AC 50/60 Hz <= 460 V DC |
| [Ie] rated operational current | 265 A (at <140 °F (60 °C)) at <= 440 V AC-3 385 A (at <104 °F (40 °C)) at <= 1000 V AC-1 |
| [Uc] control circuit voltage | 200...500 V AC 50/60 Hz 200...500 V DC |
| Control circuit voltage limits | Operational: 0.8 Uc Min...1.1 Uc Max (at <140 °F (60 °C)) Drop-out: 0.1 Uc Max...0.45 Uc Min (at <140 °F (60 °C)) |
[Uimp] rated impulse withstand voltage 8 kV Overvoltage category III [Ith] conventional free air thermal current 385 A (at 104 °F (40 °C)) Rated breaking capacity 2380 A at 440 V [Icw] rated short-time withstand current 2.2 kA - 10 s
1.23 kA - 30 s
0.95 kA - 1 min
0.62 kA - 3 min
0.48 kA - 10 minAssociated fuse rating 315 A aM at <= 440 V for motor
250 A aM at <= 690 V for motor
400 A gG at <= 690 V
450 A UL Type J at <= 600 VAverage impedance 0.000144 Ohm [Ui] rated insulation voltage 1000 V Power dissipation per pole 20 W AC-1 - Ith 385 A
11 W AC-3 - Ith 265 ACompatibility code LC1G Pole contact composition 4 NO Auxiliary contact composition 1 NO + 1 NC Irms rated making capacity 3320 A at 440 V Coil technology Built-in bidirectional peak limiting Safety reliability level B10d = 400000 cycles contactor with nominal load EN/ISO 13849-1
B10d = 3000000 cycles contactor with mechanical load EN/ISO 13849-1Mechanical durability 8 Mcycles inrush power in VA (50/60 Hz, AC) 530 VA inrush power in W (DC) 300 W hold-in power consumption in VA (50/60 Hz, AC) 16.1 VA hold-in power consumption in W (DC) 9 W Operating time 40...70 ms closing
15...50 ms openingMaximum operating rate 600 cyc/h AC-3
600 cyc/h AC-3e
300 cyc/h AC-1Connections - terminals Power circuit: bar 2 - busbar cross section: 32 x 10 mm
Power circuit: lugs-ring terminals 1 0.3 in² (185 mm²)
Control circuit: push-in 1 0.0003…0.004 in² (0.2…2.5 mm²) - cable stiffness: solid stranded without cable end
Control circuit: push-in 1 0.0004…0.004 in² (0.25…2.5 mm²) - cable stiffness: flexible with cable end
Control circuit: push-in 2 0.0008…0.002 in² (0.5…1.0 mm²) with cable end
Control circuit: push-in 0.001…0.004 in² (0.75…2.5 mm²) - cable stiffness: solid stranded without cable end
Control circuit: push-in 0.001…0.004 in² (0.75…2.5 mm²) - cable stiffness: flexible with cable endConnection pitch 1.8 in (45 mm) Mounting Support Plate Standards EN/IEC 60947-4-1
EN/IEC 60947-5-1
UL 60947-4-1
CSA C22.2 No 60947-4-1
JIS C8201-4-1
JIS C8201-5-1
UL 60335-1
UL 60335-2-40:Annex JJProduct Certifications CB Scheme
CCC
cULus
EAC
CE
UKCA
EU-RO-MR by DNV-GLTightening torque 309.8 lbf.in (35 N.m) Height 8.9 in (225 mm) Width 7.3 in (185 mm) Depth 8.9 in (226 mm) Net Weight 18.3 lb(US) (8.3 kg)
