MS4-LFR-1/4-D7-ERM-AS
Product Overview

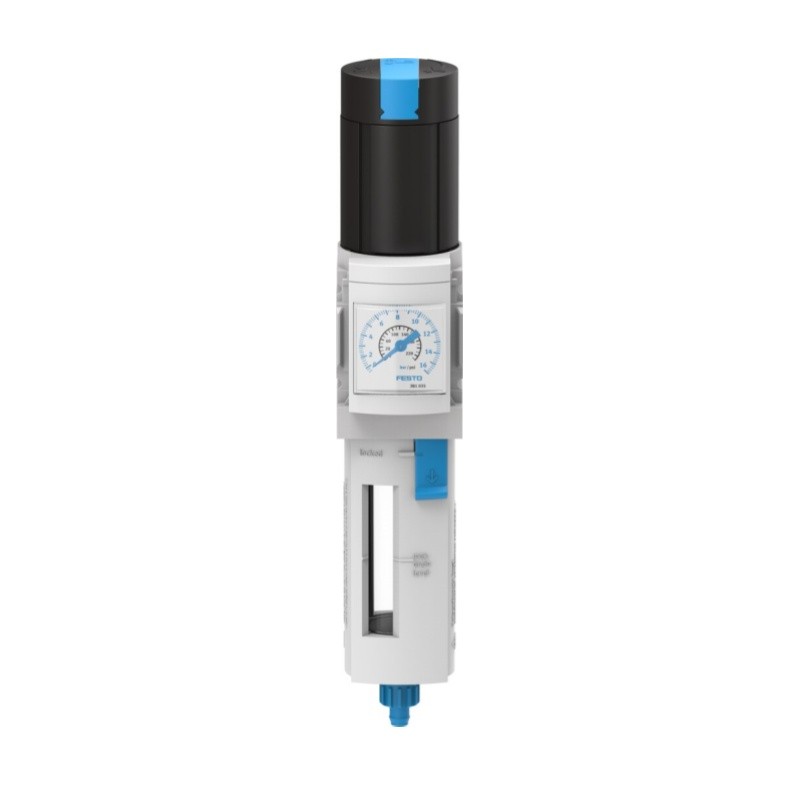

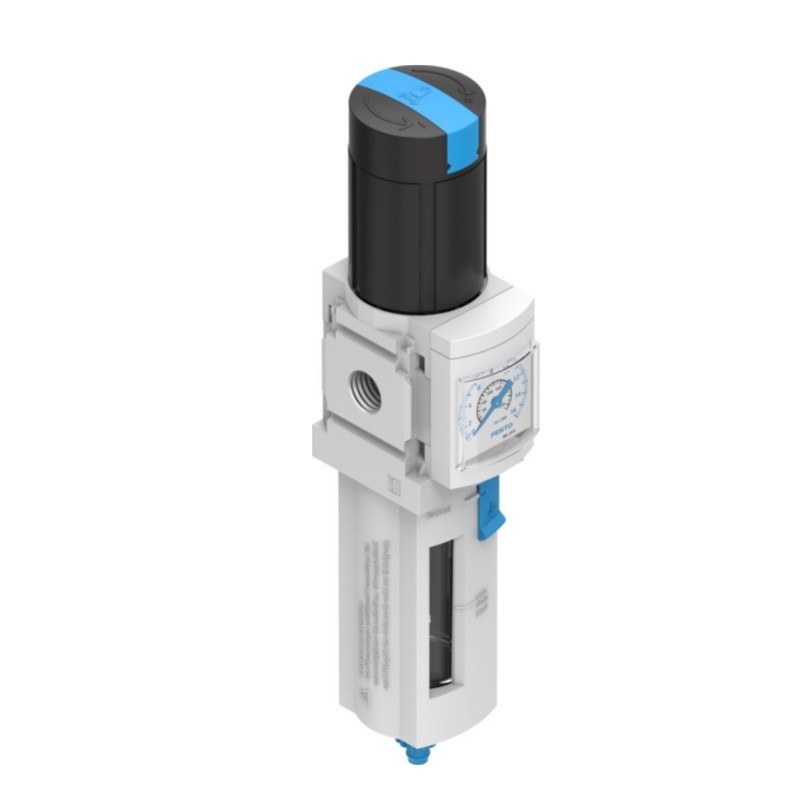

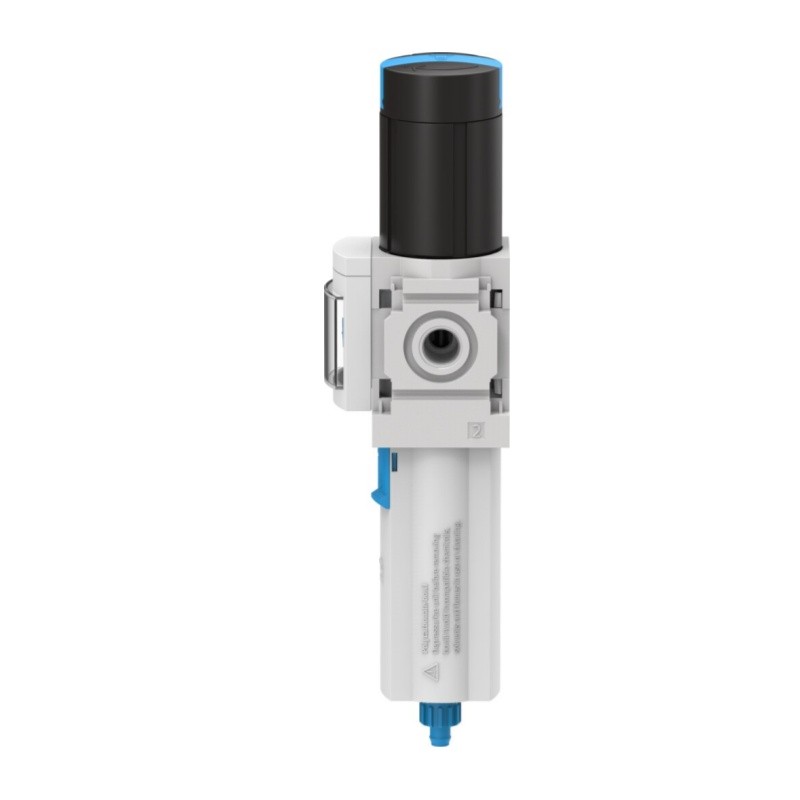

Festo MS4-LFR-1/4-D7-ERM-AS (Part No.529156) is MS4 series modular filter regulator combining air filtration and pressure regulation in one unit. It separates condensate and solid particles, stabilizes outlet air pressure, built-in pressure gauge for real-time pressure monitoring, widely used as core component of compressed air service unit for industrial pneumatic circuits.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | MS4-LFR-1/4-D7-ERM-AS |
| Part Number | 529156 |
| Product Type | Filter Regulator |
| Series | MS4 Series |
| Pneumatic Port | G1/4 (Inlet & Outlet) |
| Nominal Flow | 1500 l/min |
| Operating Pressure | 0.8 ~ 14 bar |
| Pressure Regulation Range | 0.5 ~ 12 bar |
| Max Pressure Hysteresis | 0.25 bar |
| Filtration Grade | 40 µm |
| Condensate Drain | Manual rotary drain |
| Max Condensate Volume | 19 ml |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4], inert gas |
| Ambient Temperature | -10 ~ +60 ℃ |
| Medium Temperature | -10 ~ +60 ℃ |
| Mounting Position | Vertical ±5° |
| Function | Secondary exhaust / return flow function |
| Adjustment Knob | Rotary knob, lockable with accessory |
| Equipped | Integrated pressure gauge, plastic bowl guard |
| Housing Material | Die-cast aluminium |
| Bowl Material | PC |
| Filter Element | PE |
| Seal Material | NBR |
| Weight | 275 g |
| CRC Class | CRC 2 |
| LABS(PWIS) | VDMA24364-B1/B2-L |
| Certification | CE, UKCA |
| RoHS | Compliant |
| Original/New | New Original |
