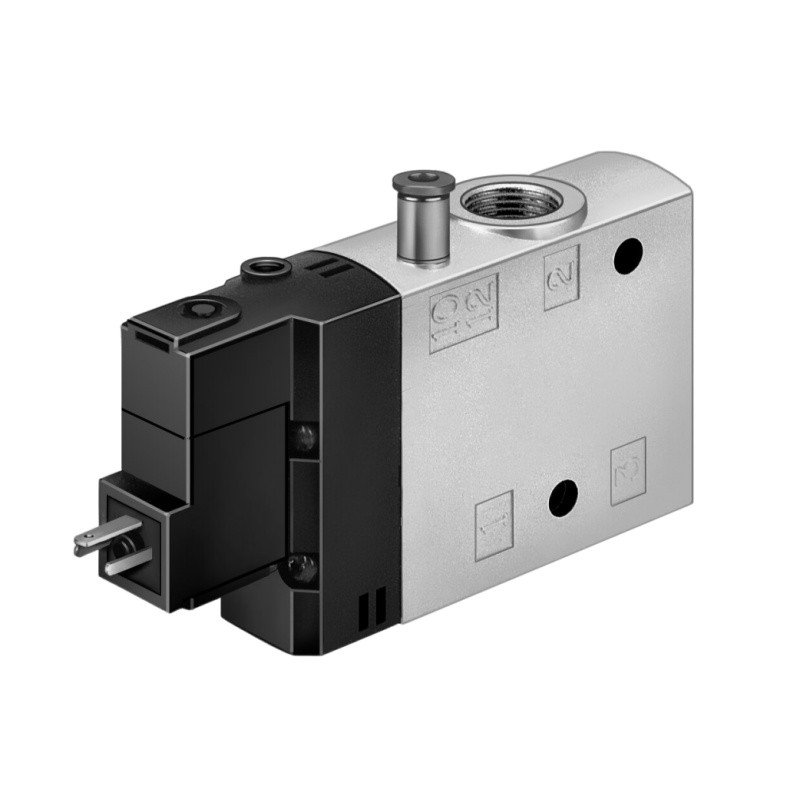

CPE24-M1H-3GLS-3/8
Product Overview
Festo CPE24-M1H-3GLS-3/8 (Part No.163169) is CPE24 series high-flow 3/2-way normally closed monostable pilot operated solenoid valve. Adopts piston gate valve soft seal design, large flow up to 2500 l/min, G3/8 thread port, external pilot air supply. Compact high-performance solenoid valve for heavy-duty pneumatic control in automation machines.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | CPE24-M1H-3GLS-3/8 |
| Part Number | 163169 |
| Product Type | Solenoid Valve |
| Series | CPE24 Series |
| Valve Function | 3/2-way, closed, monostable |
| Valve Width | 24 mm |
| Nominal Size | 11 mm |
| Rated Flow | 2500 l/min |
| Operating Voltage | 24V DC |
| Operating Pressure | -0.9 ~ 10 bar |
| Pneumatic Port | G3/8 |
| Control Type | Pilot operated |
| Pilot Air Supply | External pilot air |
| Reset Type | Pneumatic spring |
| Sealing Type | Soft seal, piston gate valve |
| Manual Override | Non-detenting, detenting via accessory |
| Protection Class | IP65 (with plug socket) |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Ambient Temperature | -5 ~ +50 ℃ |
| Medium Temperature | -5 ~ +50 ℃ |
| Switch ON Time | 50 ms |
| Switch OFF Time | 33 ms |
| Housing Material | Die-cast aluminum alloy |
| Seal Material | NBR |
| Mounting | Any mounting position |
| CRC Class | CRC 2 |
| LABS(PWIS) | VDMA24364-B1/B2-L |
| Certification | cULus Recognized, CE, UKCA |
| RoHS | Compliant |
| Original/New | New Original |
