HGL-1/4-B

HGL-1/4-B
属性名称	属性值
Brand	Festo
Model	HGL-1/4-B
Part Number	530031
Product Type	Piloted Check Valve / Piloted Non-Return Valve
Series	HGL Series
Port 1	G1/4
Port 2	G1/4
Pilot Port 21	G1/8
Nominal Flow 1→2	680 l/min
Operating Pressure	0.5 ~ 10 bar
Pilot Pressure	2 ~ 10 bar
Medium	Compressed air ISO 8573-1:2010 [7:4:4]
Ambient Temperature	-10 ~ +60 ℃
Medium Temperature	-10 ~ +60 ℃
Mounting Type	Screw-in with male thread
Mounting Position	Any mounting position
Valve Function	Piloted non-retur

Product Details

Product Tags

Product Overview

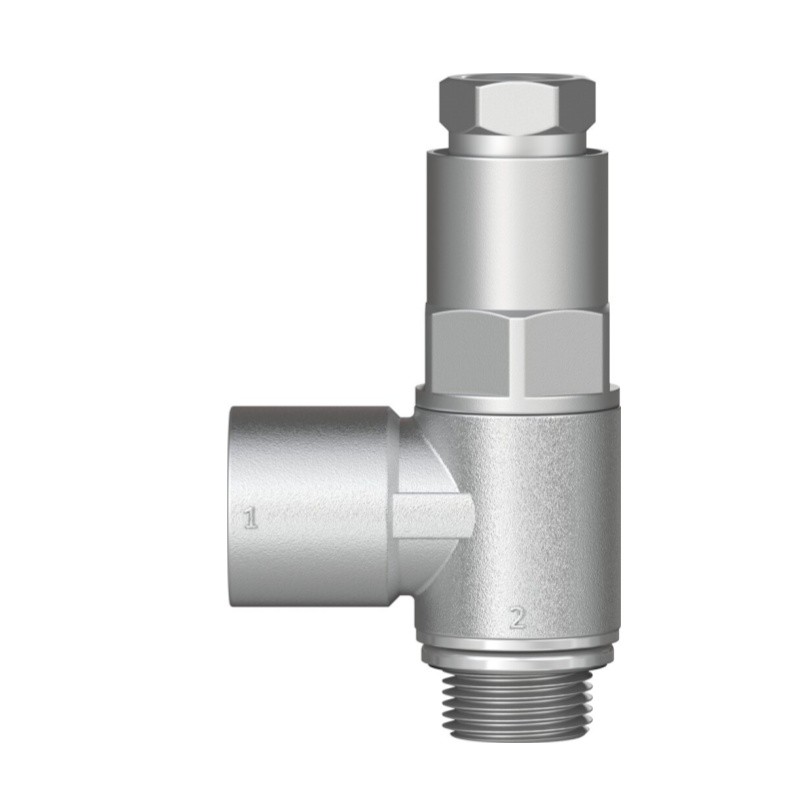

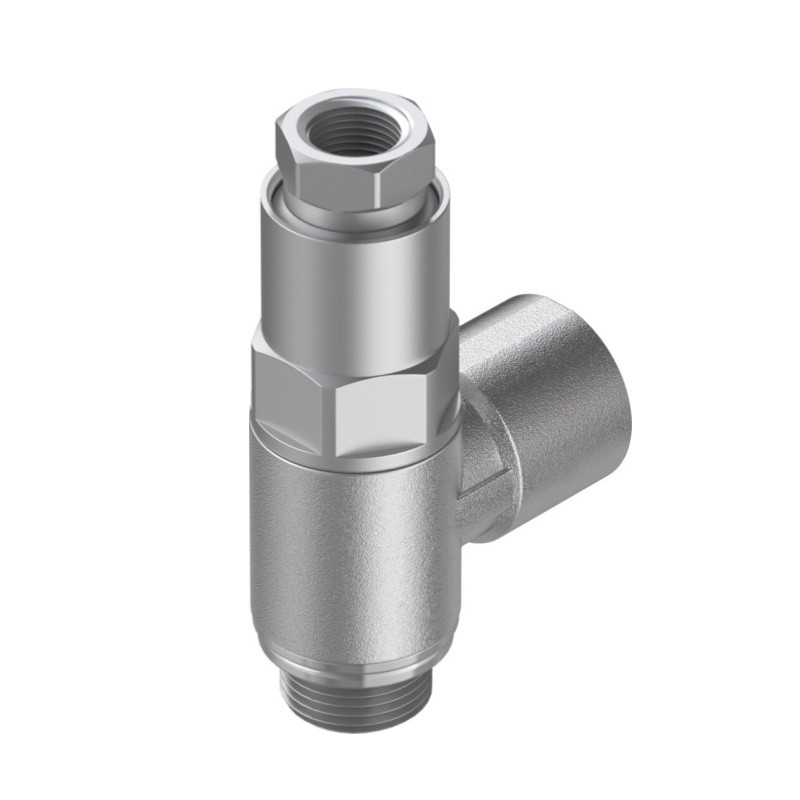

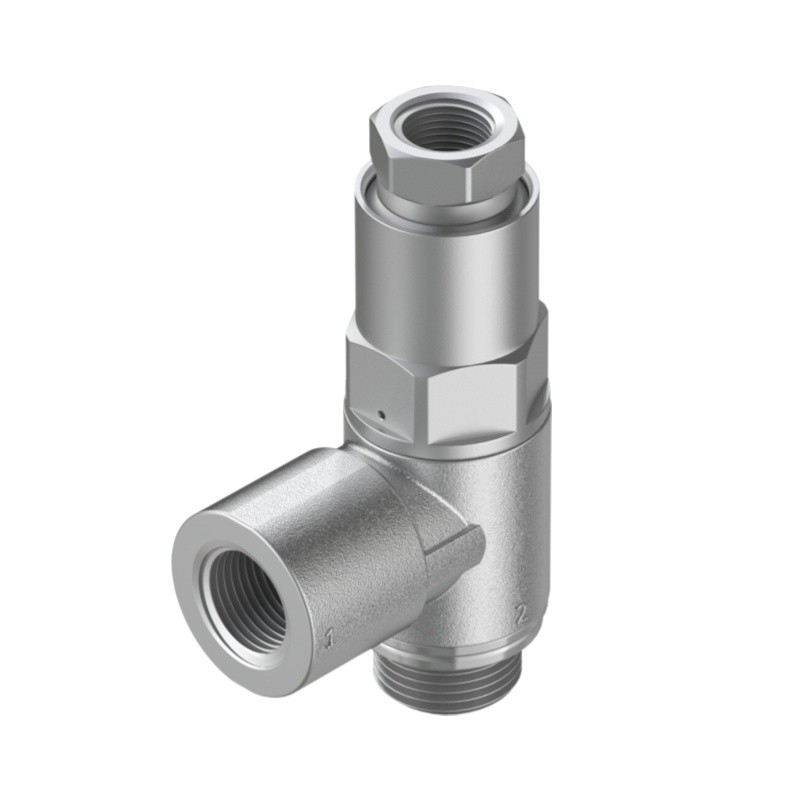

Festo HGL-1/4-B (Part No.530031) is HGL series piloted non-return valve, also known as cylinder holding valve. It locks the air circuit and keeps the cylinder position steady when there is no pilot signal, widely used for cylinder holding, positioning and braking in pneumatic automation systems.

属性名称属性值
BrandFesto
ModelHGL-1/4-B
Part Number530031
Product TypePiloted Check Valve / Piloted Non-Return Valve
SeriesHGL Series
Port 1G1/4
Port 2G1/4
Pilot Port 21G1/8
Nominal Flow 1→2680 l/min
Operating Pressure0.5 ~ 10 bar
Pilot Pressure2 ~ 10 bar
MediumCompressed air ISO 8573-1:2010 [7:4:4]
Ambient Temperature-10 ~ +60 ℃
Medium Temperature-10 ~ +60 ℃
Mounting TypeScrew-in with male thread
Mounting PositionAny mounting position
Valve FunctionPiloted non-return, lockable check function
Housing MaterialDie-cast aluminium
Seal MaterialNBR
Weight41.2 g
CRC ClassCRC 2
LABS(PWIS)VDMA24364-B1/B2-L
CertificationCE, UKCA
RoHSCompliant
Original/NewNew Original
