LFX-D-MINI
Product Overview

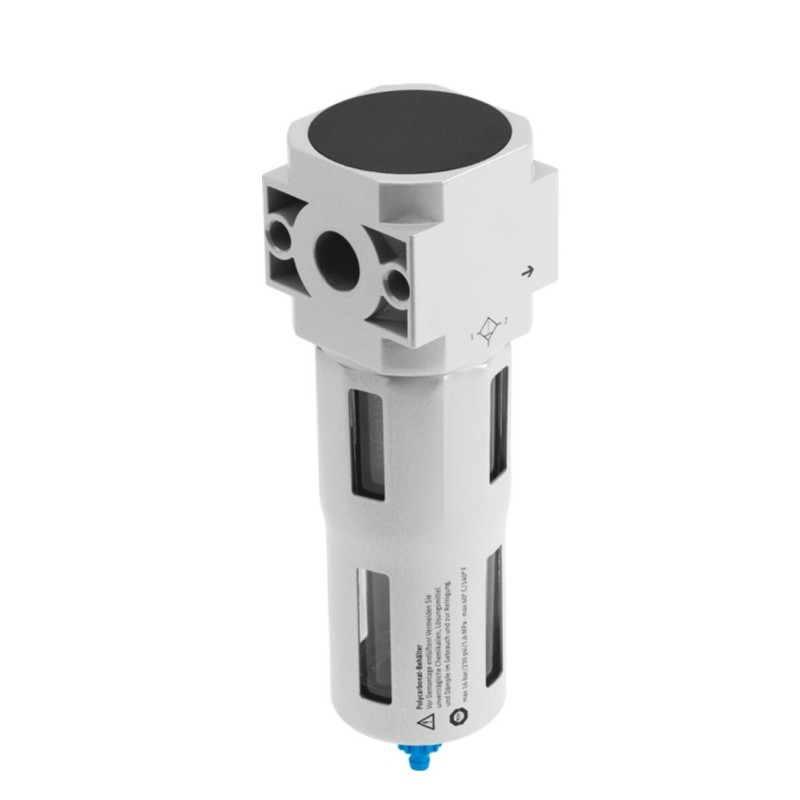

LFX-D-MINI, Part No.170679, belongs to Festo D-MINI modular air preparation system. It combines filter and pressure regulator in one unit to filter solid particles from compressed air and stabilize outlet pressure. Built-in 40μm filter element removes dust and impurities. Semi-automatic drain discharges accumulated condensate. Lockable adjustment knob prevents accidental pressure change. Modular stacking structure, can be assembled with D-MINI shut-off valve, lubricator and branch modules for integrated air service station. Widely used for air pretreatment of small pneumatic equipment and valve islands.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | LFX-D-MINI |
| Part No. | 170679 |
| Type | Filter regulator combination, D-MINI air service unit |
| Port size | G1/4 |
| Filter grade | 40μm |
| Pressure adjustment range | 0.5 ~ 12 bar |
| Max inlet pressure | 16 bar |
| Nominal flow rate | 1400 l/min |
| Pressure gauge | Integrated pressure gauge |
| Working medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Temperature range | -10 ~ 60 ℃ |
| Material | Housing: Zinc die casting, Bowl: Polycarbonate, Seal: NBR |
| Weight | 310.00 g |
| Feature | D-MINI modular stackable design, metal bowl guard, semi-automatic drain, lockable adjustment knob, combined filter & pressure regulator |
| Corrosion resistance class | CRC2 |
| RoHS | Compliant |
