MS6-LFR-1/2-D7-E-R-M-RG-AS

属性名称	属性值
Brand	Festo
Model	MS6-LFR-1/2-D7-E-R-M-RG-AS
Part No	579051
Product Type	Filter Regulator（Air Service Unit）
Series	MS6 Series
Port Size	G1/2
Nominal Flow Rate	4500 L/min
Max Inlet Pressure	2.0 MPa (20 bar)
Pressure Regulation Range	0.05 ~ 1.2 MPa (0.5 ~12 bar)
Max Pressure Hysteresis	0.025 MPa
Filtration Grade	40 μm
Medium	Compressed air ISO 8573-1 [7:4:4], inert gas
Ambient Temperature	-10 ~ +60 ℃
Drain Type	E: Fully automatic drain
Gauge	RG: Red-green scale pressure gau

INQUIRY

Product Details

Product Tags

Product Description

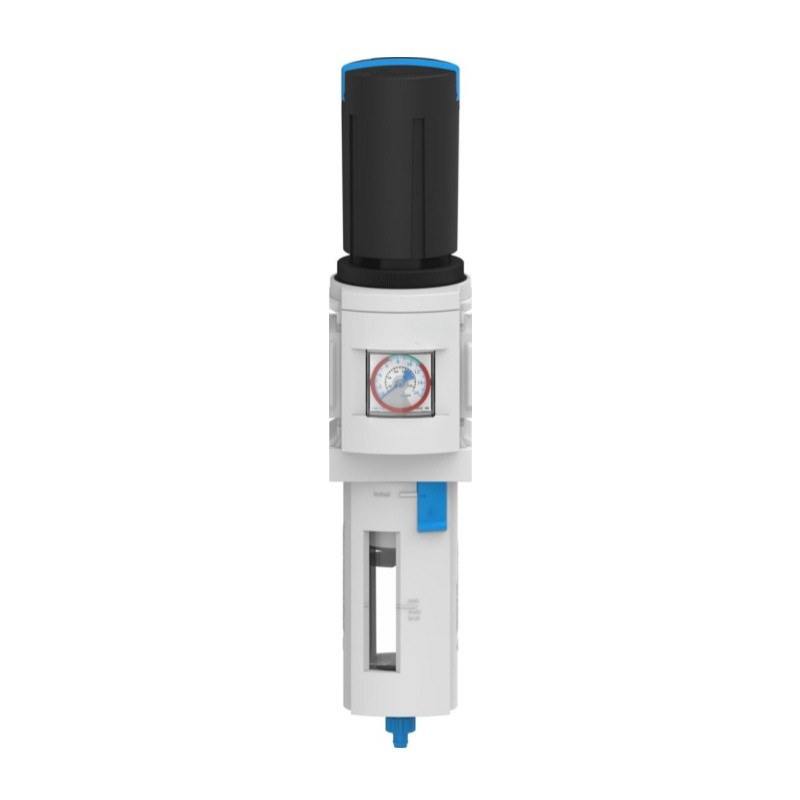

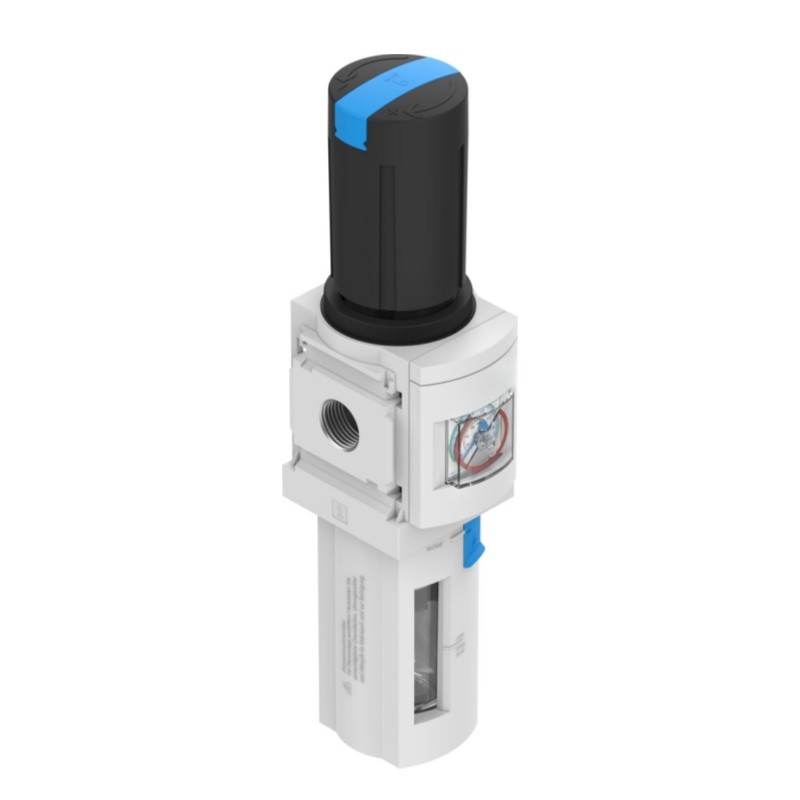

Festo MS6-LFR-1/2-D7-E-R-M-RG-AS (Part No.579051) is MS6 series filter regulator, an integrated compressed air preparation unit combining air filter and pressure regulator. It adopts modular design for easy assembly with other MS series pneumatic service components.

Equipped with G1/2 air port, 4500 L/min high flow, 40μm filter element for removing solid particles. E code means fully automatic condensate drain; RG represents red-green scale pressure gauge for visual pressure monitoring. Pressure adjustment range 0.5~12 bar, max inlet pressure up to 2.0 MPa. Die-cast aluminum body, PC filter bowl and NBR seals, stable performance for continuous industrial pneumatic circuits.

Item	Specification
Brand	Festo
Model	MS6-LFR-1/2-D7-E-R-M-RG-AS
Part Number	579051
Type	Filter Regulator
Series	MS6
Port	G1/2
Nominal Flow	4500 L/min
Max Inlet Pressure	2.0 MPa
Pressure Regulation Range	0.05 ~1.2 MPa (0.5~12 bar)
Filtration Grade	40 μm
Drain	Fully automatic drain
Pressure Gauge	Red-green scale
Ambient Temp	-10 ~ +60 ℃
Weight	875.00 g
Housing Material	Die-cast Aluminium
Seal	NBR
Corrosion Class	CRC2
Standard	LABS, RoHS
