IMA18-10BE1ZC0K
Product Overview

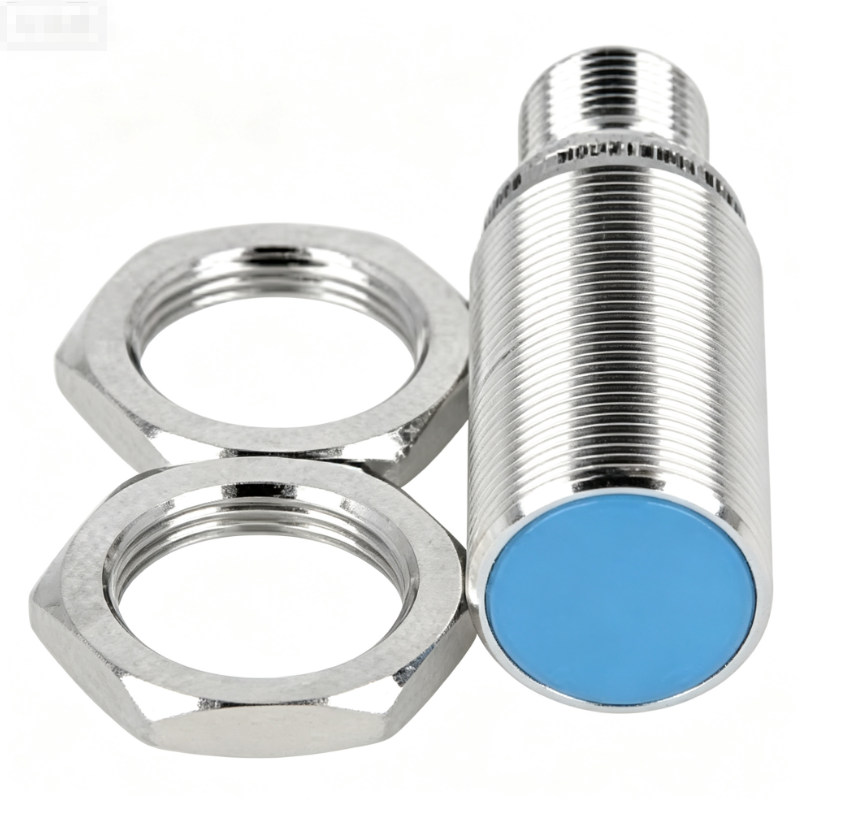

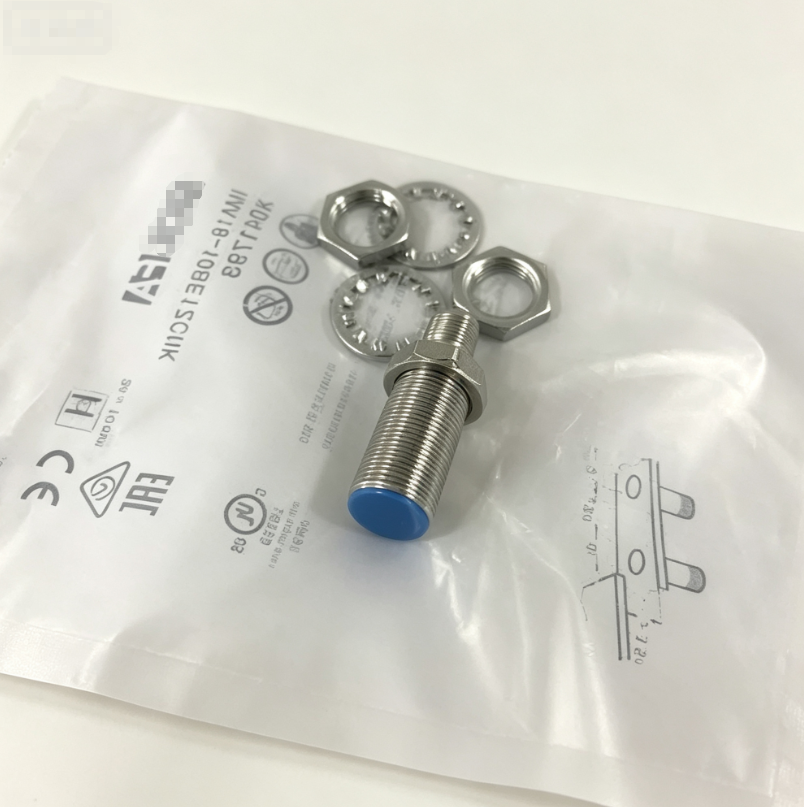

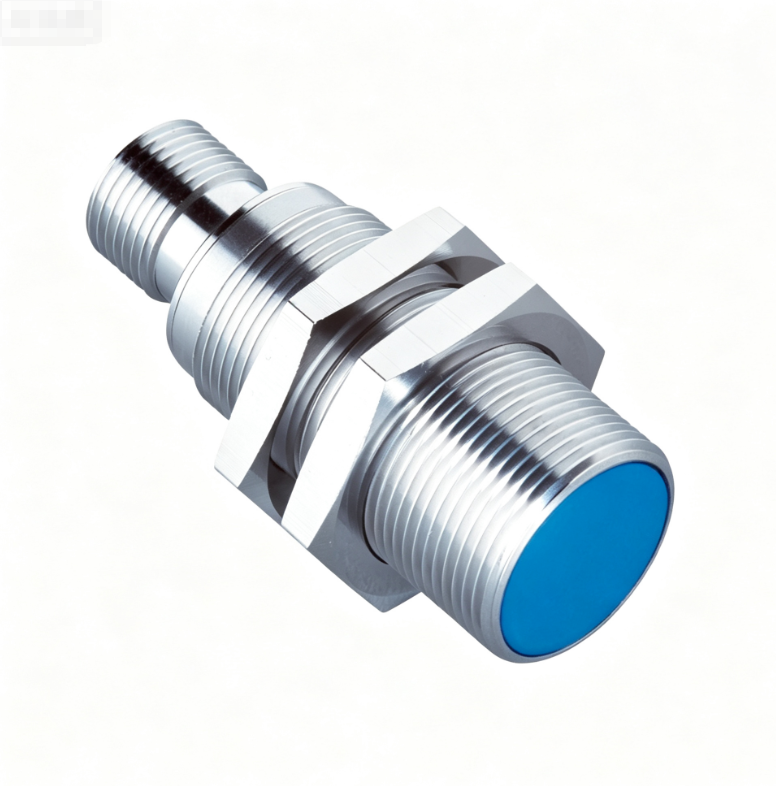

IMA18-10BE1ZC0K (Part No.6041793) is a M18 cylindrical analog inductive proximity sensor of SICK IMA18 series. It adopts quasi-flush mounting design, diameter Ø18mm, rated sensing distance Sn=10 mm. It provides 0~10V analog output for continuous metal position measurement, operating voltage DC15~30 V, equipped with M12 4-pin male connector. The housing is made of nickel-plated brass with IP67 protection class. It features high resolution ≤2μm and repeat accuracy ±0.02mm. The package includes 2 pieces of mounting nuts for installation. It is widely used for metal position measurement on machine tools, automation machinery and conveyor systems. Brand new original SICK inductive proximity sensor.
| 属性 | 属性值 |
|---|---|
| Brand | SICK |
| Model Number | IMA18-10BE1ZC0K |
| Part No. | 6041793 |
| Product Type | Inductive Proximity Sensor |
| Series | IMA18 / IMA |
| Detection principle | Inductive metal detection, analog output |
| Size | M18×1, Ø18mm cylindrical housing |
| Mounting type | Quasi-flush mounting |
| Rated sensing distance Sn | 10 mm |
| Output: Analog signal | 0~10V analog output |
| Supply Voltage | DC15 ~ 30 V |
| Connector | M12 4-pin male connector |
| Housing Material | Nickel-plated brass |
| Protection Class | IP67 |
| Special Feature | Quasi-flush mounting, high resolution ≤2μm, repeat accuracy ±0.02mm, include 2pcs mounting nuts, triple sensing range |
| Condition | New Original |
| Application | Metal position measurement, machine tools, automation machinery, conveyor systems |
| Net Weight | 0.050 KG |
| Gross Weight | 0.080 KG |
| Place of Origin | Germany |
| MOQ | 1 Piece |
| Warranty | 12 Months |
