QS-G1/4-12
Product Description

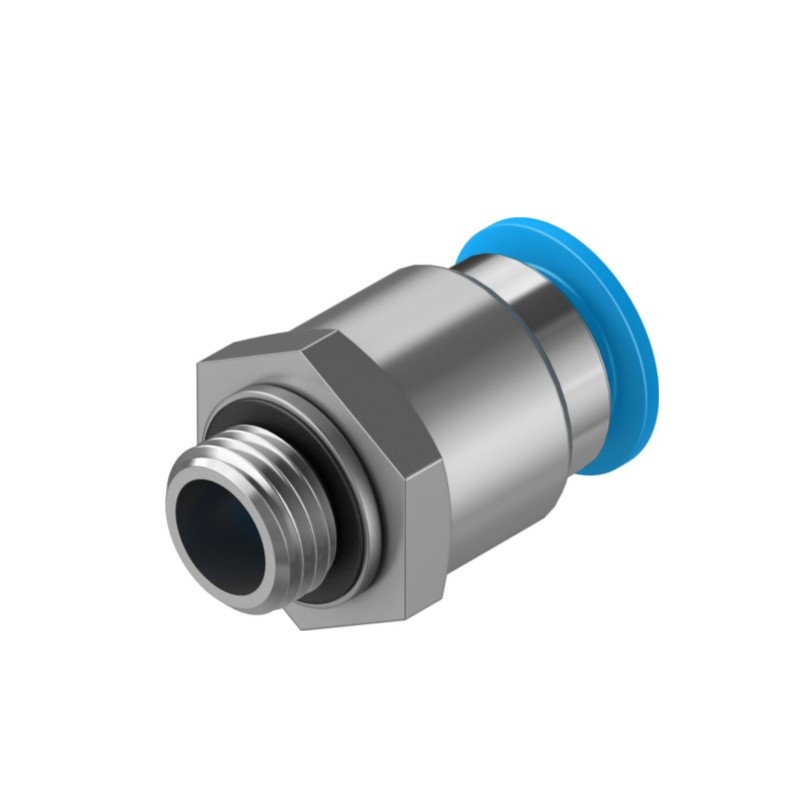

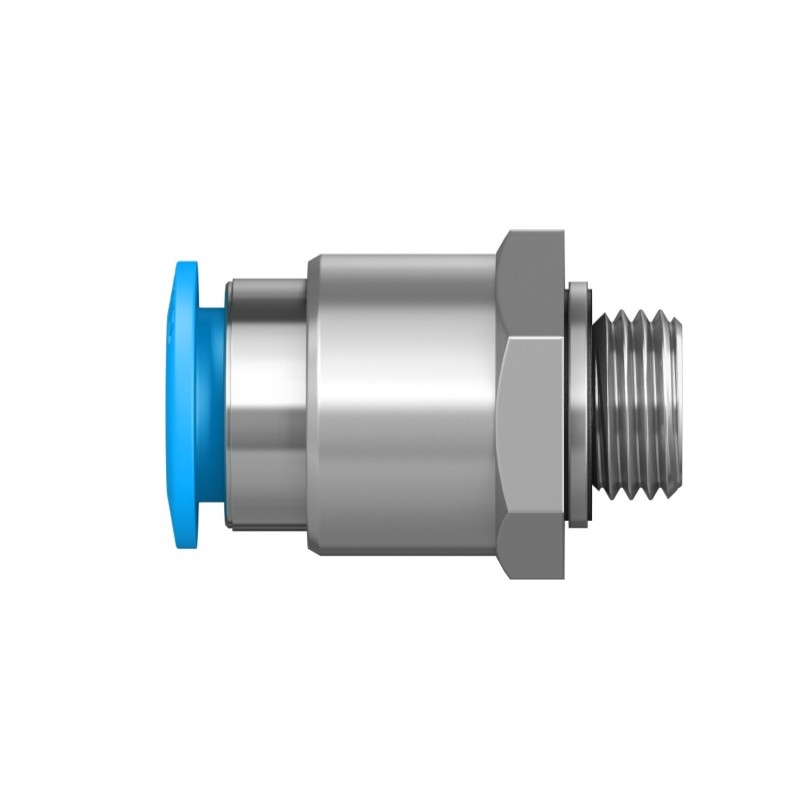

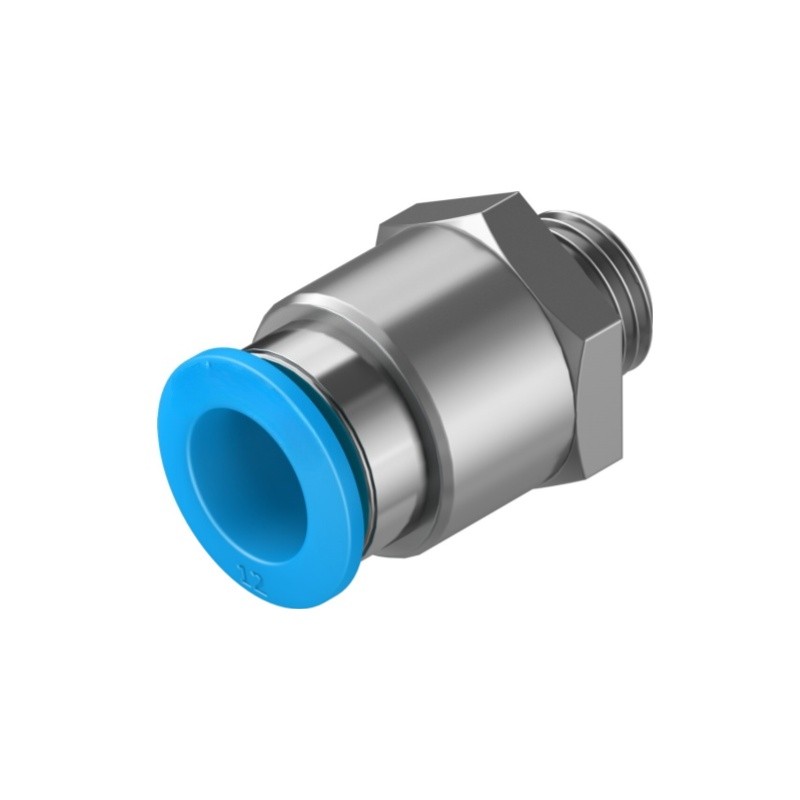

Festo QS-G1/4-12 (Part No.153026) is QS series straight push-in pneumatic fitting. It converts G1/4 male thread connection to 12mm OD pneumatic tube for straight pipeline extension.
Push-pull quick connect structure, insert tube directly; press blue release ring to release tube. It supports vacuum and compressed air, also applicable for water. PBT plastic body with stainless steel gripping claw provides reliable tube locking and stable sealing for long service life. Widely used for building pneumatic circuits in automation and handling equipment.
| Item | Specification |
|---|---|
| Brand | Festo |
| Model | QS-G1/4-12 |
| Part Number | 153026 |
| Type | Straight push-in fitting |
| Series | QS |
| Port 1 | G1/4 Male Thread |
| Port 2 | For tubing OD 12 mm |
| Nominal Width | 8 mm |
| Operating Pressure | -0.095 ~1.4 MPa |
| Medium | Compressed air, water |
| Ambient Temp | -10 ~ +80 ℃ |
| Weight | 34.00 g |
| Material | PBT housing, POM release ring, NBR seal, stainless steel jaw |
| Corrosion Class | CRC1 |
| Standard | LABS, RoHS |
