MSB4 1/4-FRC7:J3M1
Product Overview

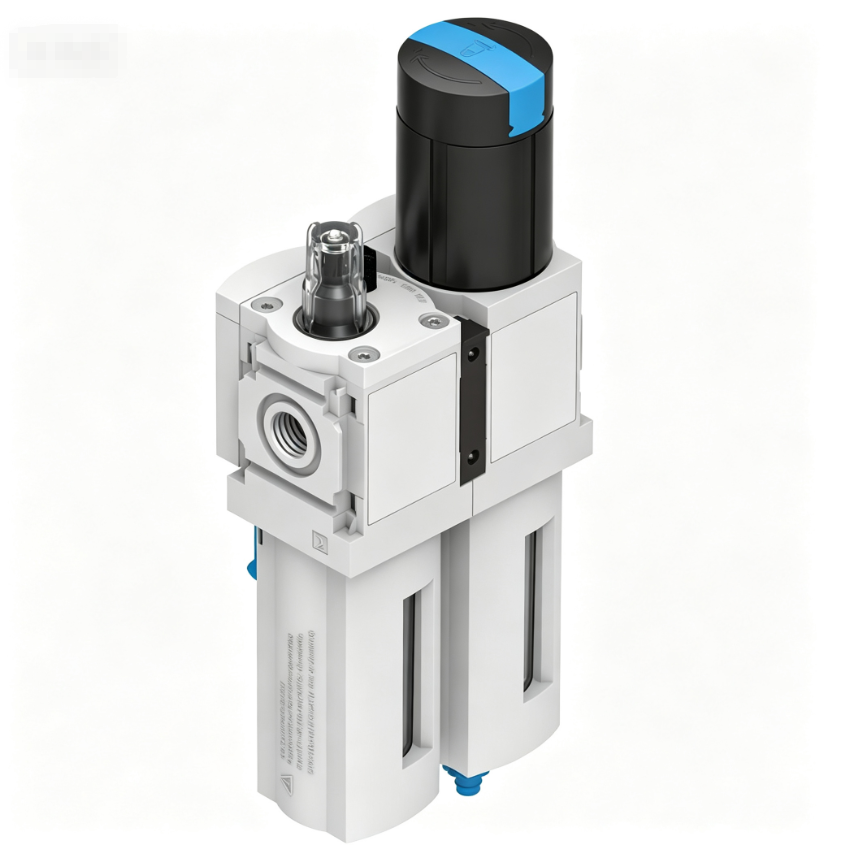

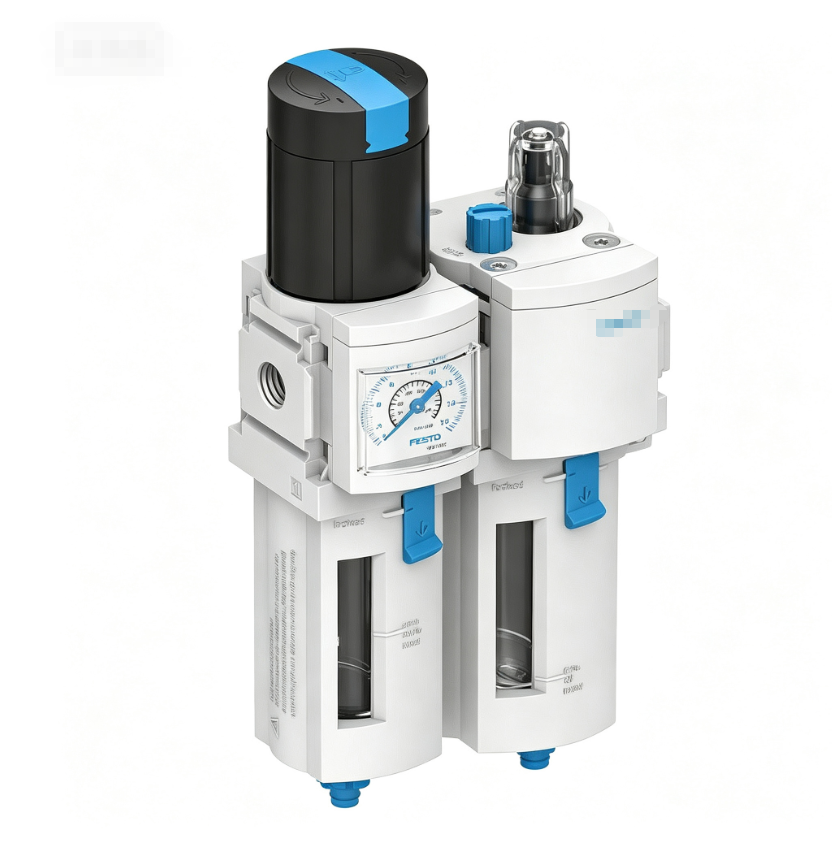

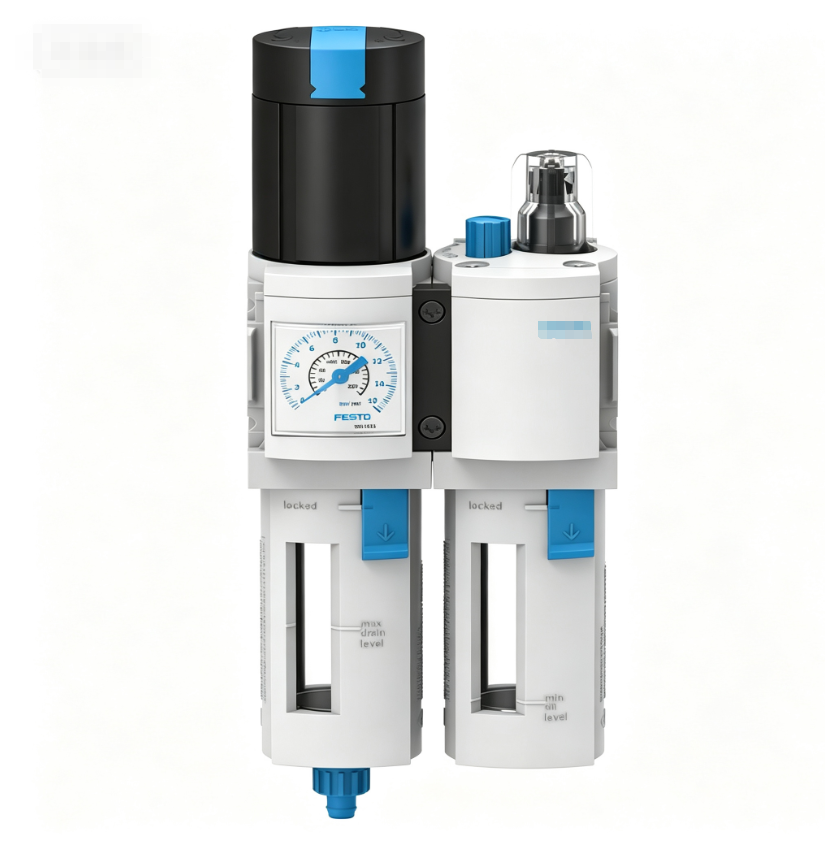

Item No: 531121 Model: MSB4-1/4-FRC7:J3M1 Brand: Festo Type: FRL Air Service Unit (Filter Regulator Lubricator)
Festo MSB4-1/4-FRC7:J3M1 FRL combination unit (531121) belongs to MSB4 modular air service series. It combines three functions: air filtering, pressure regulation and oil mist lubrication. J3 represents 5μm filter-regulator with manual condensate drain and lockable knob; M1 is mist lubricator with plastic bowl and guard. Built-in pressure gauge allows direct pressure reading. It prepares clean, pressure-stabilized and lubricated compressed air for entire pneumatic circuit.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | MSB4-1/4-FRC7:J3M1 |
| Part No. | 531121 |
| Type | Air Service Unit / FRL Combination Unit |
| Series | MSB4 |
| Function | FRC: Filter + Regulator + Lubricator |
| Port Size | G1/4 |
| Filtration Grade | 5 μm |
| Max Inlet Pressure | 1.4 MPa (14 bar) |
| Output Pressure Range | 0.05 ~ 1.2 MPa (0.5 ~ 12 bar) |
| Nominal Flow Rate | 850 l/min |
| Condensate Drain | Manual rotary condensate drain |
| Feature | J3:5μm filter-regulator with lockable knob; M1 lubricator; plastic bowl with guard, built-in pressure gauge |
| Medium | Compressed air ISO 8573-1:2010 [6:4:-] |
| Ambient Temperature | -10 ~ +60 ℃ |
| Material | Die-cast aluminum housing, PC polycarbonate bowl, plastic bowl guard, NBR seals |
| Corrosion Resistance | CRC2 |
| Weight | 500 g |
| Mounting | Wall mounting with mounting bracket |
| Condition | New Original |
