1051462 IME08-02BPSVT0SS12

属性项	参数
Brand	SICK
Model	IME08-02BPSVT0SS12
Order No.	1051462
Product Type	Inductive Proximity Sensor
Sensing Principle	Inductive
Rated Sensing Distance	2 mm
Output Type	PNP NO
Supply Voltage	10~30V DC
Connection	Cable, 12m, 3-core
Housing Material	Nickel-plated brass
Protection Grade	IP67
Size	M8, length 42 mm
Response Frequency	2000 Hz
Max Output Current	100mA
Operating Temp	-25℃ ~ +70℃
Net Weight	0.07kg
Gross Weight	0.10kg
Certification	CE
Condition	New Original
Application

INQUIRY

Product Details

Product Tags

Product Overview

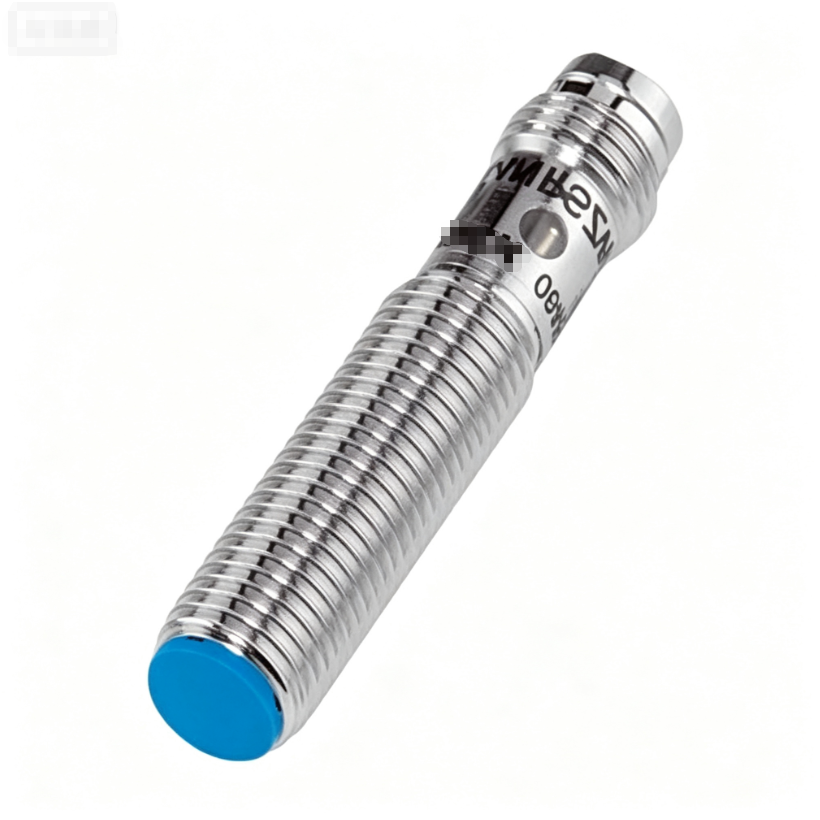

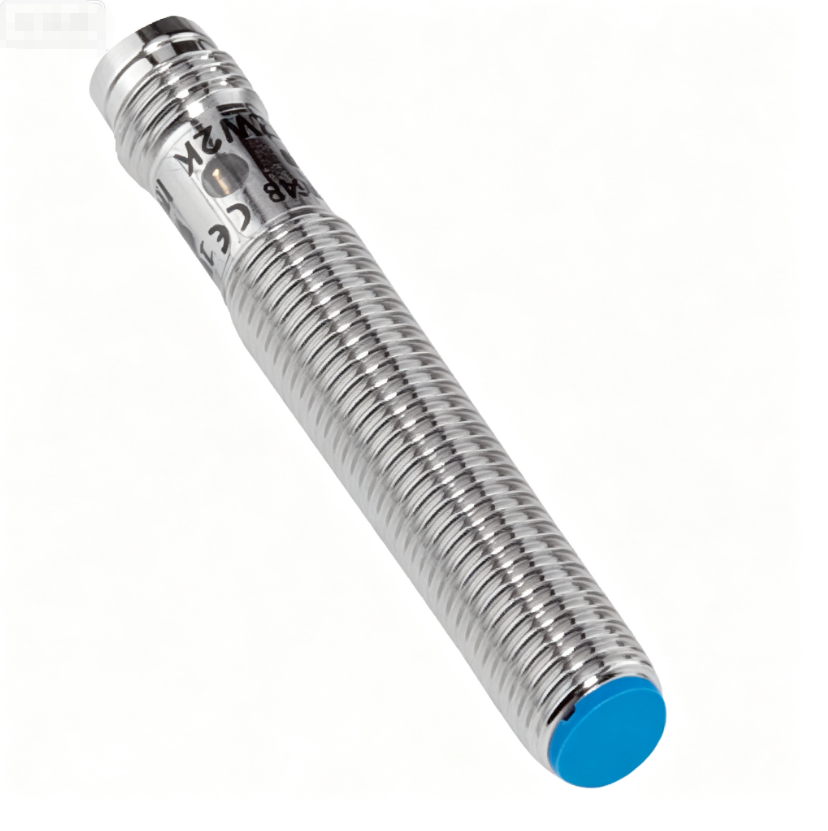

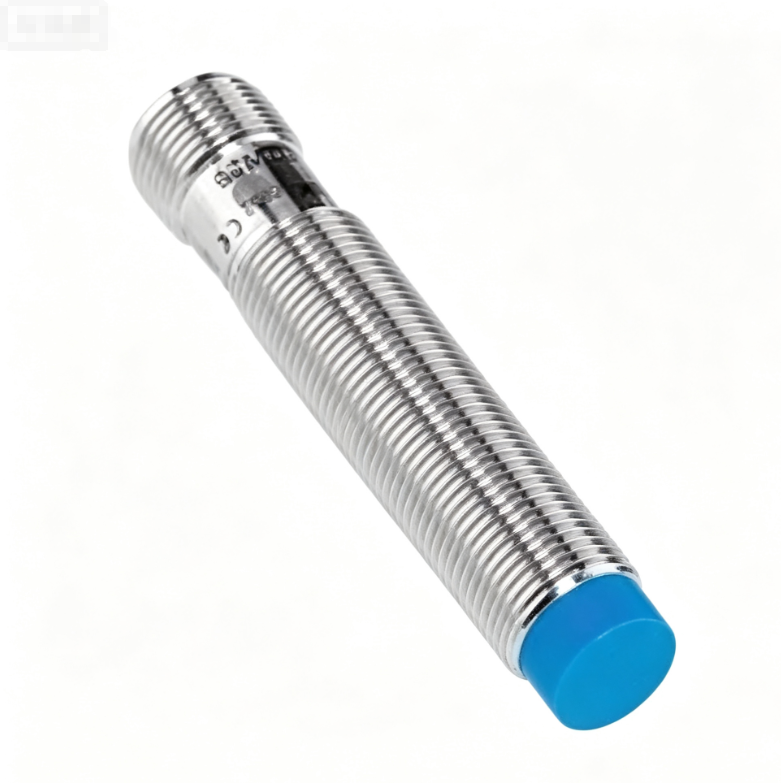

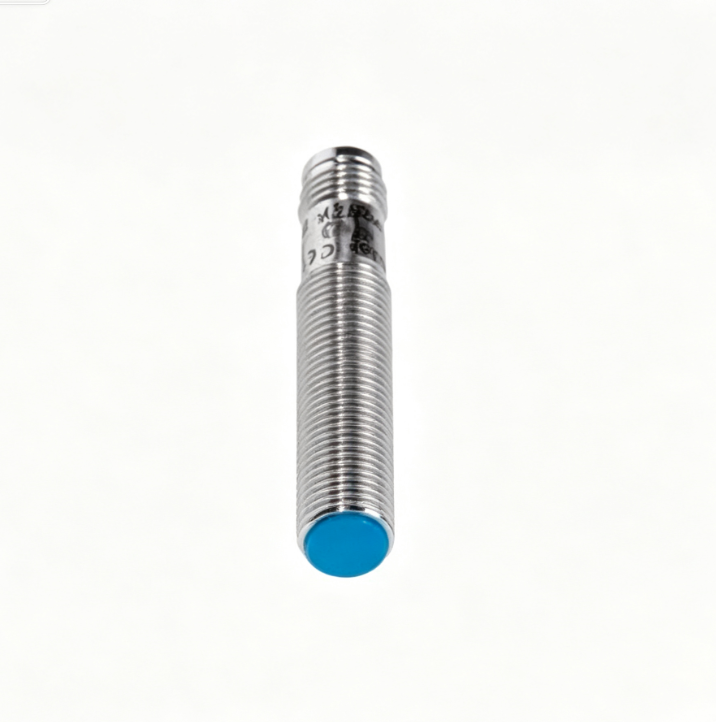

SICK IME08-02BPSVT0SS12, Order No.1051462 is an M8 cylindrical inductive proximity sensor. It adopts non-contact inductive detection principle for metal objects, comes with a long 12m fixed cable, stable and reliable for compact automation equipment.

属性项	参数
Brand	SICK
Model	IME08-02BPSVT0SS12
Order No.	1051462
Product Type	Inductive Proximity Sensor
Sensing Principle	Inductive
Rated Sensing Distance	2 mm
Output Type	PNP NO
Supply Voltage	10~30V DC
Connection	Cable, 12m, 3-core
Housing Material	Nickel-plated brass
Protection Grade	IP67
Size	M8, length 42 mm
Response Frequency	2000 Hz
Max Output Current	100mA
Operating Temp	-25℃ ~ +70℃
Net Weight	0.07kg
Gross Weight	0.10kg
Certification	CE
Condition	New Original
Application	Factory Automation, Conveyor, Assembly machine, Material detection
