1040871 IME08-02BPSZW2K

属性项	参数
Brand	SICK
Model	IME08-02BPSZW2K
Order No.	1040871
Product Type	Inductive Proximity Sensor
Sensing Principle	Inductive
Rated Sensing Distance	2 mm
Output Type	PNP NO
Supply Voltage	10~30V DC
Connection	M8 3-pin male connector
Housing Material	Nickel-plated brass
Protection Grade	IP67
Size	M8, length 30 mm
Response Frequency	2000 Hz
Max Output Current	100mA
Operating Temp	-25℃ ~ +70℃
Net Weight	0.04kg
Gross Weight	0.07kg
Certification	CE
Condition	New Original
Applicati

INQUIRY

Product Details

Product Tags

Product Overview

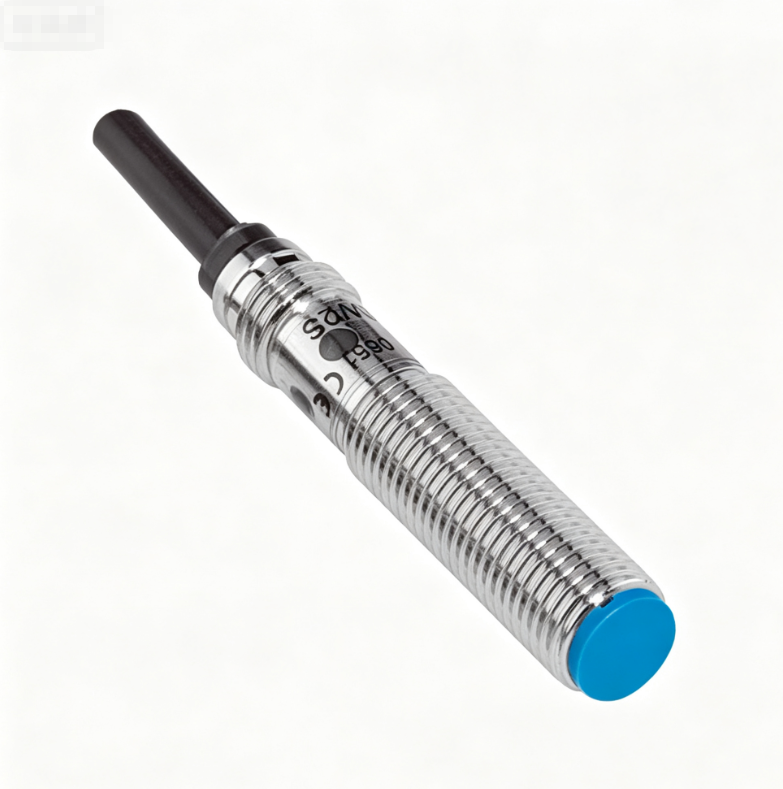

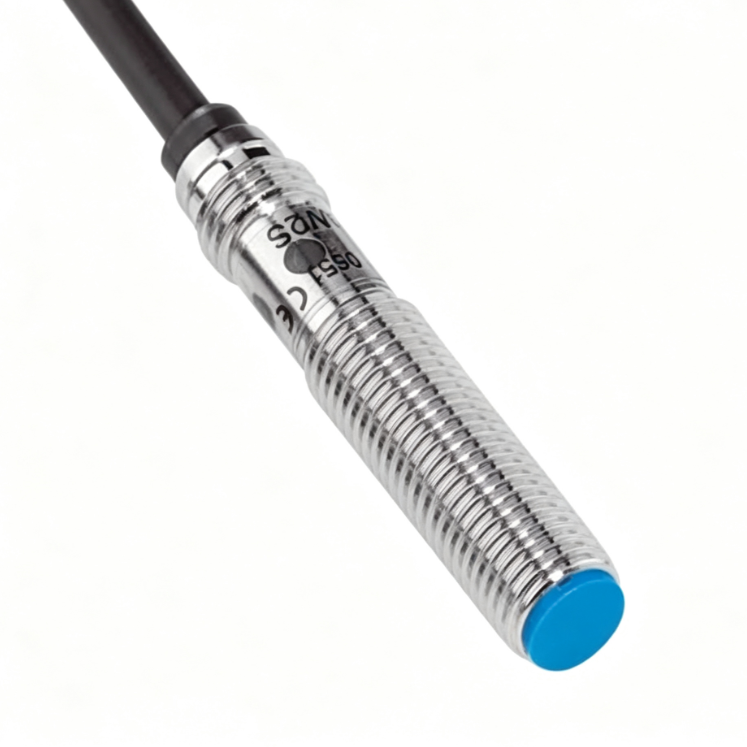

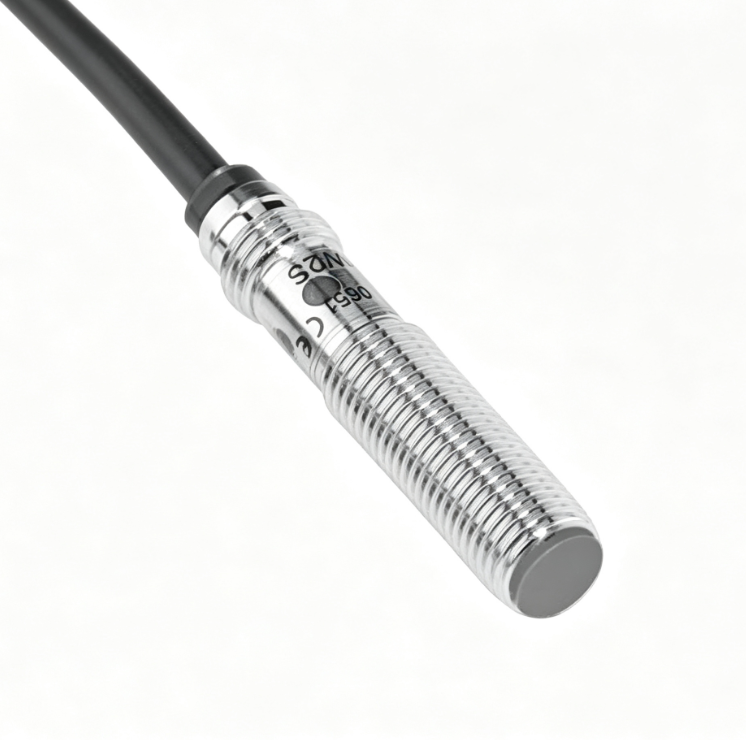

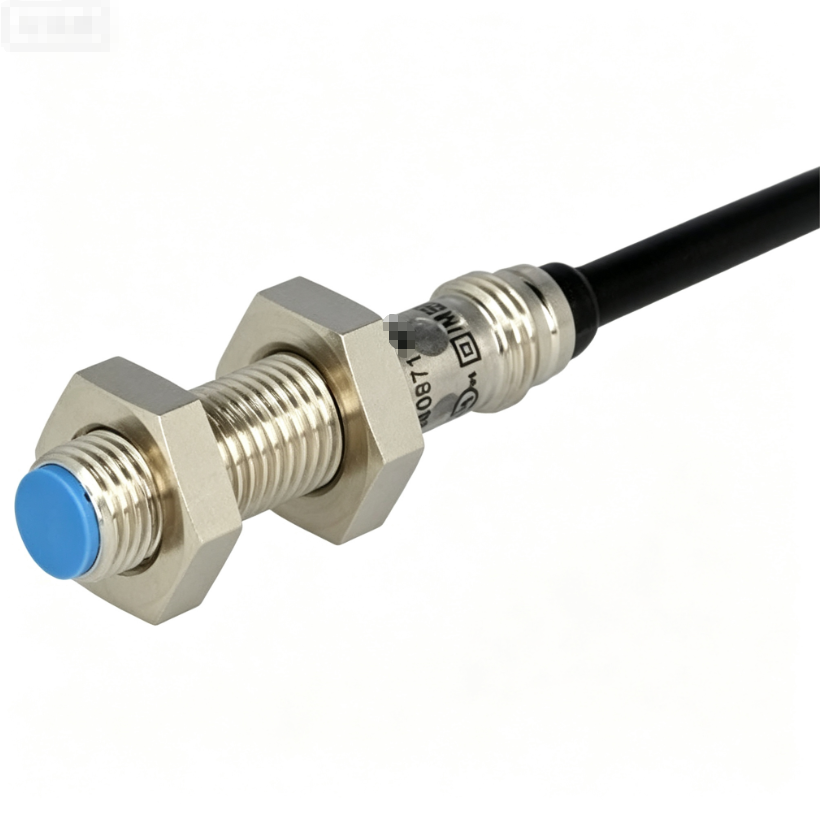

SICK IME08-02BPSZW2K, Order No.1040871 is M8 cylindrical inductive proximity sensor. It adopts non-contact inductive detection principle to detect metal objects. Compact structure with M8 3-pin male connector, convenient for quick plug-and-play installation in limited-space automation equipment.

属性项	参数
Brand	SICK
Model	IME08-02BPSZW2K
Order No.	1040871
Product Type	Inductive Proximity Sensor
Sensing Principle	Inductive
Rated Sensing Distance	2 mm
Output Type	PNP NO
Supply Voltage	10~30V DC
Connection	M8 3-pin male connector
Housing Material	Nickel-plated brass
Protection Grade	IP67
Size	M8, length 30 mm
Response Frequency	2000 Hz
Max Output Current	100mA
Operating Temp	-25℃ ~ +70℃
Net Weight	0.04kg
Gross Weight	0.07kg
Certification	CE
Condition	New Original
Application	Factory Automation, Conveyor, Assembly machine, Material detection
