MS4-EE-1/4-10V24
Product Overview
Item No: 542601 Model: MS4-EE-1/4-10V24 Brand: Festo Type: Electric On-off Solenoid Valve, MS4 Series Service Unit Module

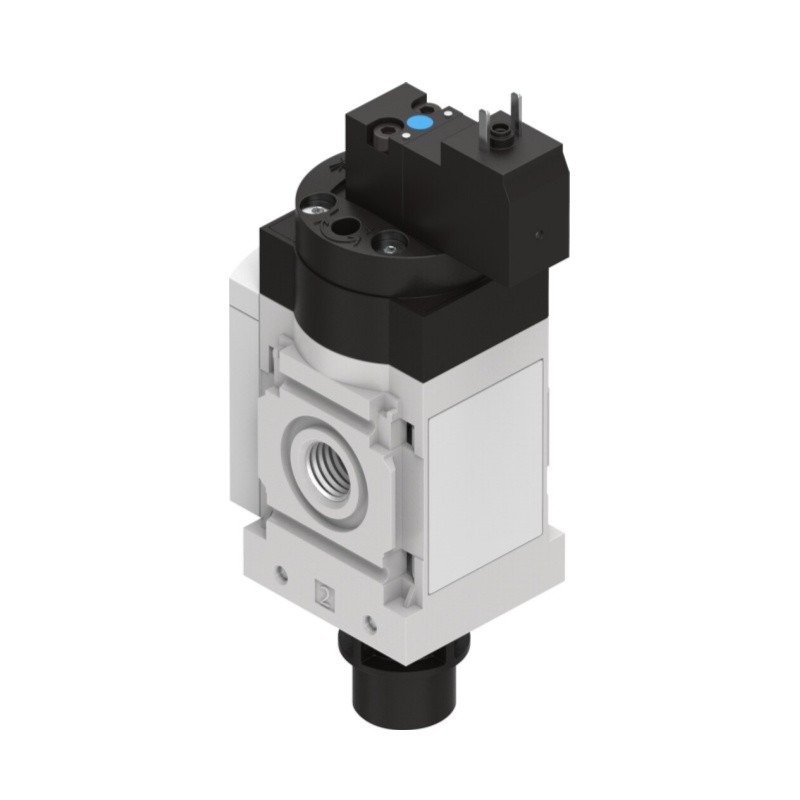

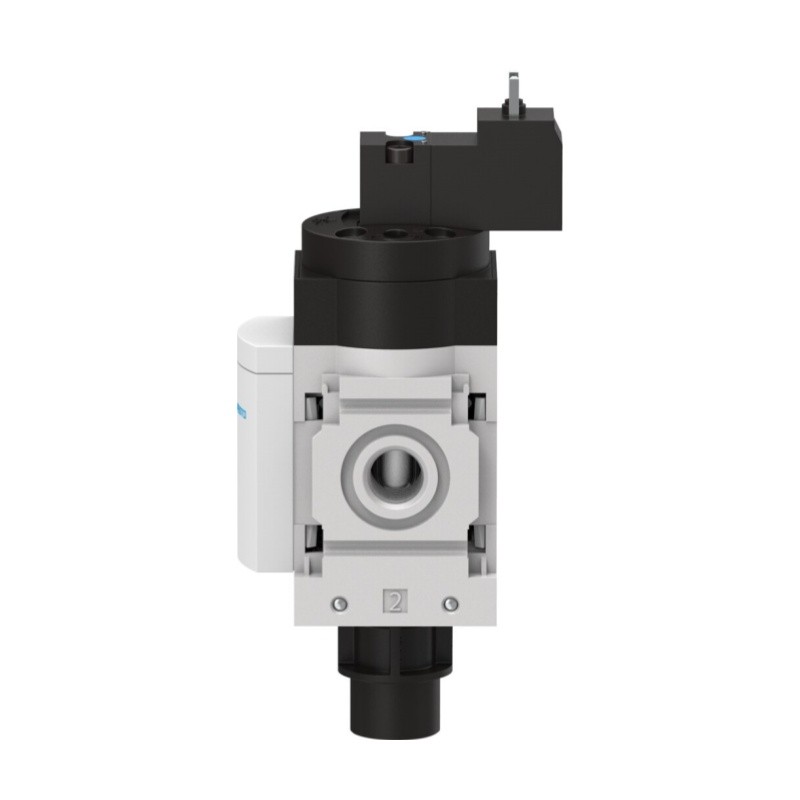

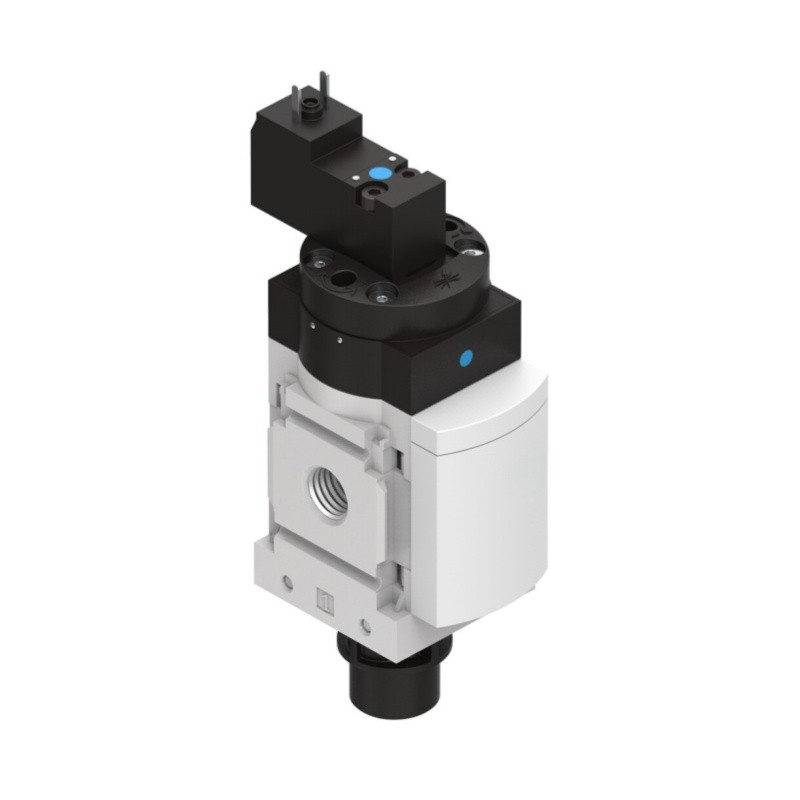

Festo MS4-EE-1/4-10V24 on-off solenoid valve, part number 542601, belongs to MS4 series modular service unit components. It is a 3/2-way monostable pilot operated shut-off valve, equipped with G1/4 air port and 24V DC solenoid coil. The built-in soft start function enables slow pressure build-up, avoiding pressure shock damage to cylinders and actuators. It can cut off and exhaust compressed air circuit electrically for equipment safety protection. The housing combines polymer and aluminium alloy, NBR seals for stable sealing performance, IP65 protection grade against dust and splash water. It is directly assembled onto MS4 air service unit, widely applied in factory automation pneumatic systems for air supply switch and safety interlock control.
| 属性名称 (Key) | 属性值 (Value) |
|---|---|
| Brand | Festo |
| Model | MS4-EE-1/4-10V24 |
| Part No. | 542601 |
| Product Series | MS4 |
| Product Type | On-off Solenoid Valve for Service Unit |
| Product Function | Electric on/off shut-off valve, soft start function, MS4 series service unit module |
| Pneumatic Connection | G1/4 |
| Operating Pressure | 0 ~ 10 bar |
| Supply Voltage | 24V DC |
| Nominal Flow Rate | 1400 l/min |
| Operating Medium | Filtered compressed air ISO 8573-1 [7:4:4] |
| Ambient Temperature | -10 ℃ ~ +50 ℃ |
| Housing Material | Polymer / Aluminium alloy |
| Seal Material | NBR |
| Protection Class | IP65 |
| Feature | Soft start, electric shut-off valve, modular for MS4 air service unit |
| Application | Compressed air circuit on/off control, safe air cut-off, gradual pressure build-up for automation pneumatic system |
| Net Weight | 220 g/pc |
| RoHS Compliance | Yes |
