QS-8-4
Product Overview
Item No: 153030 Model: QS-8-4 Brand: Festo Type: Reducing Push-in Fitting, QS Series

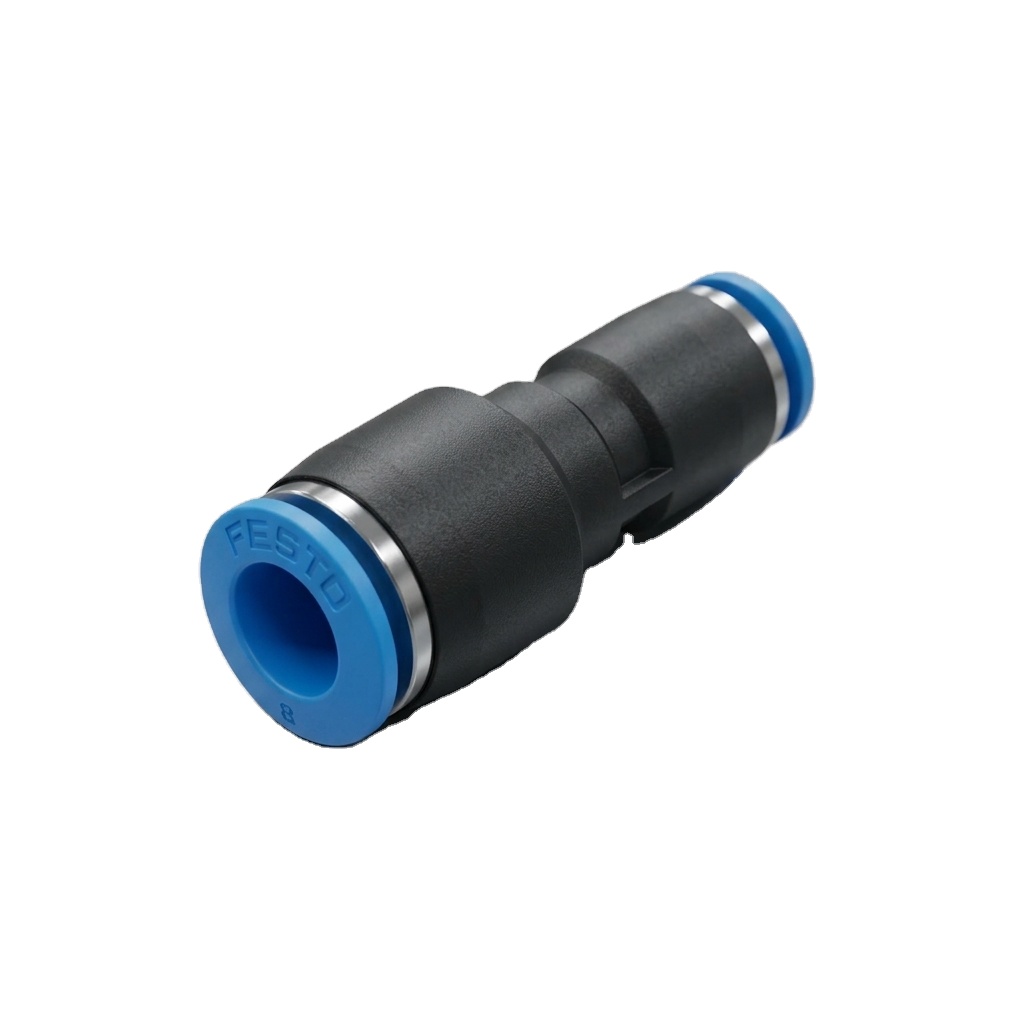

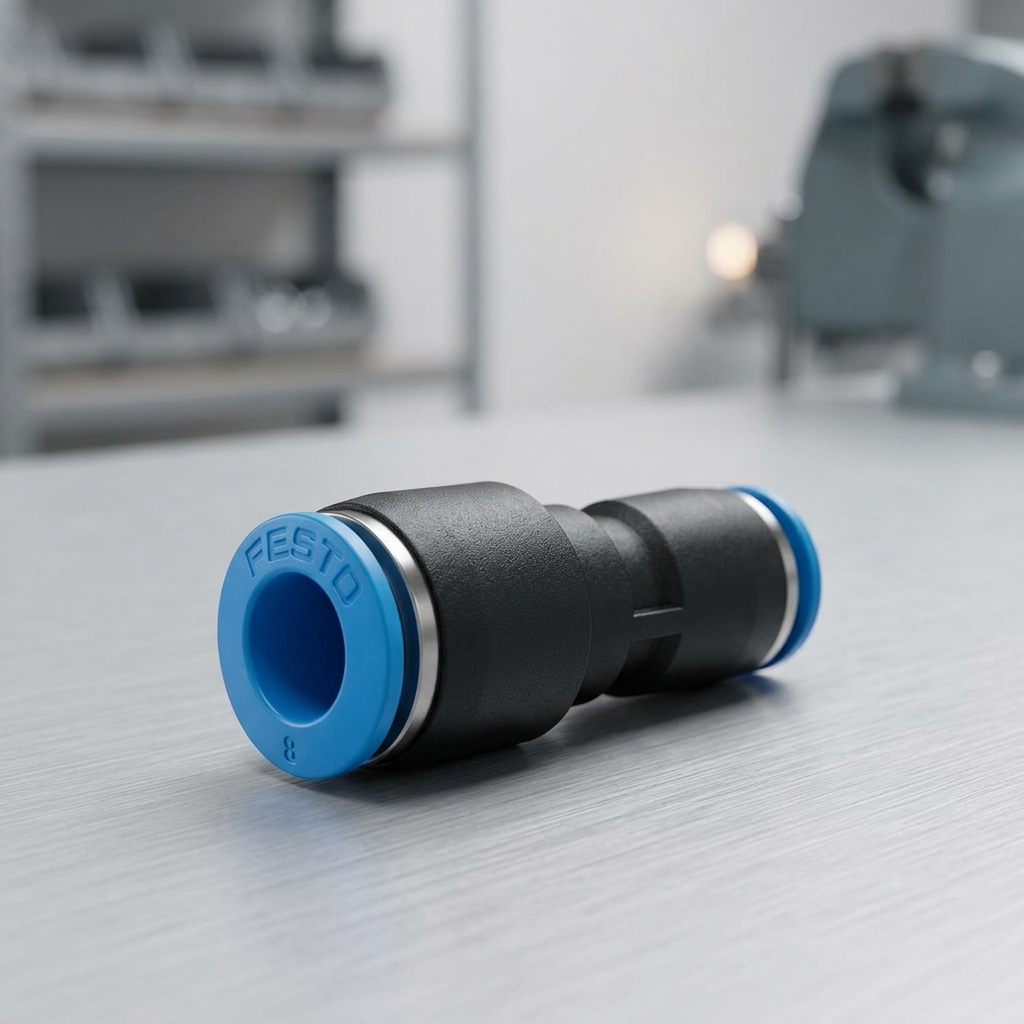

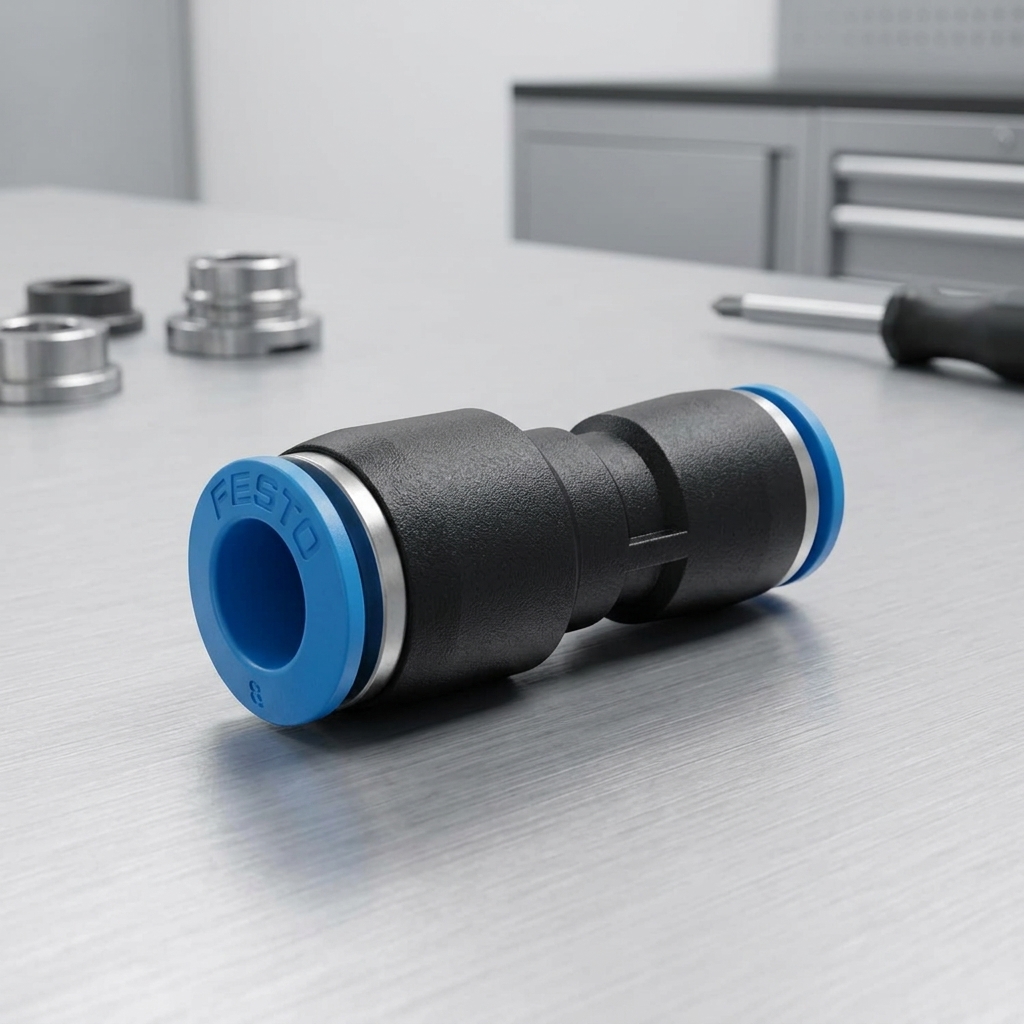

Festo QS-8-4 push-in reducing fitting, part number 153030, belongs to QS series pneumatic quick connectors. This straight reducer is designed to link 8mm OD tubing and 4mm OD tubing together, realizing pipeline diameter transition. It adopts push-in quick connection design, no tools required for tube insertion and removal, convenient for on-site assembly and maintenance. The fitting body is made of polypropylene (PP), equipped with NBR sealing ring for stable sealing performance. It can work with compressed air, vacuum and inert gas, pressure range -0.95 ~10 bar. Compact structure saves installation space, widely applied in factory automation pneumatic circuit connection and pipeline modification.
| 属性名称 (Key) | 属性值 (Value) |
|---|---|
| Brand | Festo |
| Model | QS-8-4 |
| Part No. | 153030 |
| Product Series | QS |
| Product Type | Reducing push-in fitting |
| Product Function | Straight reducer, pneumatic quick connector |
| Tube connection side1 | 8 mm OD tubing |
| Tube connection side2 | 4 mm OD tubing |
| Operating Pressure | -0.95 ~ 10 bar |
| Operating Medium | Compressed air, vacuum, inert gas |
| Ambient Temperature | -10 ℃ ~ +60 ℃ |
| Housing Material | Polypropylene PP |
| Seal Material | NBR |
| Feature | Push-in quick connect, simple tube assembly, compact straight reducing adapter |
| Application | Pneumatic pipeline transition, tubing diameter reduction, automation pneumatic circuit connection |
| Net Weight | 2.4 g/pc |
| RoHS Compliance | Yes |
