MZT8-03VPS-KP0
Product Overview

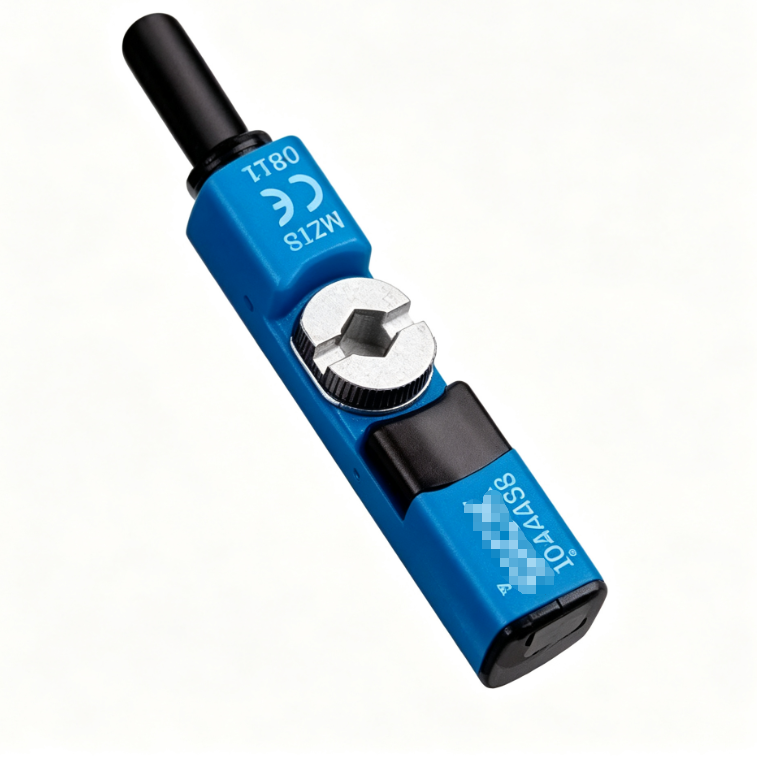

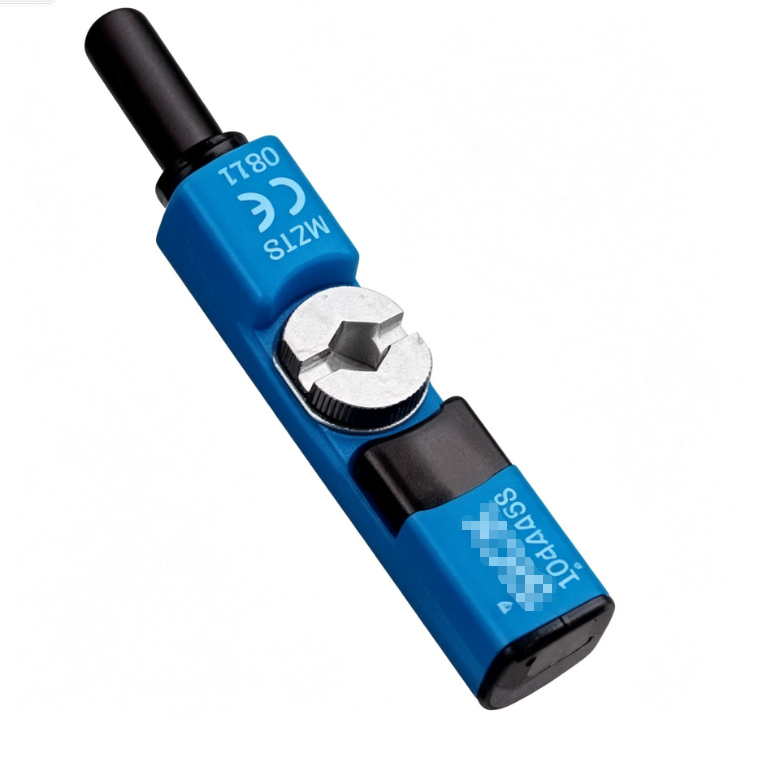

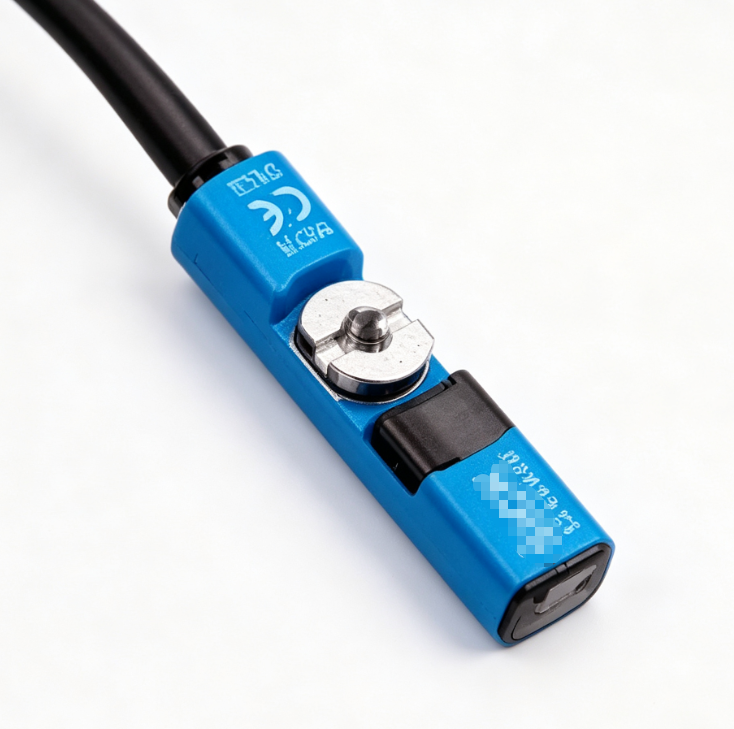

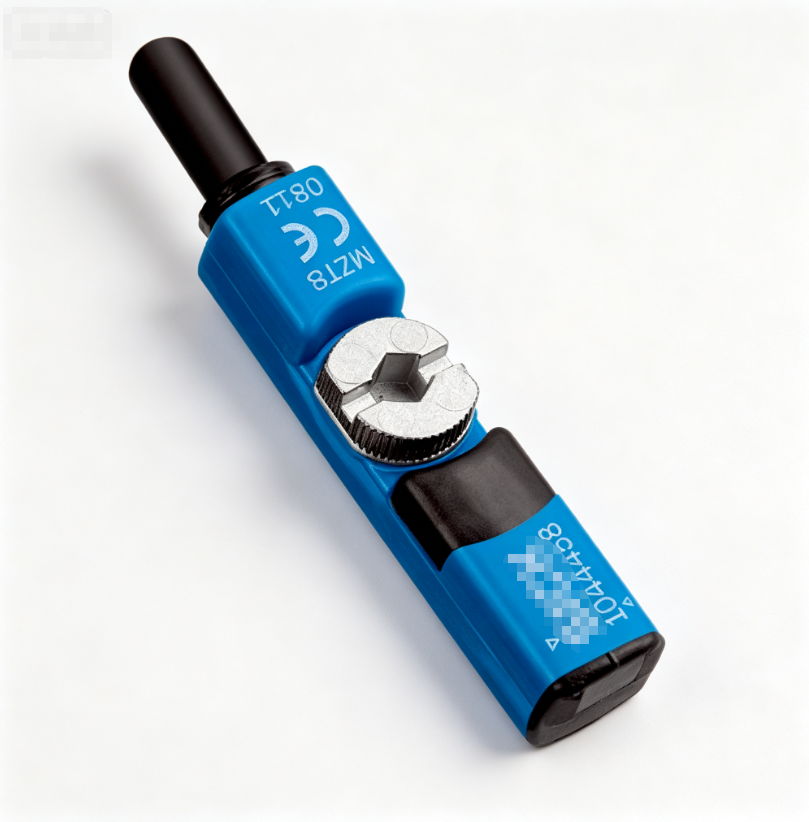

MZT8-03VPS-KP0 is a compact magnetic cylinder sensor from SICK MZT8 series. It is designed for T-slot pneumatic cylinders to detect the built-in piston magnet inside the cylinder. It features PNP normally open DC 3-wire output, operating voltage DC 10 ~ 30 V. It is equipped with M8 4-pin male connector, lightweight plastic housing and IP67 protection class. It monitors piston position reliably for pneumatic automation systems. Brand new original SICK magnetic cylinder sensor.
| 属性名称 | 属性值 |
|---|---|
| Brand | SICK |
| Model Number | MZT8-03VPS-KP0 |
| Part No. | 1041457 |
| Product Type | Cylinder Magnetic Proximity Sensor |
| Series | MZT8 |
| Principle | Magnetic cylinder sensor for piston detection |
| Sensing Distance | For T-slot pneumatic cylinder |
| Output Type | PNP NO (Normally Open), DC 3-wire |
| Supply Voltage | 10 V DC ~ 30 V DC |
| Housing Material | Plastic |
| Protection Class | IP67 |
| Cable | M8 4-pin male connector |
| Switching Frequency | 1000 Hz |
| Condition | New Original |
| Application | Pneumatic cylinder piston detection, automation machine, packaging equipment |
| Weight | 0.018 KG |
| Gross Weight | 0.04 KG |
| Place of Origin | Germany |
| MOQ | 1 Piece |
| Warranty | 12 Months |
