CM30-25NNP-EW1 6058158
Product Overview

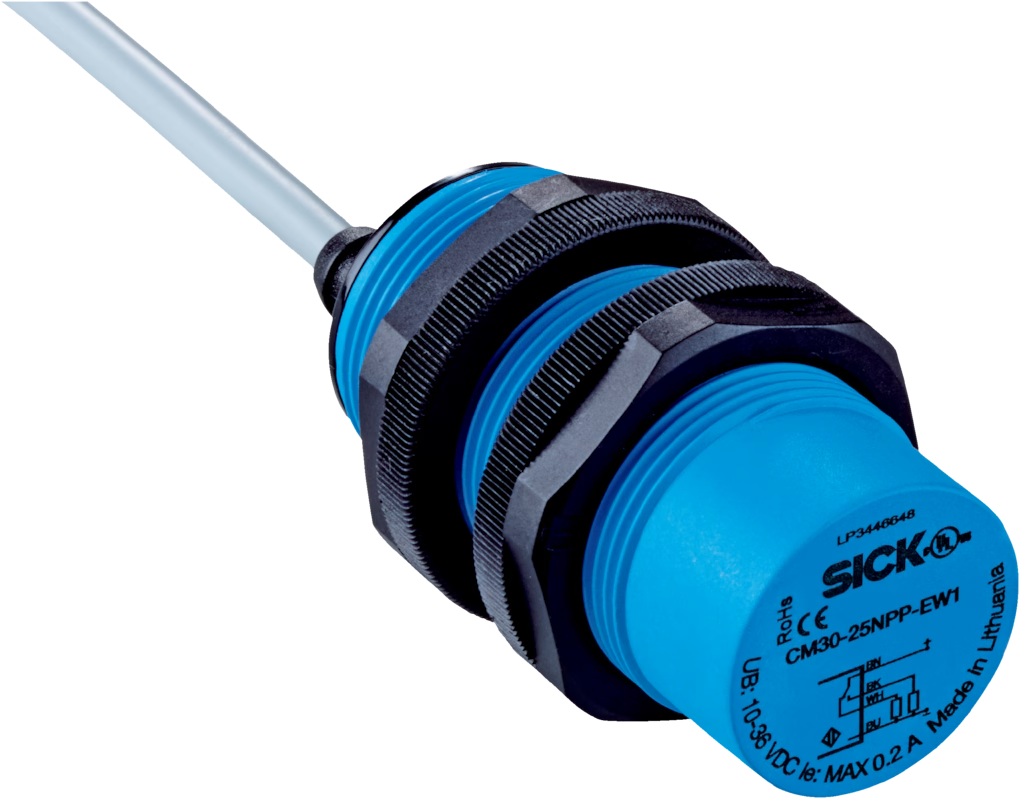

New original SICK CM30-25NNP-EW1 capacitive proximity sensor, PN 6058158, CM series M30 threaded non-flush mount sensor. 25mm sensing distance, complementary NPN output, 10-36VDC power supply. It comes with 2m 4-core PVC cable, IP68 and IP69K high protection grade. PBT plastic housing with potentiometer for sensitivity adjustment and wire configurable output. Working temperature ranges from -30℃ to +85℃. Suitable for level detection, object counting and position monitoring in packaging, conveyor and other harsh industrial automation systems. We supply genuine SICK sensors with fast delivery and professional after-sales support.
| 属性名 | 属性值 |
|---|---|
| Brand | SICK |
| Model | CM30-25NNP-EW1 |
| Part No. | 6058158 |
| Series | CM |
| Sensor type | Capacitive proximity sensor |
| Sensing distance | 25 mm |
| Installation | Non-flush mount |
| Output type | NPN, complementary |
| Wiring | DC 4-wire |
| Connection | 2m 4-core PVC cable |
| Supply voltage | 10–36 V DC |
| Max switching current | 200 mA |
| Switching frequency | 50 Hz |
| IP rating | IP68, IP69K |
| Housing material | PBT plastic |
| Operating temperature | -30 ℃ ~ +85 ℃ |
| Feature | Sensitivity adjustable by potentiometer, wire configurable output |
| Weight(net) | 0.13 kg |
| Weight(gross) | 0.19 kg |
| Certificate | RoHS |
