PUN-H-10X1,5-BL 197386
Product Overview

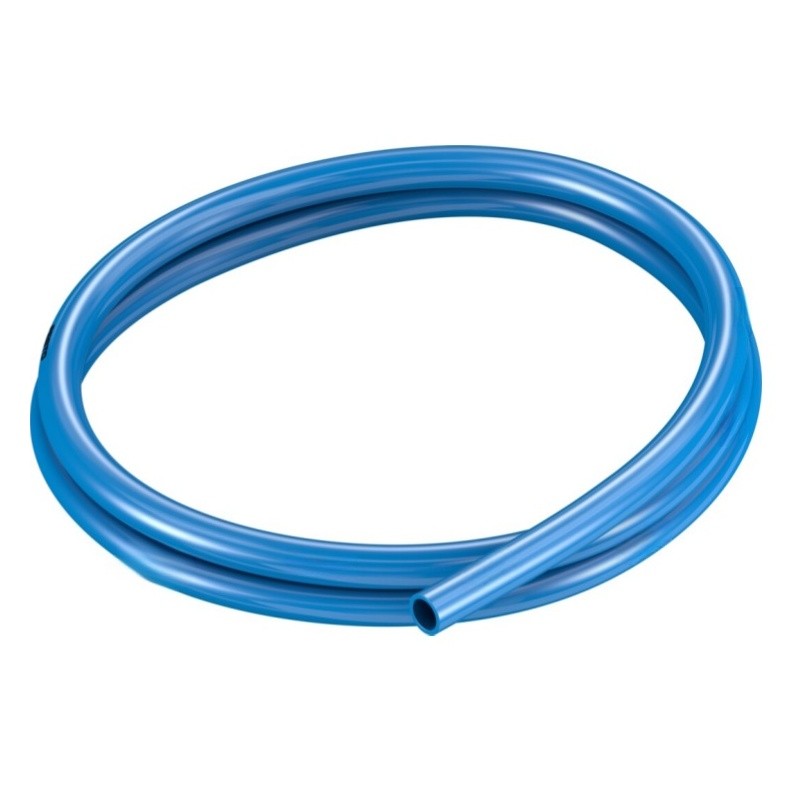

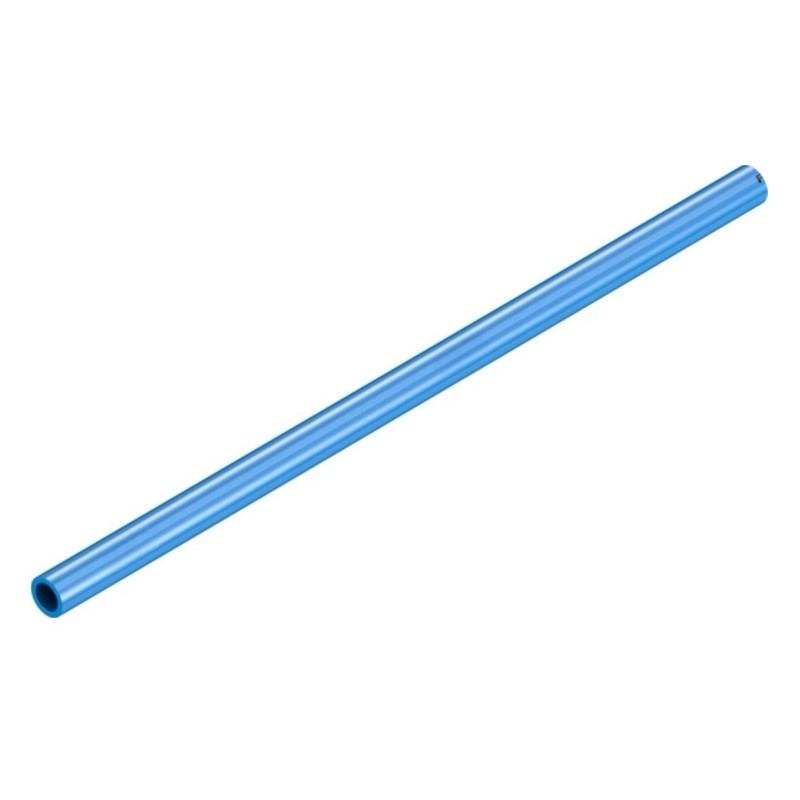

PUN-H-10X1,5-BL (Part No.197386) is Festo PUN-H series ether-based TPE-U polyurethane pneumatic plastic tubing. Size OD 10mm, wall thickness 1.5mm, inner diameter 7mm, blue color. Made of ether-type thermoplastic polyurethane with outstanding hydrolysis resistance and great flexibility, suitable for installation inside energy chain. Working pressure -0.95~10 bar at 20℃, ambient temperature -35~60℃. UL94 HB and TÜV certified, RoHS & PWIS compliant. Widely used for compressed air and ice-free water transmission in industrial automation pneumatic pipelines.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | PUN-H-10X1,5-BL |
| MPN | 197386 |
| Product Type | Pneumatic Plastic Tubing |
| Series | PUN-H Series |
| Material | Ether-based TPE-U Polyurethane |
| Size | OD 10mm, Wall thickness 1.5mm, ID 7mm |
| Color | Blue (BL) |
| Min Bending Radius | 25 mm |
| Working Medium | Compressed air (ISO 8573-1:2010), ice-free water |
| Working Pressure | -0.95 ~ 10 bar at 20℃ |
| Ambient Temperature | -35 ~ 60 ℃ |
| Feature | Hydrolysis-resistant, high flexibility, suitable for energy chain, UL94 HB, TÜV certified |
| Compliance | RoHS compliant, PWIS conformity |
| Application | Pneumatic Automation System |
