MSFW-230-50/60
Product Overview

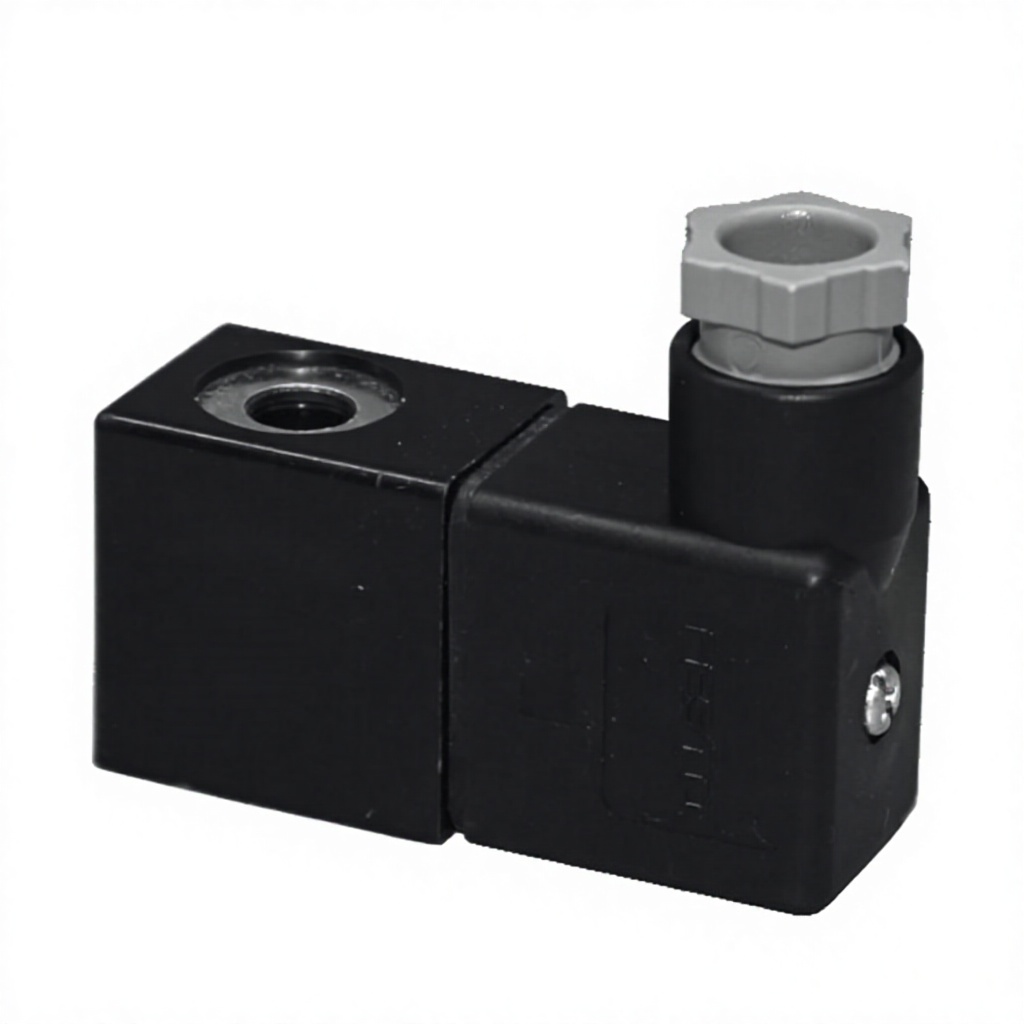

Festo MSFW-230-50/60 (Part No.4540) is an AC solenoid coil specially designed for Festo pneumatic solenoid valves. Rated 230V AC 50/60Hz, with stable electromagnetic performance, IP65 dustproof and waterproof rating, suitable for continuous long-time operation in industrial workshop environments.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | MSFW-230-50/60 |
| Part Number | 4540 |
| Product Type | Solenoid Coil |
| Rated Voltage | 230V AC |
| Frequency | 50/60 Hz |
| Pick-up Power | 9.0 VA |
| Holding Power | 7.0 VA |
| Power Factor (cos phi) | 0.7 |
| Voltage Tolerance | ±10% |
| Frequency Tolerance | ±5% |
| Duty Cycle | 100% continuous |
| Min. Pick-up Time | 10 ms |
| Electrical Connection | 3-pin, for MSSD-F plug |
| Mounting Type | Knurled nut mounting |
| Protection Class | IP65 |
| Ambient Temperature | -5 ~ +40 ℃ |
| Weight | 55 g |
| Housing Material | Duroplast |
| Winding Material | Copper |
| CRC Class | CRC 1 |
| LABS(PWIS) | VDMA24364-C1-L |
| Certification | CE, UKCA |
| RoHS | Compliant |
| Original/New | New Original |
