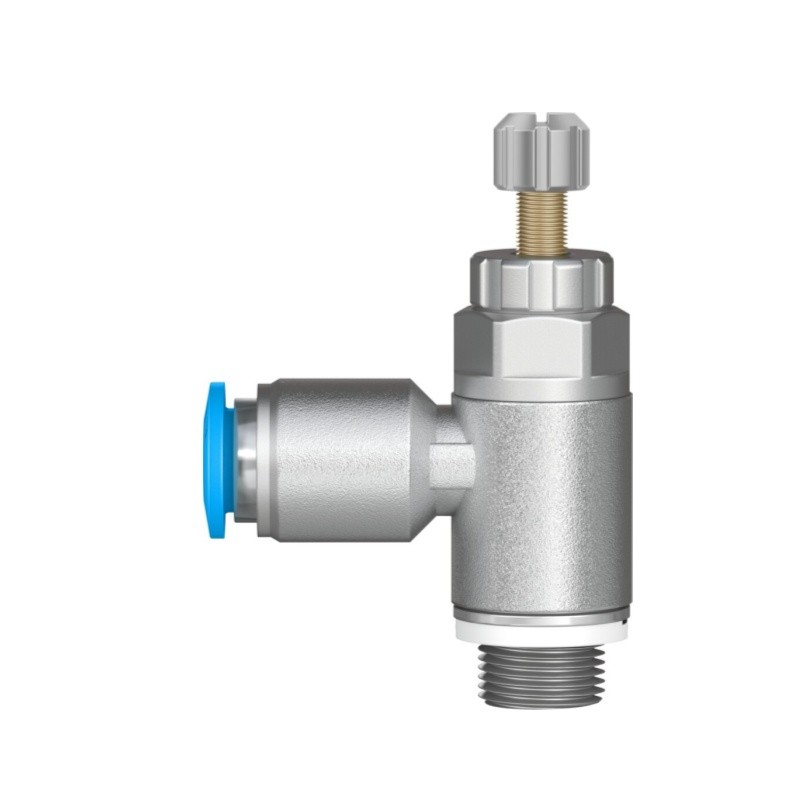

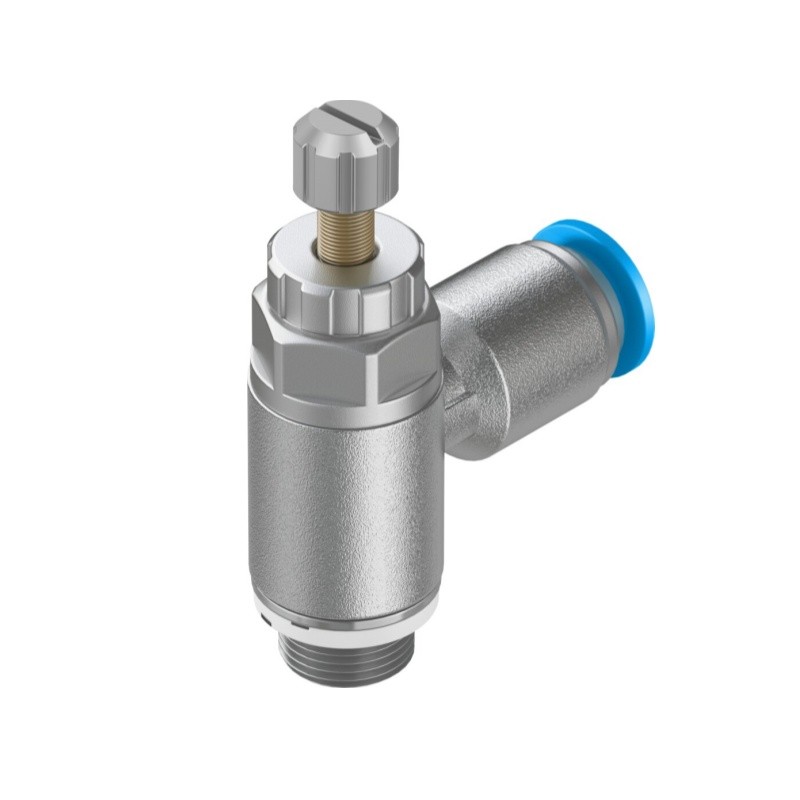

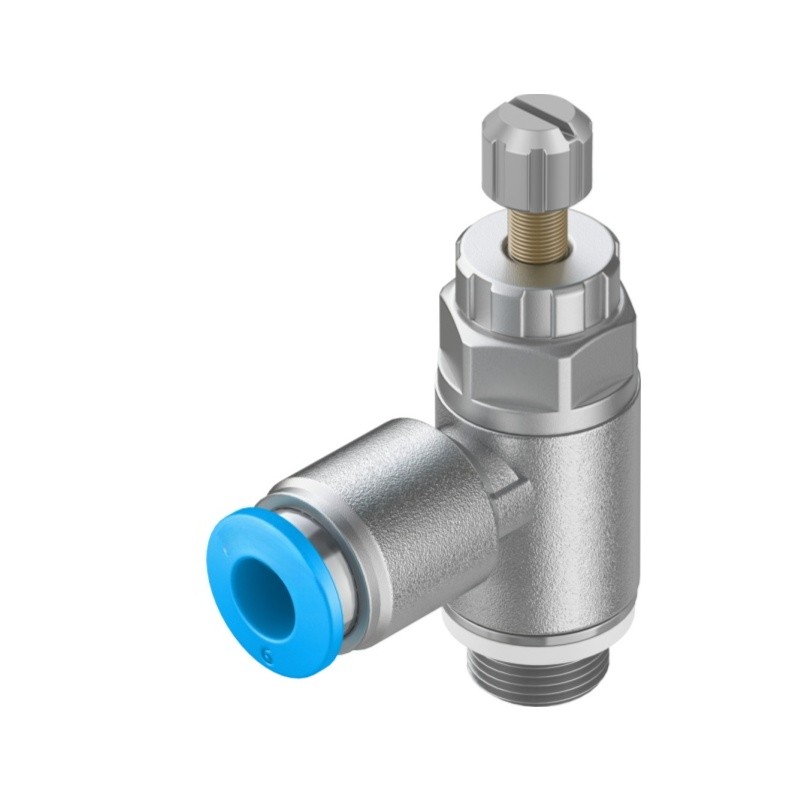

GRLA-1/8-QS-6-RS-D
Product Overview
FESTO GRLA-1/8-QS-6-RS-D belongs to GRLA series exhaust one-way flow control valve. It adopts exhaust throttling principle to adjust cylinder movement speed. Port 2 is G1/8 male thread screwed onto cylinder, port1 QS-6 quick push-in connector for 6mm air tube. RS variant comes with rotatable swivel joint for convenient tube routing. Knurled screw for manual flow setting. In throttle direction, air flow is adjustable; in reverse direction, check valve opens for free air passage. LABS(PWIS) compliant, suitable for paint workshop and general automation. Lightweight screw-in design, any installation orientation, widely used for speed regulation of pneumatic cylinders.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | GRLA-1/8-QS-6-RS-D |
| Order No. | 197581 |
| Product Series | GRLA |
| Product Type | Exhaust Air One-Way Flow Control Valve / Speed Controller |
| Valve Function | Exhaust throttling + non-return check function |
| Pneumatic Port | Port 1: QS-6 push-in fitting (φ6mm tube); Port2: G1/8 male thread |
| Adjustment Element | Knurled adjusting screw |
| Nominal Flow (throttle direction) | 185 l/min |
| Nominal Flow (free check direction) | 160 ~ 240 l/min |
| Operating Pressure | 0.2 ~ 10 bar |
| Ambient Temperature | -10 ~ +60 ℃ |
| Medium Temperature | -10 ~ +60 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4], lubricated air optional |
| Housing Material | Wrought aluminium alloy, die-cast zinc swivel joint |
| Adjustment Screw | High-alloy stainless steel |
| Seal Material | NBR |
| Feature | RS: rotatable swivel joint; LABS(PWIS) compliant VDMA24364-B1/B2-L, screw-in mounting, adjust cylinder speed by exhaust throttling |
| Mounting | Screw-in type, any mounting position |
| Tightening Torque | 3 Nm |
| Weight | 23 g |
| Certificate | RoHS |
| Origin | Germany |
| Condition | New Original |
