QSMT-4
Product Overview

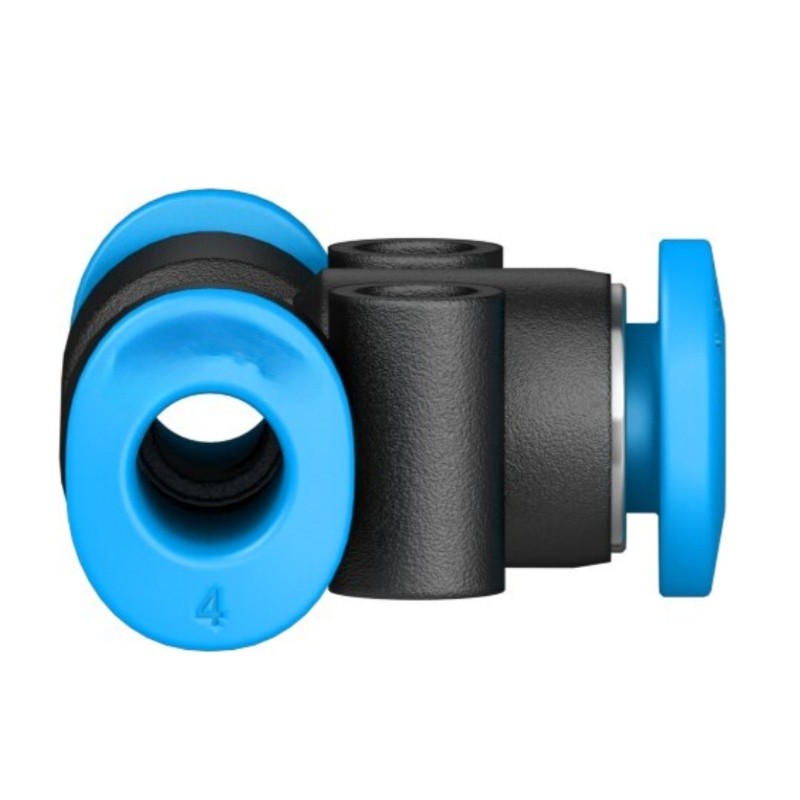

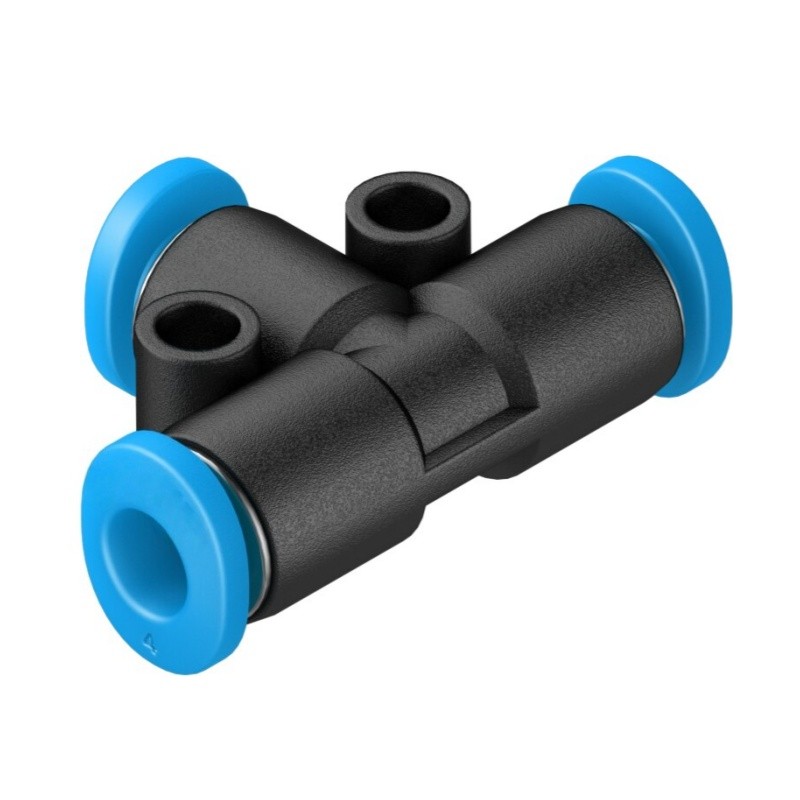

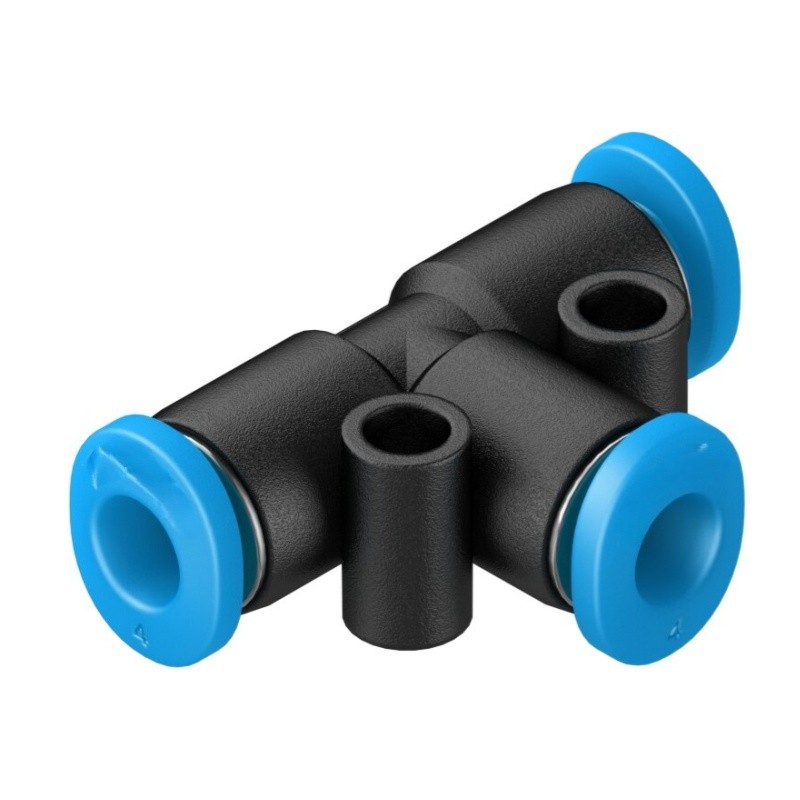

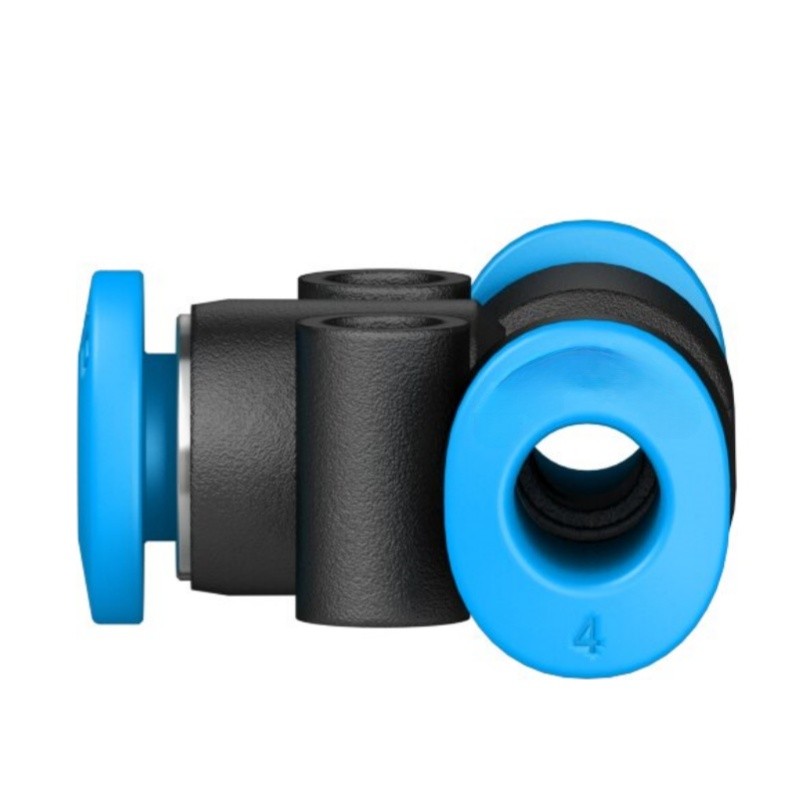

New Original FESTO QSMT-4 belongs to QSMT mini series T-type push-in fitting. Three ports fit pneumatic tubing with OD 4mm, nominal width 2.4mm. Push-pull quick connection design, easy tube insertion and removal without tools. PBT fitting body, blue POM release ring and NBR seal. Operating pressure -0.95~14 bar, ambient temperature -10~+80℃. LABS(PWIS) compliant VDMA24364-B1/B2-L, suitable for lithium battery, packaging and paint workshop automation. Compact mini size, used for 3-way shunt of pneumatic pipelines in limited installation space.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | QSMT-4 |
| Order No. | 153366 |
| Product Series | QSMT |
| Product Type | Mini T-type push-in pneumatic fitting |
| Connection | Three ports for tubing OD 4 mm |
| Nominal width | 2.4 mm |
| Operating pressure | -0.95 ~ 14 bar |
| Ambient Temperature | -10 ~ +80 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:-:-] |
| Housing material | PBT |
| Release ring | POM, blue |
| Seal material | NBR |
| Feature | LABS(PWIS) compliant VDMA24364-B1/B2-L；mini T-branch push-in connector, push-pull quick connection, compact for narrow installation space, 3-way air pipeline shunt |
| Mounting | Any mounting position |
| Corrosion Resistance Class | CRC1 |
| Weight | 3.3 g |
| Certificate | RoHS |
| Origin | Germany |
| Condition | New Original |
