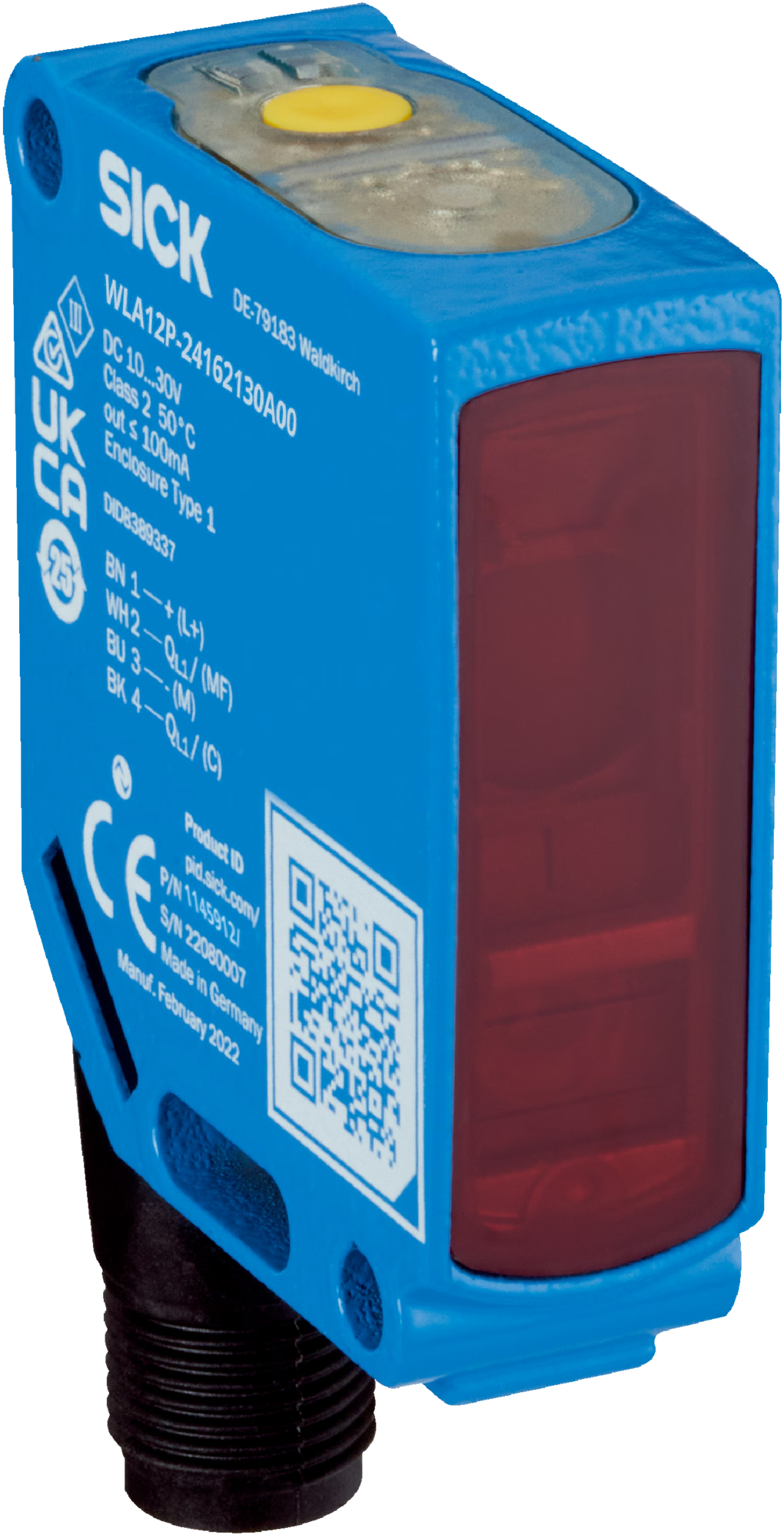

WLG12P-24162120A00ZDZZZZZZZZZ1
Product Details
The SICK WLG12P-24162120A00ZDZZZZZZZZZ1 is a brand-new original retro-reflective photoelectric sensor belonging to the W12 series. It is equipped with visible red LED light source and runs on 10–30 V DC power supply, featuring push-pull PNP/NPN output and switchable Light-ON / Dark-ON function. This sensor supports IO-Link digital communication for convenient parameter setting and condition monitoring. It has multiple protection ratings of IP67, IP66 and IP69K, maintaining reliable operation in harsh industrial environments with a maximum sensing range of 7.6 meters.
Constructed with robust zinc die-cast rectangular metal housing and fitted with M12 4-pin connector, it detects objects once the light beam between sensor and reflector is interrupted.
This sensor is widely used for object detection on packaging machinery, conveyor belts and material handling automated production lines. Each unit undergoes strict pre-shipment quality inspection and comes with CE certification. We supply genuine SICK sensors with MOQ of 1 piece and provide stable global shipping services to meet your factory automation demands.
| 属性名称 | 属性值 |
|---|---|
| Brand | SICK |
| Model | WLG12P-24162120A00ZDZZZZZZZZZ1 |
| Product Name | Photoelectric Sensor |
| Product Type | Retro-reflective Photoelectric Sensor |
| Series | W12 Series |
| Working Principle | Retro-reflective detection |
| Light Source | Visible Red LED |
| Housing Material | Zinc die-cast metal |
| Shape | Rectangular |
| Dimension(W×H×D) | 15.8mm × 49.2mm × 43.1mm |
| Connection | M12 4-pin connector |
| Output Type | Push-pull(PNP/NPN), Light-ON / Dark-ON switchable |
| Supply Voltage | 10 … 30 V DC |
| IP Rating | IP67 / IP66 / IP69K |
| Ambient Temperature | -40℃ ~ +60℃ |
| Sensing Range | Up to 7.6 m |
| Interface | IO-Link |
| Net Weight | 0.22 kg |
| Gross Weight | 0.27 kg |
| Origin | Germany |
| Condition | Brand New Original |
| Application | Object detection, packaging machinery, conveyor automation, material handling |
| Certificate | CE |
| MOQ | 1 Piece |
