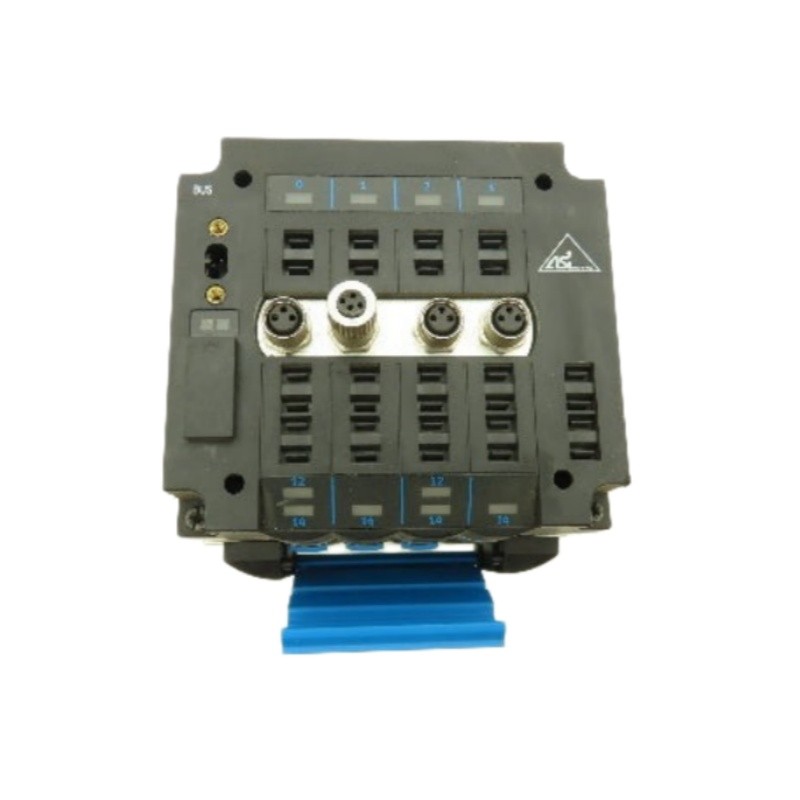

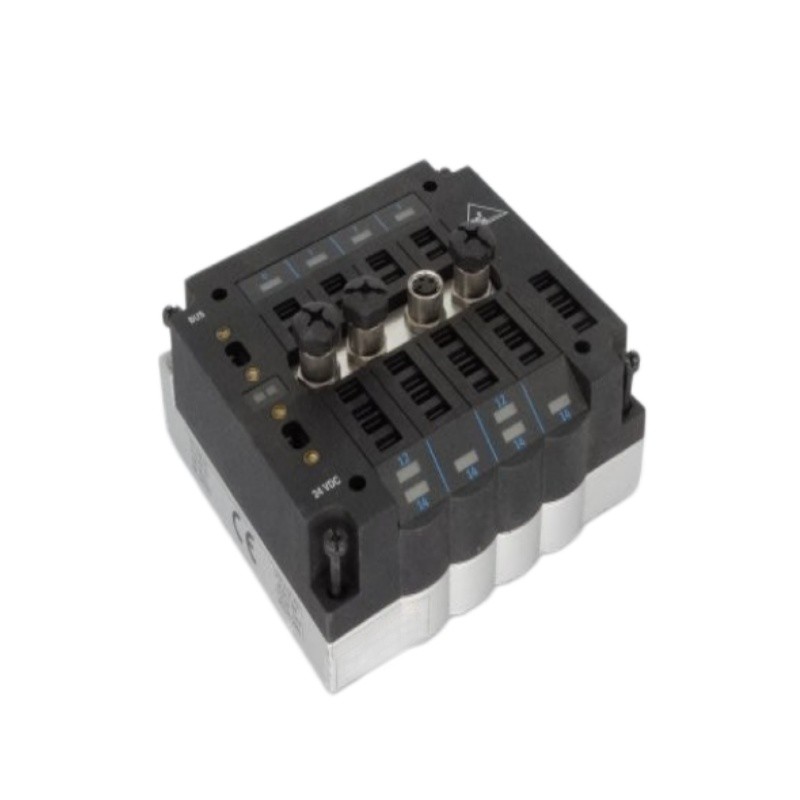

CPV14-GE-ASI-4E4A- M8
Product Overview
FESTO CPV14-GE-ASI-4E4A-M8 is AS-Interface bus electrical interface for CPV14 valve terminal. It acts as AS-i bus slave node, provides 4 digital PNP inputs and 4 digital PNP outputs to connect sensors and control CPV14 solenoid valves. M8 connector for auxiliary load power, AS-i flat cable for bus communication. Integrated watchdog function, will reset valve outputs once AS-i communication interrupted. Multi LED diagnosis for bus, power and fault status. IP65 protection, LABS(PWIS) compliant, suitable for lithium battery and paint workshop automation. Installed on the end plate of CPV14 valve terminal
| 属性 | 值 |
|---|---|
| Brand | FESTO |
| Model | CPV14-GE-ASI-4E4A-M8 |
| Order No. | 552561 |
| Product Series | CPV14 |
| Product Type | AS-Interface Bus Electrical Interface / Valve Terminal Bus Node |
| Bus Protocol | AS-Interface (AS-i) |
| I/O Configuration | 4 digital Inputs (4E), 4 digital Outputs (4A), PNP type |
| Rated Voltage | AS-i bus DC26.5V；负载电压 DC24V（DC21.6~26.4V） |
| Electrical Connection | M8 round connector for auxiliary power, AS-i flat cable connection |
| Input Spec | IEC61131-2 Type02, PNP, response time ~3ms |
| Watchdog | Built-in watchdog, communication loss will reset valve outputs |
| Indication | Multi LED：AS-i bus status, power, fault, input & valve switching status |
| Protection Class | IP65 (when connector fully mounted) |
| Ambient Temperature | -5 ~ +50 ℃ |
| Medium | Compressed air for matched CPV14 valve terminal |
| Housing Material | Die-cast aluminium, reinforced PA cover, seal NBR/CR |
| Feature | LABS (PWIS) compliant VDMA24364-B1/B2-L；适配 CPV14 阀岛 14mm 阀片；支持 AS-i 地址 0~31A/31B；反极性保护；总线型阀岛 IO 节点；RoHS |
| Mounting | Mount on CPV14 valve terminal end plate |
| Corrosion Resistance Class | CRC2 |
| Weight | 233 g |
| Certificate | CE, RoHS |
| Origin | Germany |
| Condition | New Original |
