2125493 DSBC-63-70-PPVA-N3
Product Overview
Item No: 2125493 Model: DSBC-63-70-PPVA-N3 Brand: Festo Type: ISO Standard Pneumatic Cylinder

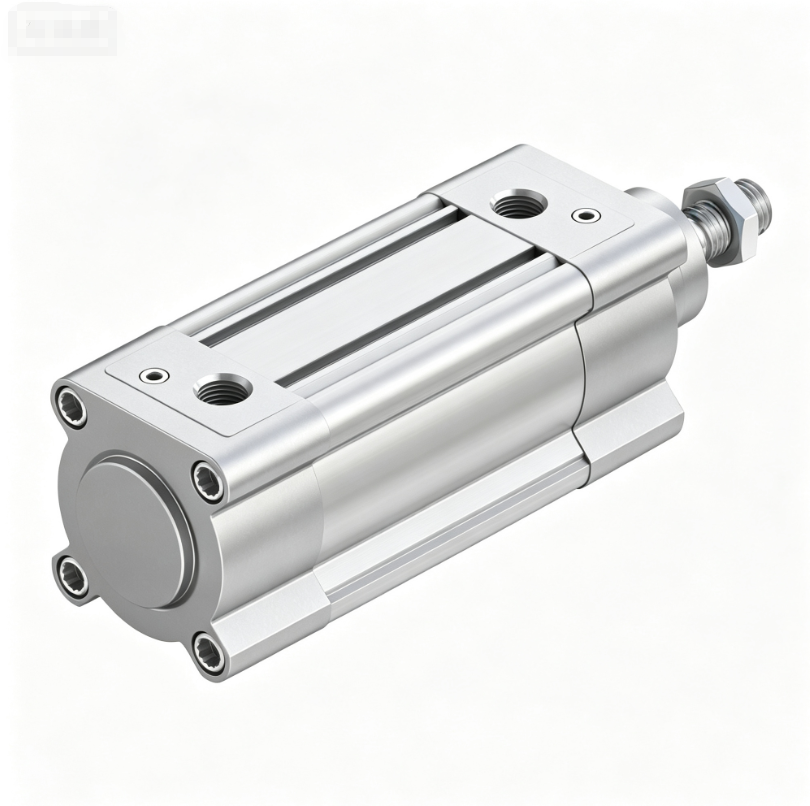

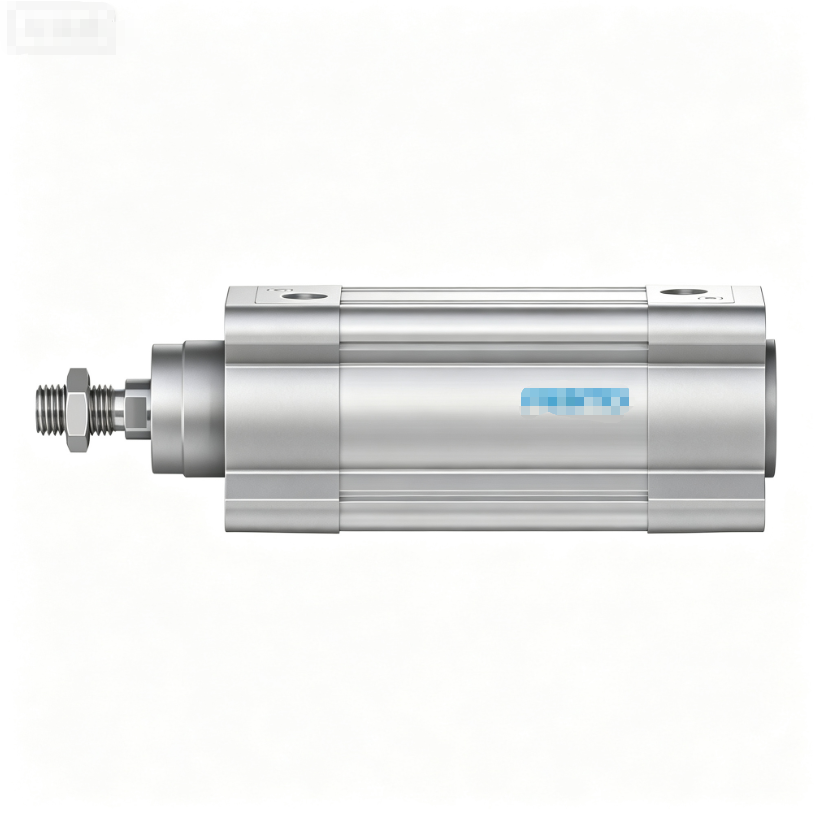

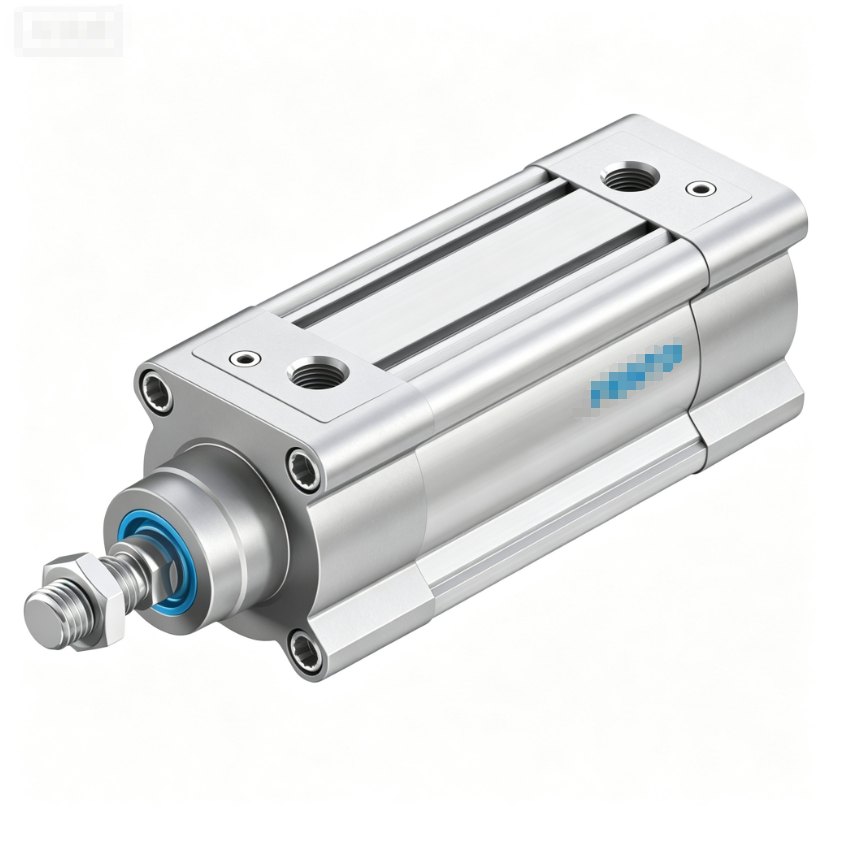

Festo DSBC-63-70-PPVA-N3 pneumatic cylinder (2125493) belongs to DSBC ISO15552 standard cylinder series. Double acting type, bore 63mm, stroke 70mm. PPVA stands for adjustable pneumatic cushion on both ends to reduce impact and noise at stroke ends. N3 means CRC3 high corrosion resistance. Multiple mounting accessories are available for different installation requirements, widely used as main pneumatic actuator in industrial automation.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | DSBC-63-70-PPVA-N3 |
| Part No. | 2125493 |
| Type | ISO Standard Pneumatic Cylinder |
| Series | DSBC |
| Bore | 63 mm |
| Stroke | 70 mm |
| Action | Double acting |
| Cushion | PPVA: adjustable pneumatic cushioning both ends |
| Port Size | G3/8 |
| Working Pressure | 0.1 ~ 1.0 MPa (1 ~ 10 bar) |
| Theoretical force @6bar | 1870 N |
| Medium | Compressed air ISO 8573-1:2010 [7:-:-] |
| Ambient Temperature | -20 ~ +80 ℃ |
| Material | Aluminum alloy barrel, steel piston rod, PU/NBR seals |
| Feature | N3: corrosion resistance CRC3, adjustable end cushion, ISO 15552 |
| Standard | ISO 15552 |
| Mounting | Multiple mounting options |
| Condition | New Original |
