187857 SLG-8-200-YSR-A
Product Overview
Item No: 187857 Model: SLG-8-200-YSR-A Brand: Festo Type: Rodless Pneumatic Linear Slide

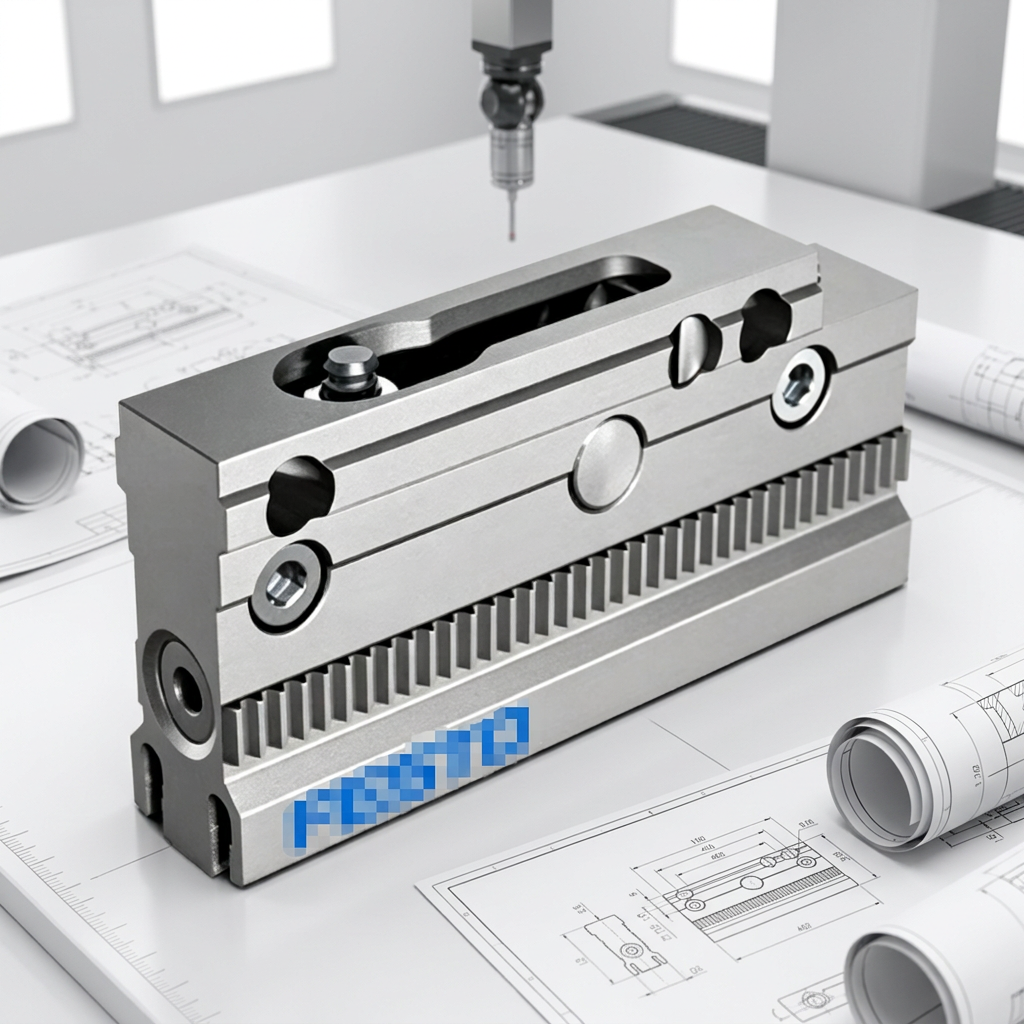

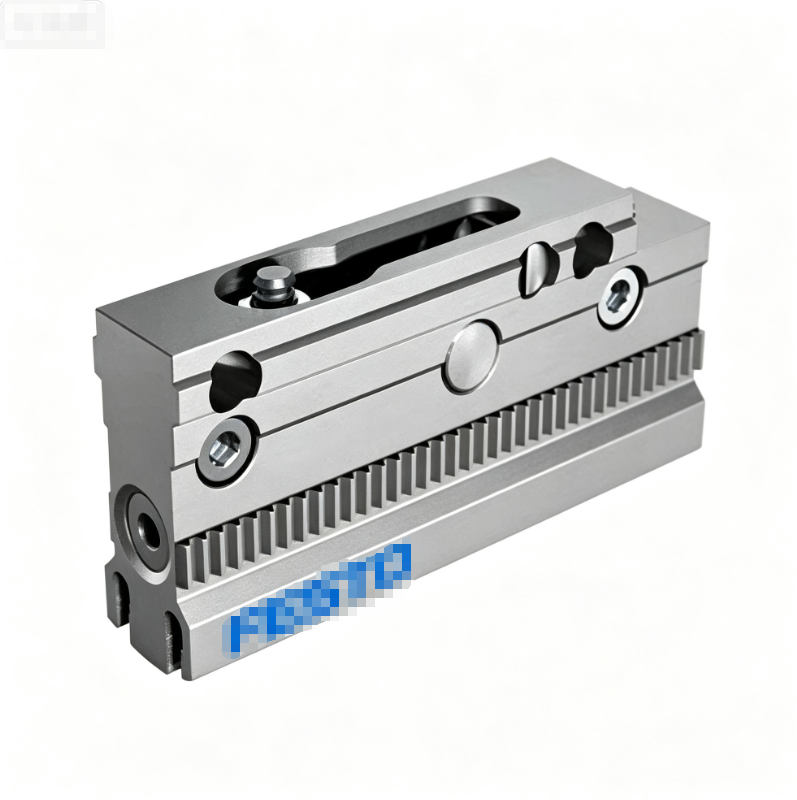

Festo SLG-8-200-YSR-A rodless linear slide (187857) belongs to SLG lightweight rodless cylinder series. Double acting with 8mm bore and 200mm stroke. YSR means integrated hydraulic shock absorbers at both ends for gentle deceleration. A version has sensor slot for mounting proximity switches to detect slide position. Rodless structure greatly reduces total installation length compared with conventional cylinders, suitable for light duty linear transfer tasks.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | SLG-8-200-YSR-A |
| Part No. | 187857 |
| Type | Rodless Pneumatic Linear Slide |
| Series | SLG |
| Bore | 8 mm |
| Stroke | 200 mm |
| Action | Double acting |
| Cushion | YSR: adjustable hydraulic shock absorber at both ends |
| Feature | A: slot for proximity sensors |
| Port Size | M5 |
| Working Pressure | 0.2 ~ 0.8 MPa (2 ~ 8 bar) |
| Theoretical force @6bar | 30 N |
| Medium | Compressed air ISO 8573-1:2010 [7:-:-] |
| Ambient Temperature | -10 ~ +60 ℃ |
| Material | Aluminum alloy profile, stainless steel sealing band, PUR seals |
| Max Speed | 1.5 m/s |
| Mounting | Any mounting position |
| Condition | New Original |
