SDAT-MHS-M100-1L-SA-E-0,3-M8
Product Overview

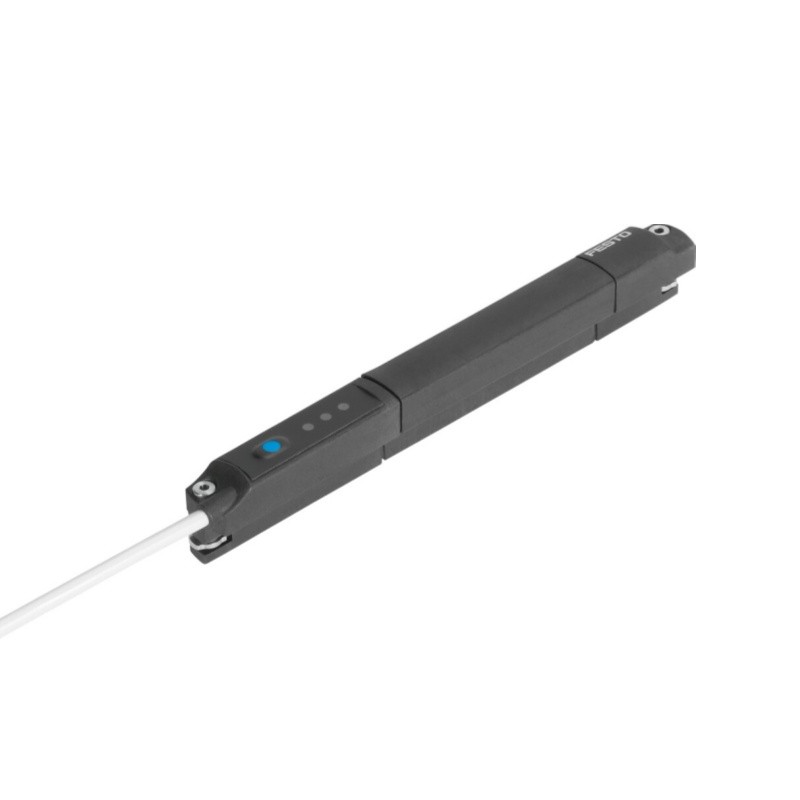

FESTO SDAT-MHS-M100-1L-SA-E-0,3-M8 belongs to SDAT-MHS T-slot magnetic Hall position transmitter series. It is inserted from above into cylinder T-slot to continuously detect piston magnet position. Measuring range 0~100mm, resolution 0.05mm. SA variant provides 4~20mA analog current signal and IO-Link COM3 communication, also supports programmable PNP switch point. 0.3m PUR drag-chain cable with M8 4-pin connector, LED status indication, IP68 protection, reverse polarity protection. LABS(PWIS) compliant, oil resistant and halogen-free. Any installation orientation, widely used for continuous position closed-loop feedback of pneumatic cylinders in lithium battery and paint shop automation.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | SDAT-MHS-M100-1L-SA-E-0,3-M8 |
| Order No. | 1531267 |
| Product Series | SDAT-MHS |
| Product Type | Magnetic Hall T-slot Position Transmitter |
| Measuring Principle | Hall magnetic sensing |
| Measuring Range | 0 ~ 100 mm |
| Resolution | 0.05 mm |
| Output | SA: 4~20mA analog + IO-Link COM3, PNP switchpoint programmable |
| Rated Voltage | DC24V |
| Operating Voltage Range | DC15 ~ 30V |
| Electrical Connection | M8 4-pin plug, cable length 0.3m |
| Cable Feature | E: drag chain / robot cable, TPE-U(PUR) grey sheath |
| Indication | L: LED status indicator |
| Protection Class | IP65, IP68 |
| Ambient Temperature | -20 ~ +70 ℃ |
| Max Current | 100 mA |
| IO-Link Cycle Time | Min 1 ms |
| Mounting | T-slot top insert + screw clamping, any mounting position |
| Housing Material | Polyester, high-alloy stainless steel, nickel-plated brass union nut |
| Feature | Programmable measuring range, reverse polarity protection, halogen-free, oil resistant, LABS(PWIS) compliant VDMA24364-B2-L, compatible with ISO15552 / DSNU T-slot cylinders |
| Corrosion Resistance Class | CRC2 |
| Weight | 26 g |
| Certificate | CE, RoHS, UKCA, RCM, cULus |
| Origin | Germany |
| Condition | New Original |
