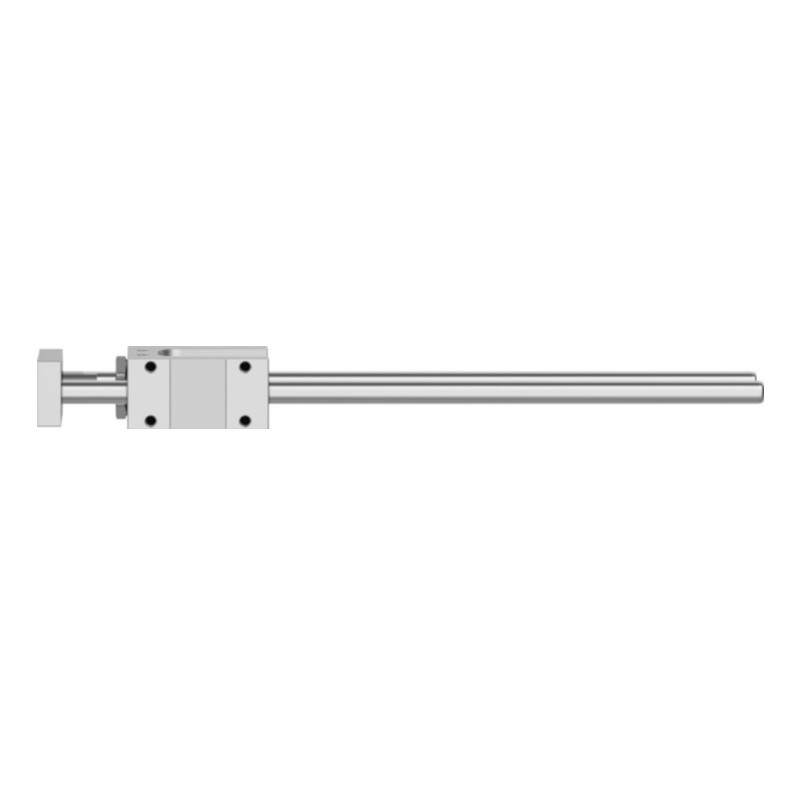

FEN-12/16-200-GF
Product Overview

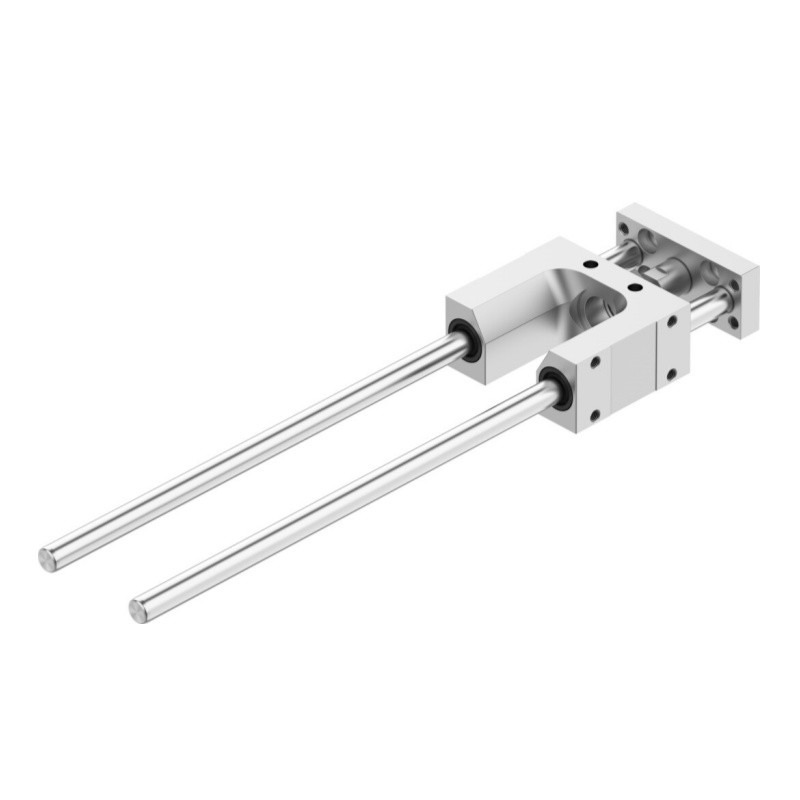

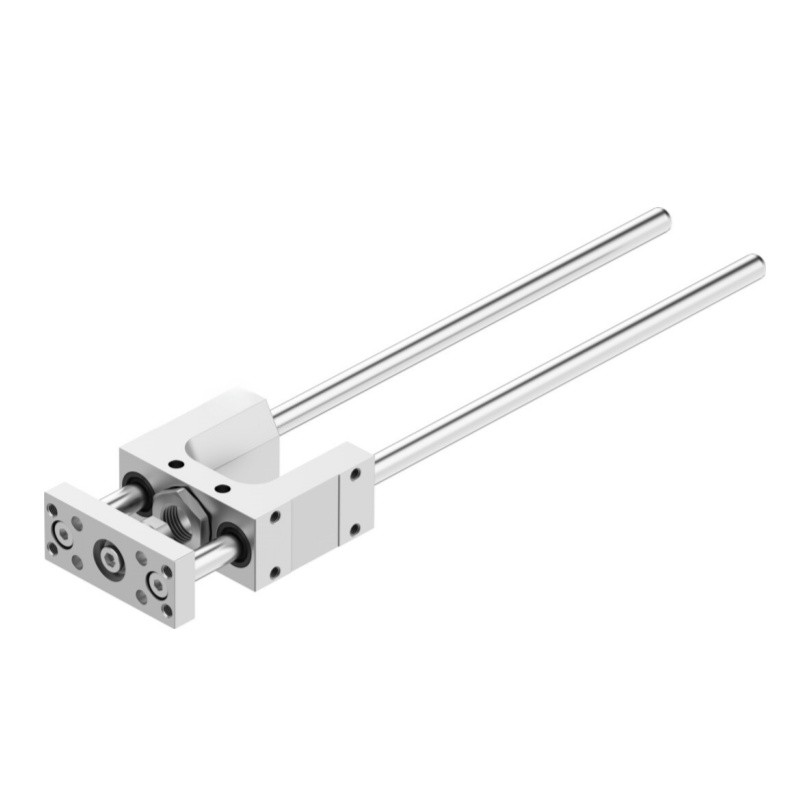

FESTO FEN-12/16-200-GF belongs to FEN guide unit series, GF plain sliding bearing type. It is matched with ISO6432 DSNU cylinder (bore 12/16mm), stroke 200mm. The guide unit prevents piston rod rotation and bears lateral force and torque during movement. Displacement force 15N, can withstand side load up to 520N and torque 12Nm. Housing is hard anodized aluminium, high-alloy steel sliding bushing. LABS(PWIS) compliant, suitable for paint workshop and lithium battery automation. Any installation orientation, widely used for pick & place and workpiece handling pneumatic linear motion.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | FEN-12/16-200-GF |
| Order No. | 19168 |
| Product Series | FEN |
| Product Type | Pneumatic Guide Unit for ISO6432 Cylinder |
| Guide Type | GF: Plain bearing sliding guide（滑动轴承导向） |
| Size | 12/16（适配缸径 12mm /16mm DSNU 气缸） |
| Nominal Stroke | 200 mm |
| Displacement Force | 15 N |
| Max Side Force Fy/Fz | 520 N; static max 830 N |
| Max Torque Mx | 12 Nm; static max 20 Nm |
| Ambient Temperature | -20 ~ +80 ℃ |
| Housing Material | Wrought aluminium alloy, hard anodized |
| Guide Bushing | High-alloy steel plain bearing |
| Yoke Plate | Hard anodized aluminium |
| Moving Mass | 401 g |
| Total Weight | 730 g |
| Feature | LABS(PWIS) compliant VDMA24364-B2-L, anti-torsion protection for DSNU cylinder, absorbs lateral load, internal thread mounting, compatible with ISO6432 DSNU series cylinder |
| Mounting | Any mounting position, internal thread mounting |
| Corrosion Resistance Class | CRC2 |
| Certificate | RoHS |
| Origin | Germany |
| Condition | New Original |
