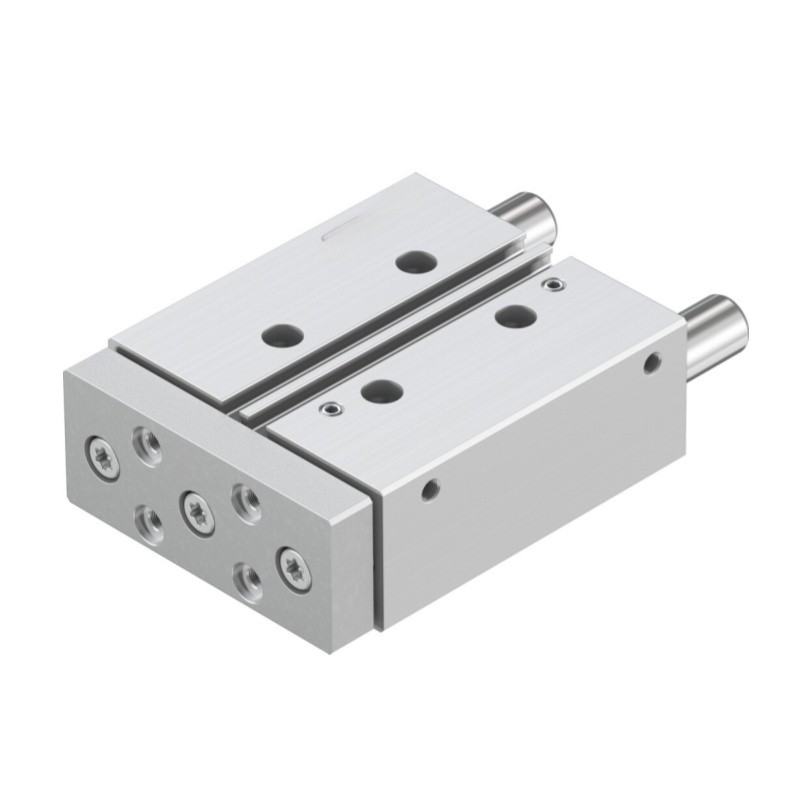

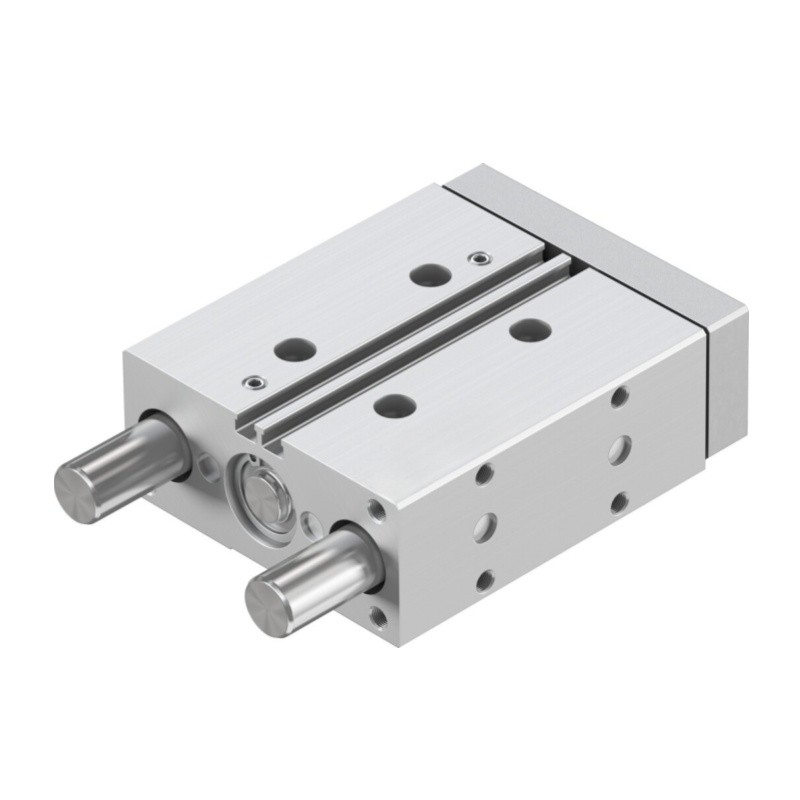

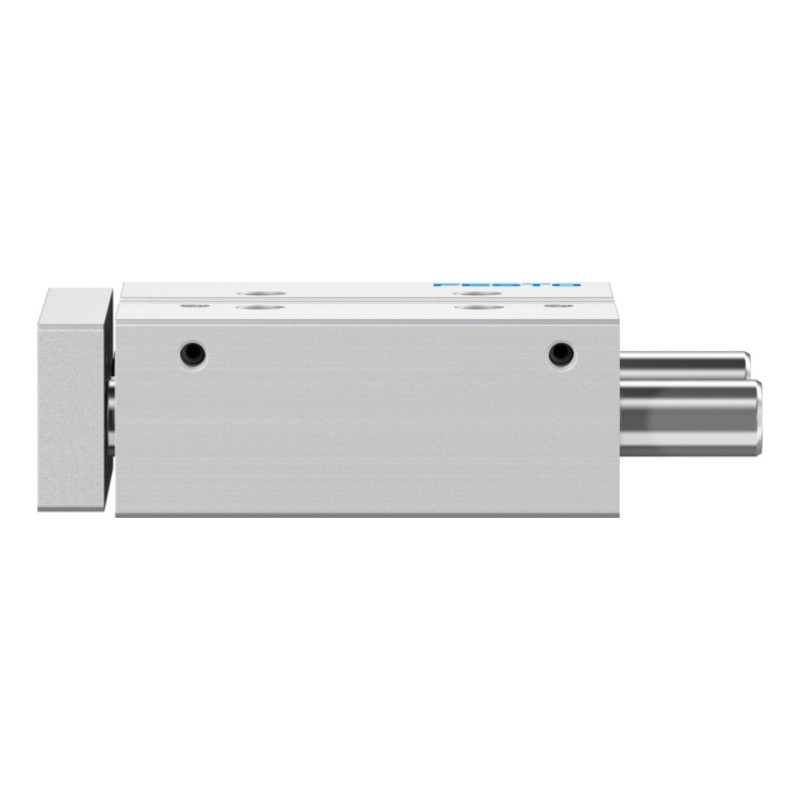

DFM-20-50-P-A-GF
Product Overview
FESTO DFM-20-50-P-A-GF belongs to DFM integrated guided drive series, double acting design. Bore 20mm, working stroke 50mm, GF sliding plain bearing guide. P means both sides equipped with elastic cushion rings for impact absorption. Built-in T-slot for magnetic proximity sensor installation. Dual guide rod + yoke plate construction, anti-torsion and high lateral load capacity. Hard anodized aluminium body, high-alloy stainless steel guide rods. LABS(PWIS) compliant, suitable for lithium battery and paint workshop automation. Supports multiple mounting options and any installation orientation, widely used for clamping, workpiece pick & place, stopper and linear pushing/pulling motion.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | DFM-20-50-P-A-GF |
| Order No. | 170844 |
| Product Series | DFM |
| Product Type | Double-acting guided pneumatic drive / Guided rod cylinder |
| Action Type | Double acting |
| Bore | 20 mm |
| Stroke | 50 mm |
| Air Port | M5 |
| Guide Type | GF: Plain bearing sliding guide（滑动轴承导向） |
| Cushioning | P: Elastic cushion rings at both ends（两端弹性缓冲，不可调） |
| Version A | Built-in T-slot for magnetic proximity sensor |
| Theoretical Force @6bar | Advance 188 N, Retract 141 N |
| Operating Pressure | 2 ~ 10 bar |
| Max Speed | 0.8 m/s |
| Max Side Force Fy/Fz | 709.3 N（static 709.3 N） |
| Max Torque Mx | 20.57 Nm（static 20.57 Nm） |
| Ambient Temperature | -20 ~ +80 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4], lubricated or non-lubricated |
| Barrel & Yoke Plate | Hard-anodized wrought aluminium alloy |
| Guide Rod | High-alloy stainless steel |
| Seal Material | NBR / HNBR |
| Feature | LABS (PWIS) compliant VDMA24364-B1/B2-L；一体式导向结构，抗扭转、承受侧向负载；多安装方式；免维护导向 |
| Mounting | Any mounting position, through-hole & internal thread mounting |
| Corrosion Resistance Class | CRC1 |
| Moving Mass | 582 g |
| Total Weight | 1158 g |
| Certificate | CE, RoHS |
| Origin | Germany |
| Condition | New Original |
