QSRL-G1/8-8
Product Overview

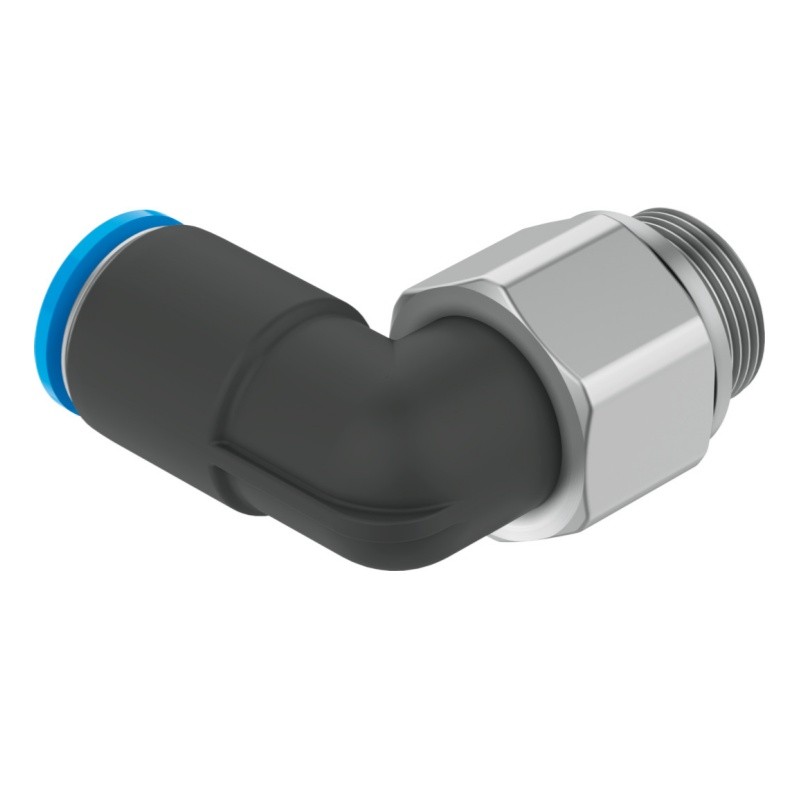

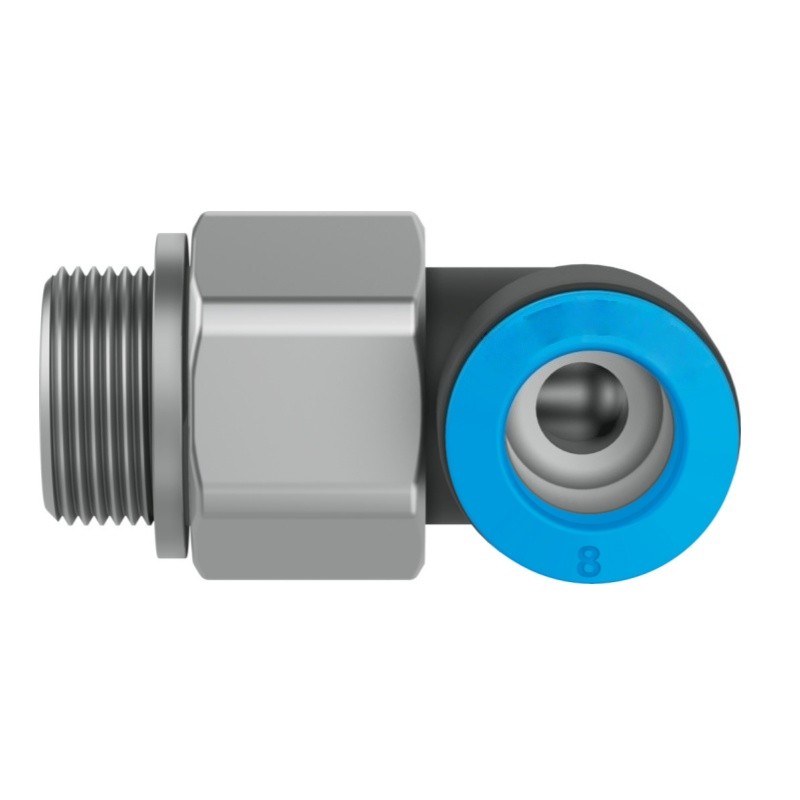

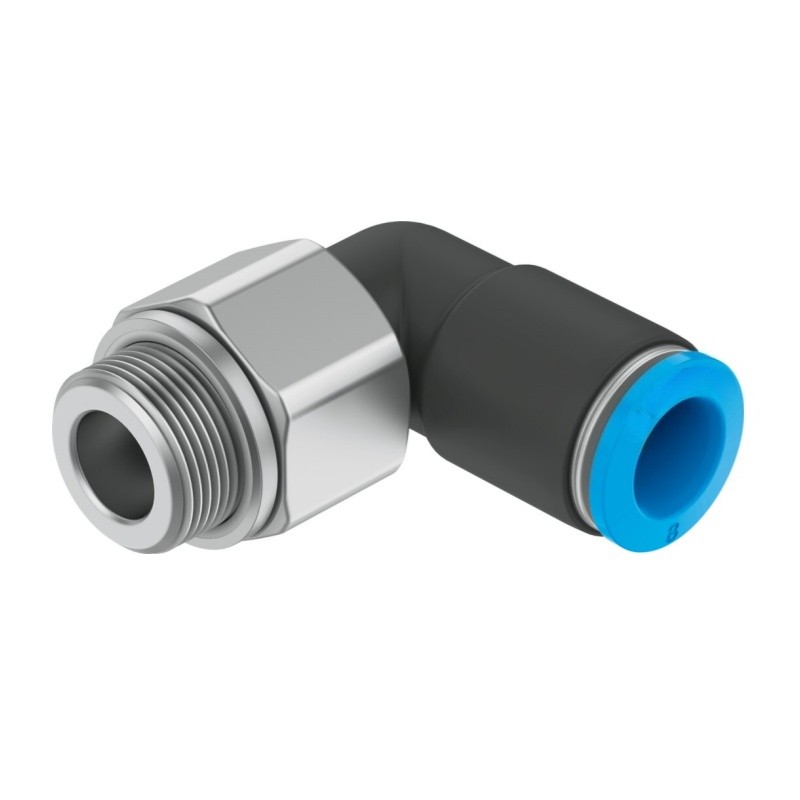

New Original FESTO QSRL-G1/8-8 belongs to QSRL series rotatable L-type push-in fitting. It adopts G1/8 external male thread and connects pneumatic tubing with OD 8mm. Nominal width is 4.6mm, operating pressure -0.95~14 bar. The fitting body is nickel-plated brass, release ring POM, NBR seal. 360° freely rotatable design, tool-free push-in quick connection for tubing assembly and disassembly. Stable sealing and good vibration resistance, long service life. LABS(PWIS) compliant VDMA24364-B1/B2-L, suitable for lithium battery, packaging and paint workshop automation. Widely used for valve terminal, pneumatic cylinder and pneumatic pipeline connection.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | QSRL-G1/8-8 |
| Order No. | 186288 |
| Product Series | QSRL |
| Product Type | Rotatable L-type push-in pneumatic fitting |
| Port 1 | External thread G1/8 |
| Port 2 | For tubing OD 8 mm |
| Nominal width | 4.6 mm |
| Operating pressure | -0.95 ~ 14 bar |
| Ambient Temperature | 0 ~ 60 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:-:-] |
| Housing material | Nickel-plated brass / POM release ring |
| Seal material | NBR |
| Feature | LABS(PWIS) compliant VDMA24364-B1/B2-L；360° rotatable, push-in quick connect, easy tube assembly, no tool required |
| Mounting | Any mounting position |
| Corrosion Resistance Class | CRC1 |
| Weight | 35 g |
| Certificate | RoHS |
| Origin | Germany |
| Condition | New Original |
