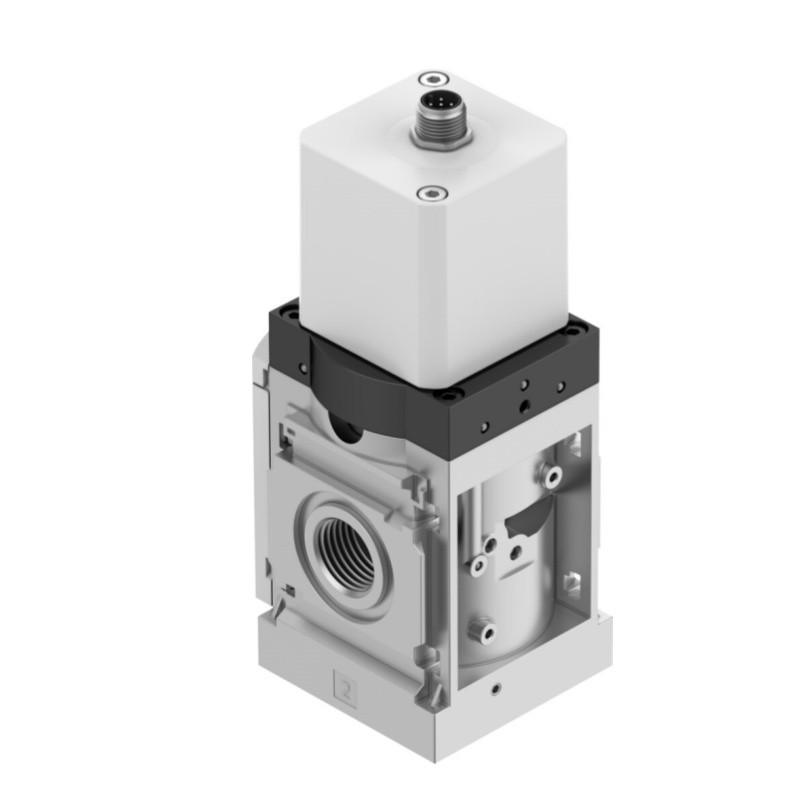

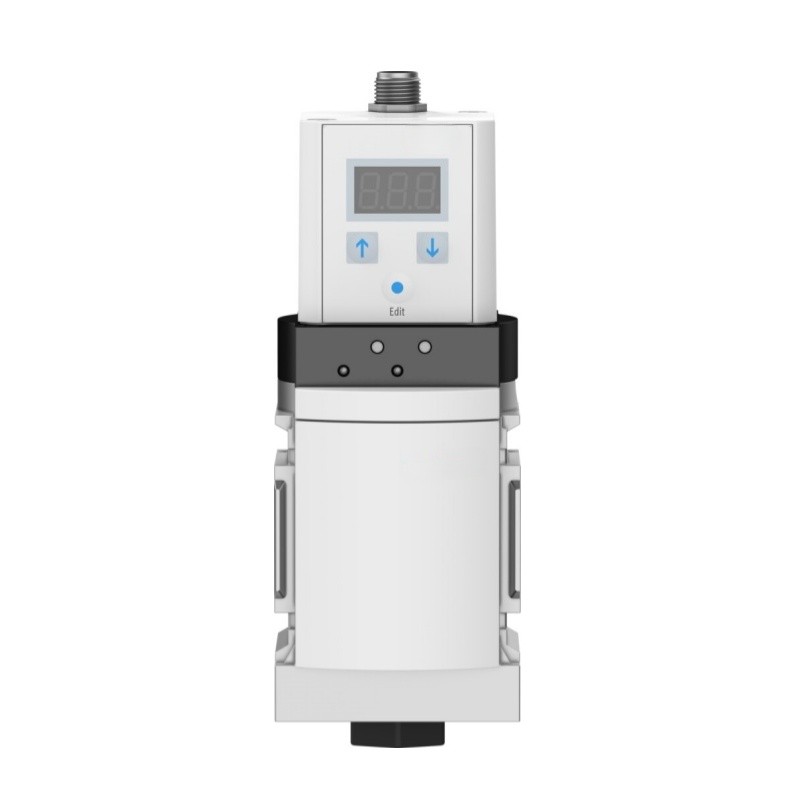

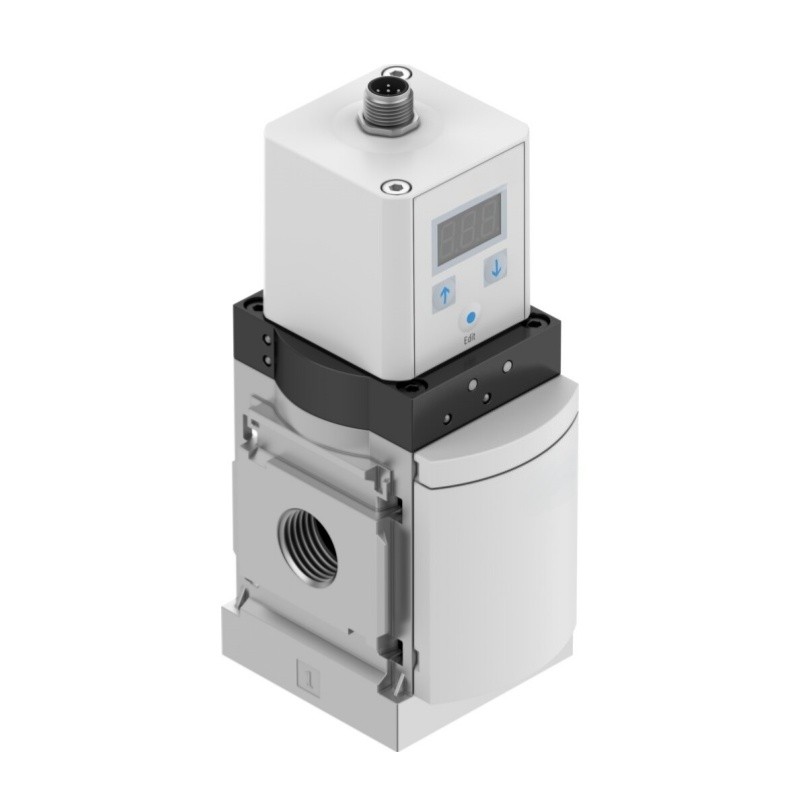

MS6-LRP-1/2-PI10-VS
Product Overview
FESTO MS6-LRP-1/2-PI10-VS belongs to MS6 modular air service unit series, piloted diaphragm precision proportional pressure regulator. 3-way design with secondary exhausting, G1/2 main port, pressure adjustable from 0.1~10bar, controlled by 0~10V analog input signal. Max nominal flow up to 9000 l/min, ultra-low hysteresis max 0.05bar, stable pressure output regardless of inlet pressure fluctuation and air consumption. IP65 protection, LABS(PWIS) compliant, suitable for painting workshop. Modular assembly with MS series filter, regulator and lubricator, widely used for high-precision pressure control in industrial pneumatic automation.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | MS6-LRP-1/2-PI10-VS |
| Order No. | 8203862 |
| Product Series | MS6-LRP |
| Product Type | Piloted Precision Pressure Regulator / Proportional Pressure Reducing Valve |
| Structure | Piloted diaphragm precision control, 3-way with secondary exhausting |
| Pneumatic Port | Port1 G1/2, Port2 G1/2, Gauge port G1/4 |
| Supply Pressure | 6 ~ 11 bar |
| Regulation Range PI10 | 0.1 ~ 10 bar |
| Max Pressure Hysteresis | 0.05 bar |
| Nominal Flow Rate | 9000 l/min (DIN1343) |
| Electrical Signal PI | 0~10V analog input |
| Power Supply | DC24V (21.6~26.4V) |
| Max Power Consumption | 4.2 W |
| Max Current | 0.16 A |
| Protection Class | IP65 (when assembled) |
| Ambient Temperature | 0 ~ +60 ℃ |
| Medium Temperature | 10 ~ +50 ℃ |
| Medium | Compressed air ISO8573-1:2010 [7:4:4], inert gas |
| Housing Material | Aluminium alloy |
| Seal Material | NBR |
| Feature | LABS(PWIS) compliant VDMA24364-B1/B2-L, high precision, secondary exhaust, MS6 modular air service unit |
| Mounting | Any mounting position, modular MS series assembly |
| Weight | 800 g |
| Certificate | CE, RoHS |
| Origin | Germany |
| Condition | New Original |
