VAF-PK-4
Product Overview

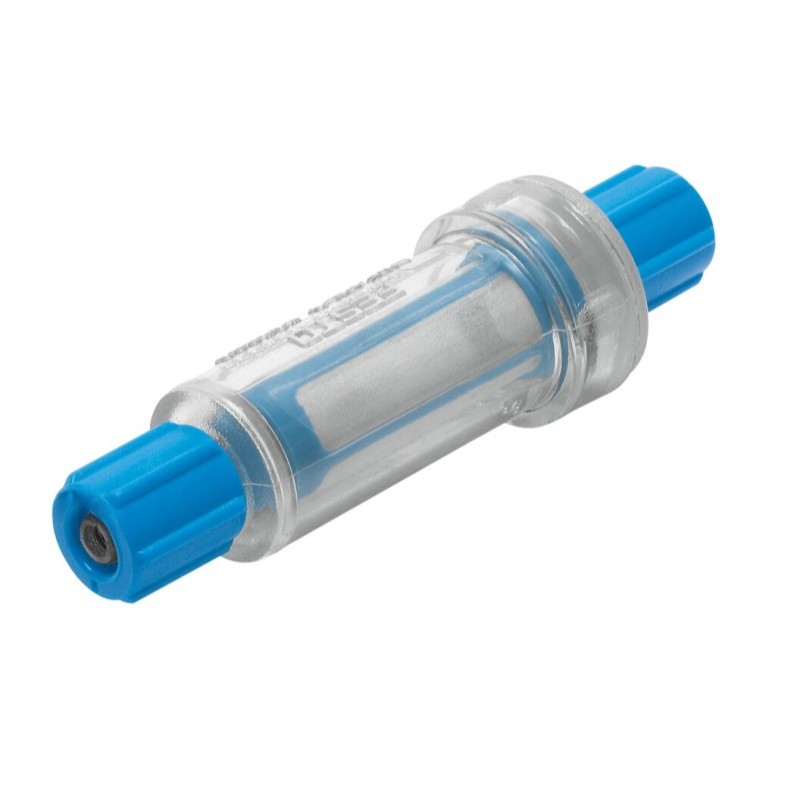

FESTO VAF-PK-4 inline vacuum filter belongs to VAF series, installed directly inside vacuum pipeline to capture particles in suction direction and protect vacuum ejector and vacuum components. Filtration precision 50µm, PK-4 connection with union nut, nominal bore 3mm, flow rate up to 70 l/min at -0.75bar. Transparent PA housing allows direct visual check of filter contamination. PA fabric filter element is non-replaceable. LABS(PWIS) compliant, low copper/zinc/nickel material, suitable for lithium battery production. Only applicable for open vacuum systems, widely used in vacuum pick & place automation equipment.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | VAF-PK-4 |
| Order No. | 15889 |
| Product Series | VAF |
| Product Type | Inline Vacuum Filter / Pneumatic Vacuum Line Filter |
| Pneumatic Connection | PK-4 with union nut |
| Nominal Size | 3 mm |
| Filtration Grade | 50 µm |
| Flow Rate @ -0.75 bar | 70 l/min |
| Operating Pressure | -0.95 ~ 0 bar (Only for open vacuum systems) |
| Ejector Pulse Resistance | ≤8 bar |
| Ambient Temperature | 0 ~ +40 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:-:-] |
| Housing Material | PA (transparent) |
| Union Nut | POM |
| Filter Element | PA fabric |
| Feature | Transparent housing for contamination visual check, non-replaceable filter element, LABS(PWIS) compliant VDMA24364-B1/B2-L, low Cu/Zn/Ni suitable for lithium battery industry |
| Mounting | In-line installation, any mounting position |
| Weight | 6 g |
| Certificate | RoHS |
| Origin | Germany |
| Condition | New Original |
