MS4-LFR-1/4-D6-CRV-AS
Product Overview

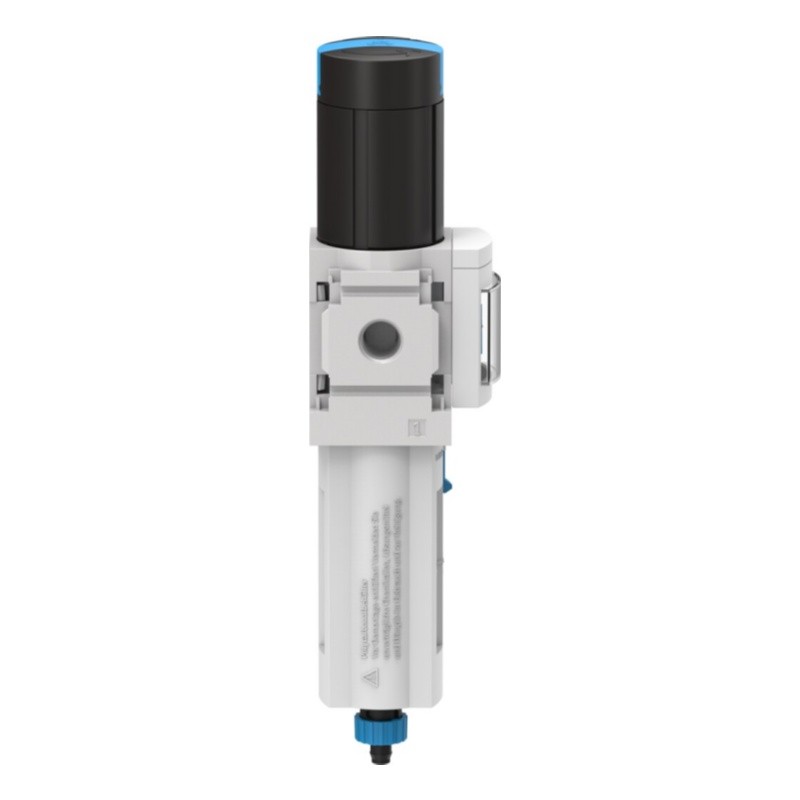

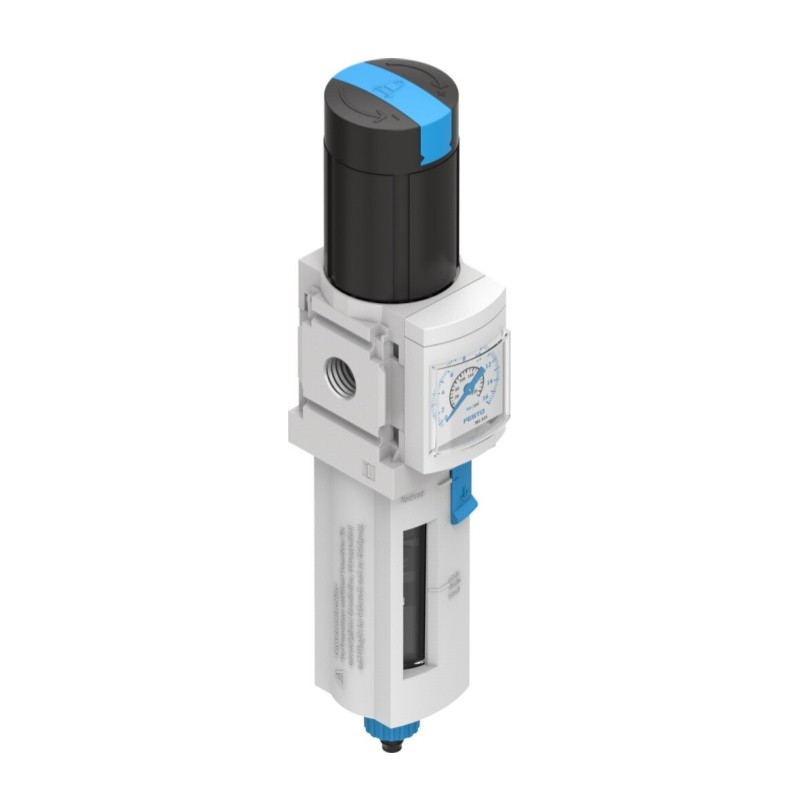

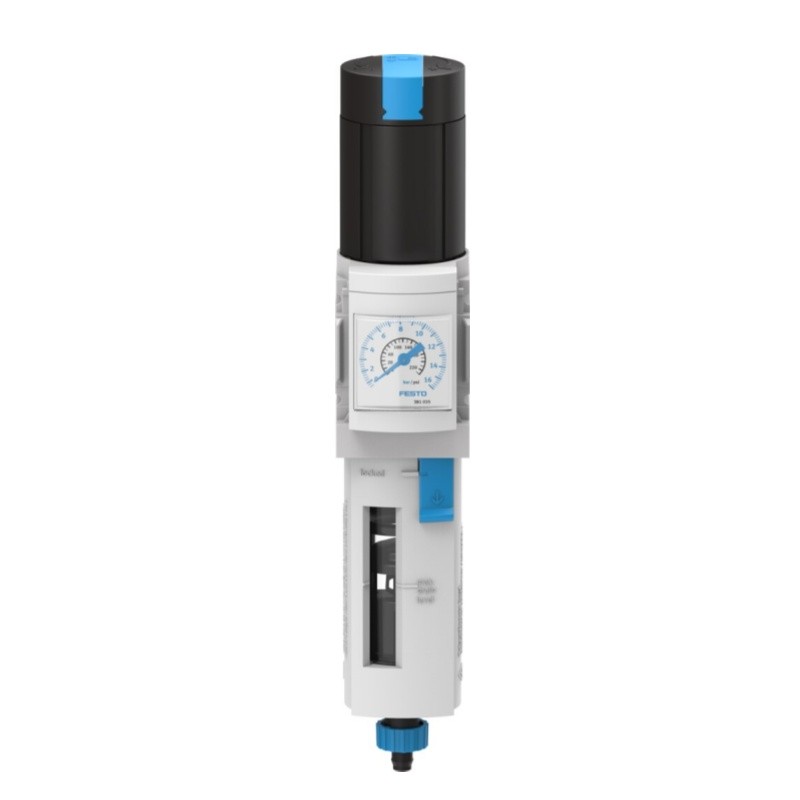

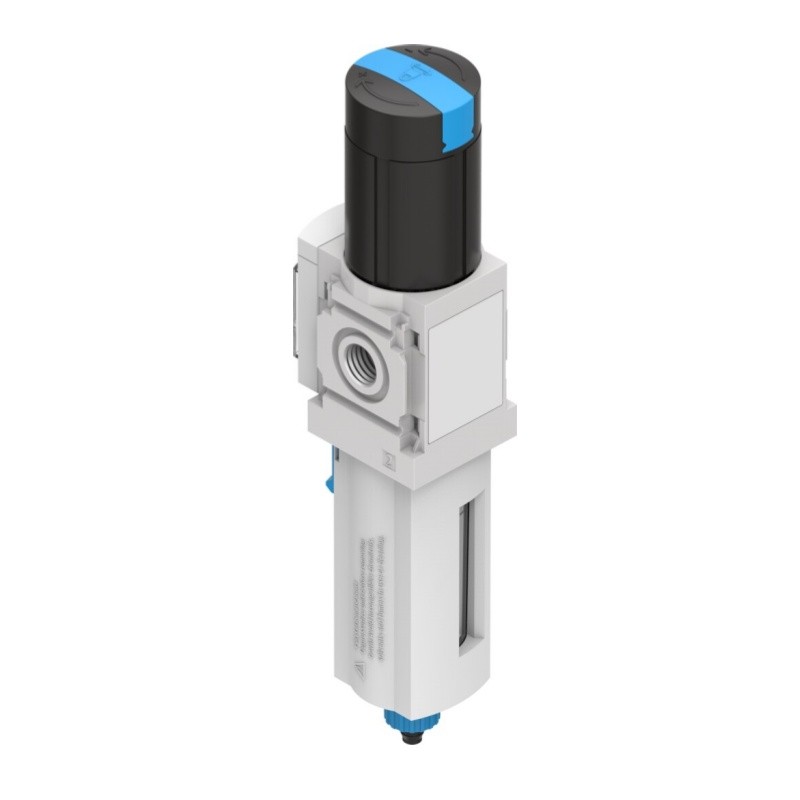

MS4-LFR-1/4-D6-CRV-AS (Part No.529146) is Festo MS4 series modular filter regulator, integrating air filtration and pressure regulation in one unit. Equipped with 5μm filter cartridge to remove solid particles, semi-automatic CRV condensate drain and AS safety lock adjustment knob. Standard nominal flow up to 1500 l/min, pressure adjustable from 0.3 to 7 bar. Modular design, easy to combine with other MS series air preparation components for compressed air system.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | MS4-LFR-1/4-D6-CRV-AS |
| Part No. | 529146 |
| Product Type | Pneumatic Filter Regulator / Air service unit |
| Series | MS4 |
| Pneumatic Connection | G1/4 |
| Filtration Grade | 5 μm |
| Pressure Regulation Range | 0.3 ~ 7 bar |
| Max. Inlet Pressure | 14 bar |
| Standard Nominal Flow | 1500 l/min |
| Max. Pressure Hysteresis | 0.25 bar |
| Condensate Drain | Semi-automatic CRV |
| Adjustment Knob | Rotary knob with lock AS |
| Operating Medium | Compressed air ISO 8573-1:2010 [7:4:4], inert gas |
| Ambient Temperature | -10 ~ +60 ℃ |
| Filter Element | PE |
| Bowl Material | Polycarbonate with bowl guard |
| Seal Material | NBR |
| CRC Corrosion Class | CRC2 |
| LABS Compliance | VDMA24364-B1/B2-L |
| Net Weight | 0.275 kg |
| Gross Weight | 0.35 kg |
| RoHS | Compliant |
| Condition | New Original |
| Application | Air source treatment, pneumatic system filtration & pressure regulation, automation machinery |
