MFH-5-1/4-B
Product Overview

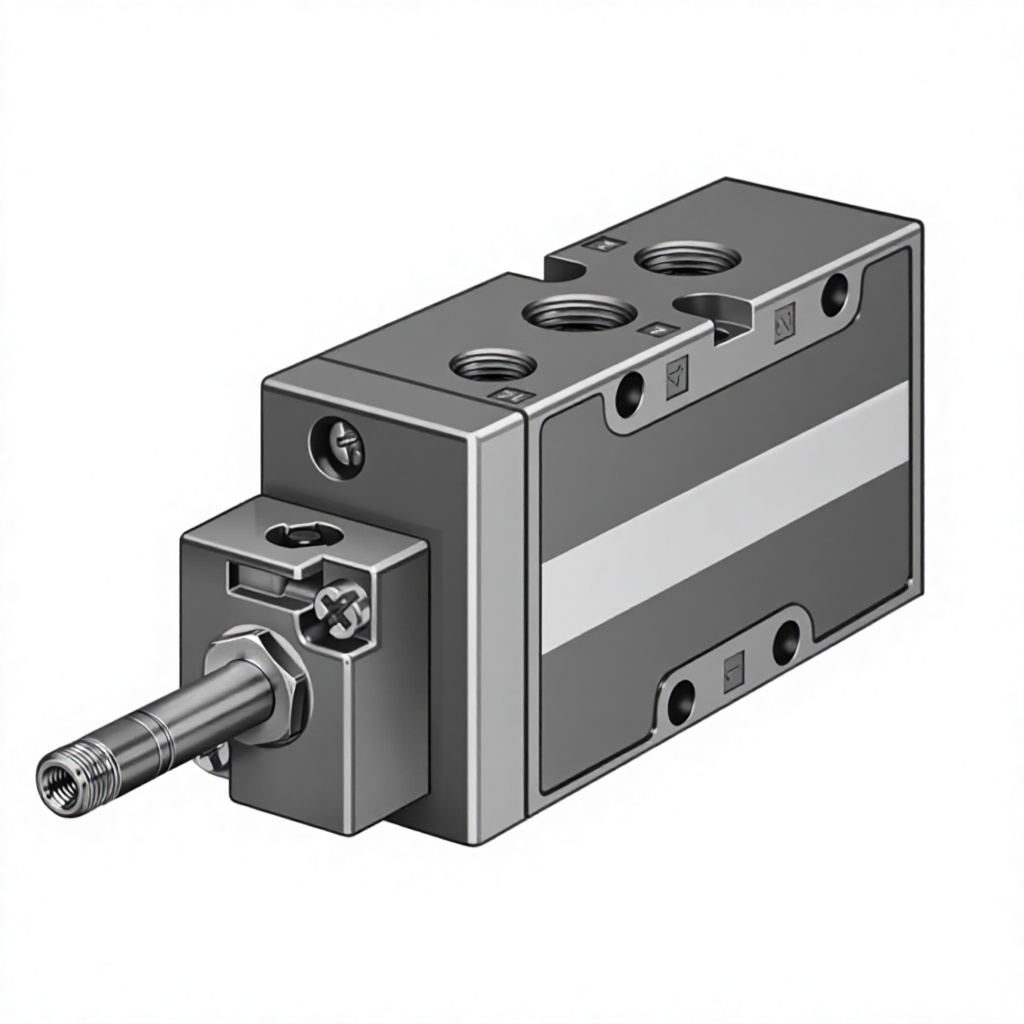

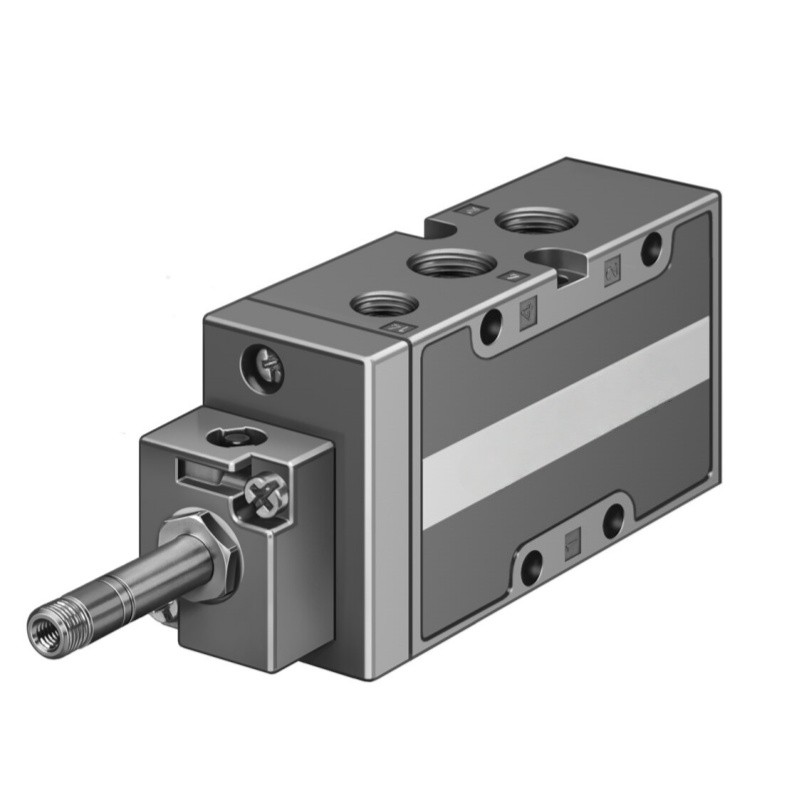

MFH-5-1/4-B, Part No.15901, belongs to classic Festo MFH series 5/2-way poppet solenoid valve. It is monostable with mechanical spring return, G1/4 pneumatic connection and high flow capacity up to 1000 l/min. This valve body does not include solenoid coil; coil must be purchased separately. Equipped with detenting manual override for convenient commissioning test. Reliable poppet seat structure, widely used for controlling pneumatic cylinders and actuators in traditional automation equipment.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | MFH-5-1/4-B |
| Part No. | 15901 |
| Type | 5/2-way monostable solenoid valve |
| Valve function | 5/2 way, monostable, mechanical spring return |
| Pneumatic port | G1/4 |
| Nominal bore | 7 mm |
| Standard nominal flow rate | 1000 l/min |
| Working medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Working pressure | -0.9 ~ 10 bar |
| Pilot pressure | 3 ~ 10 bar, internal pilot |
| Temperature range | -10 ~ 60 ℃ |
| Protection class | IP65 (with coil and socket) |
| Feature | Detenting manual override, coil sold separately, poppet seat design |
| Weight | 190.00 g |
| Corrosion resistance class | CRC1 |
| RoHS | Compliant |
| Certification | CE, c UL us Recognized |
