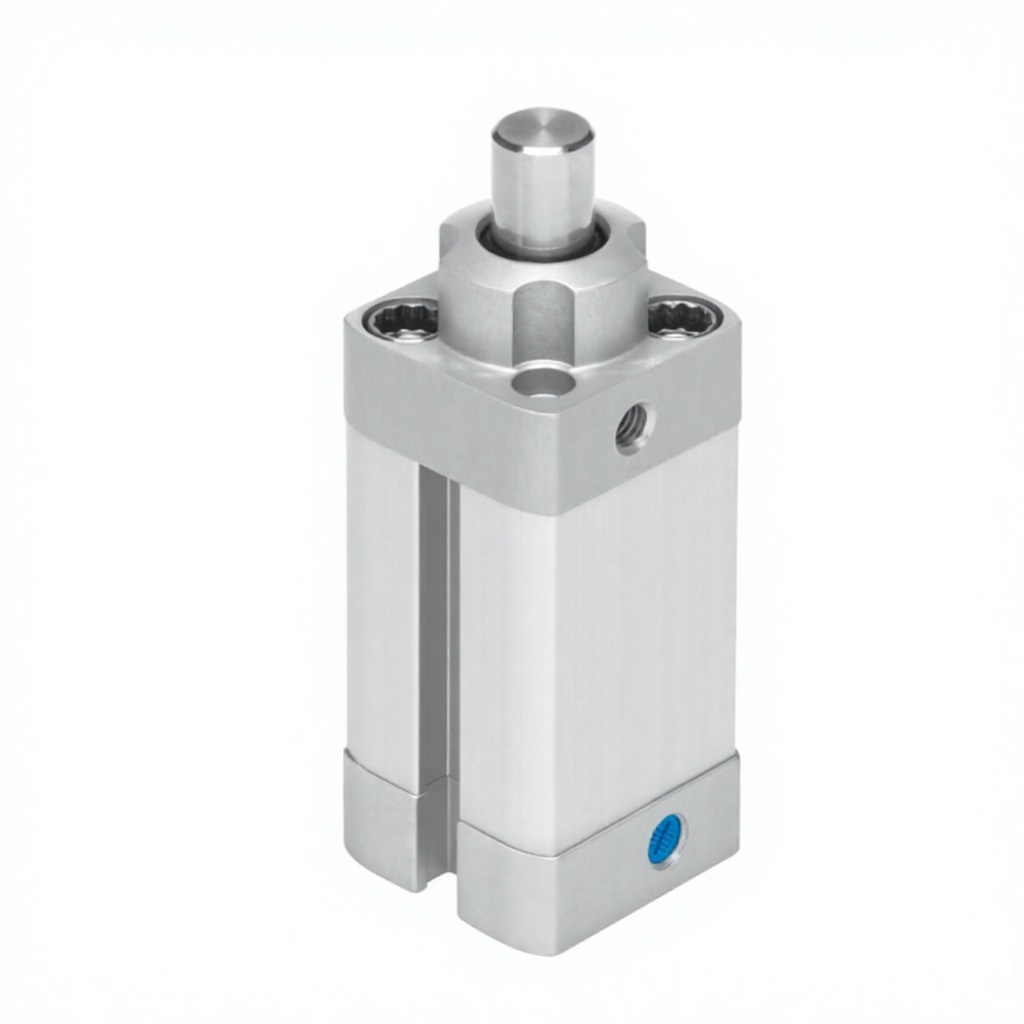

DFSP-20-15-PS-PA
Product Overview
DFSP-20-15-PS-PA, Part No.576079, belongs to Festo DFSP series stopper cylinder. It is single-acting pulling type with PS roller plunger head, designed to stop pallets and workpiece carriers on conveyor lines. A version has sensor grooves on three sides to install proximity switch for position feedback. Built-in elastic cushion reduces impact shock during stopping. Compact profile design, widely used for material flow control in conveyor automation.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | DFSP-20-15-PS-PA |
| Part No. | 576079 |
| Type | Stopper cylinder, single-acting pulling |
| Piston diameter | 20 mm |
| Stroke | 15 mm |
| Cushioning | Elastic cushion rings on both ends |
| Pneumatic port | M5 |
| Max impact force | 1370 N |
| Permissible lateral force | 228 N |
| Working medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Working pressure | 1.6 ~10 bar |
| Temperature range | -10 ~ 80 ℃ |
| Material | Profile barrel: anodised aluminium, Piston rod: high-alloy stainless steel, Seal: NBR |
| Weight | 115.00 g |
| Feature | PS: roller plunger, A: sensor grooves on three sides for proximity switch, LABS/PWIS compliant |
| Corrosion resistance class | CRC2 |
| RoHS | Compliant |
| Standard | VDMA24364-B1/B2-L |
