QSF-3/8-12-B
Product Description

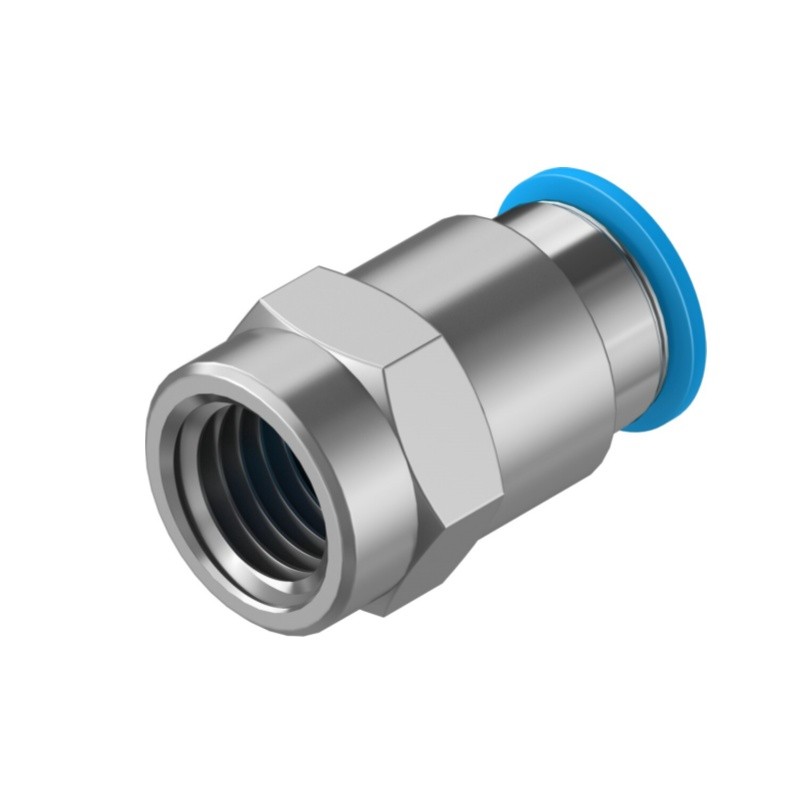

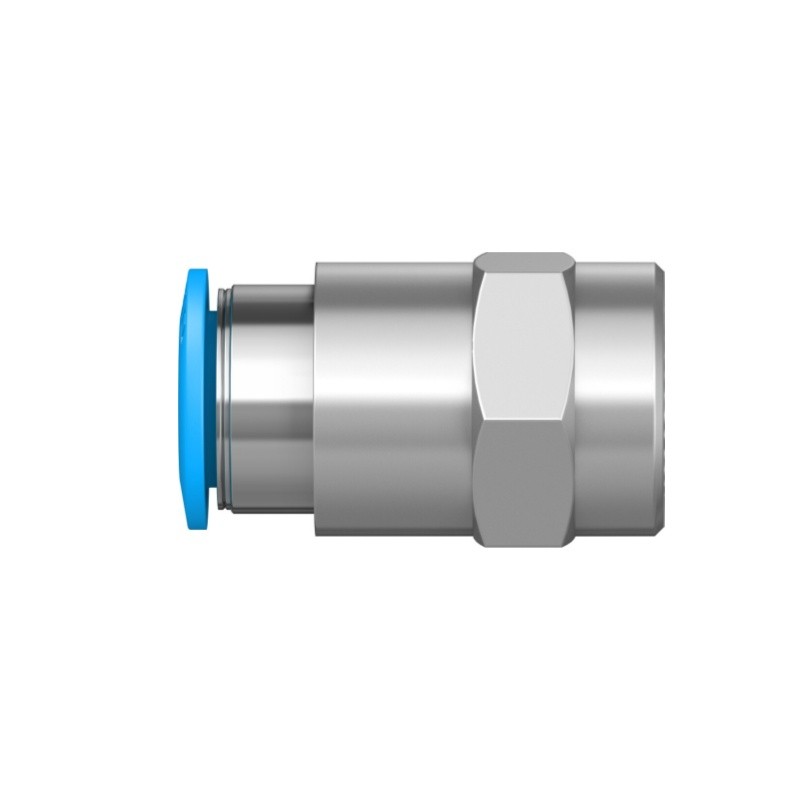

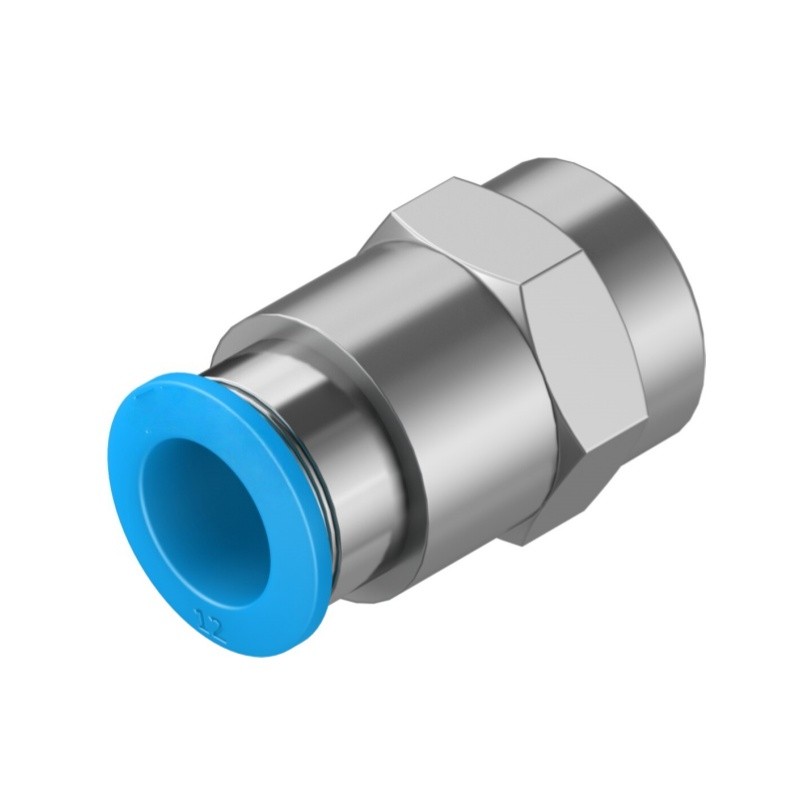

Festo QSF-3/8-12-B (Part No.153030) is QS series straight push-in pneumatic fitting. It is a female thread adapter with G3/8 internal thread and quick push-in port for 12mm OD air tubing. Adopt push-pull principle for fast tube insertion and removal without extra tools.
Nominal width 11 mm, working pressure range -0.095~1.4 MPa, ambient temperature -10~80℃. Nickel-plated brass body with blue POM release ring, reliable sealing and long service life. CRC1 corrosion resistance, LABS and RoHS compliant, suitable for compressed air pneumatic circuits.
| Item | Specification |
|---|---|
| Brand | Festo |
| Model | QSF-3/8-12-B |
| Part Number | 153030 |
| Type | Straight push-in female thread adapter |
| Port1 | G3/8 Female Thread |
| Port2 | For 12mm OD tubing |
| Nominal Width | 11 mm |
| Operating Pressure | -0.095 ~1.4 MPa |
| Ambient Temp | -10 ~ 80 ℃ |
| Weight | 46.00 g |
| Material | Nickel-plated brass, POM release ring |
| Corrosion Class | CRC1 |
| Standard | LABS, RoHS |
