1036721 DFS60B-S4PC10000

属性名称	属性值
Brand	SICK
Model	DFS60B-S4PC10000
Order No.	1036721
Product Type	Incremental Rotary Encoder
Connector Type	M12 Straight, 8 Pin
Pin	8 Pin
Pulse Per Revolution	10000 ppr
Shaft Type	Solid shaft
Shaft Diameter	10 mm
Output Signal	Line driver (RS422)
Supply Voltage	4.75…30 V DC
Max Speed	6000 rpm
IP Rating	IP65
Housing Material	Aluminum alloy
Operating Temperature	-20℃~+70℃
Feature	High resolution, solid shaft, anti-vibration, stable RS422 signal, high precision
Certificatio

INQUIRY

Product Details

Product Tags

Product Overview

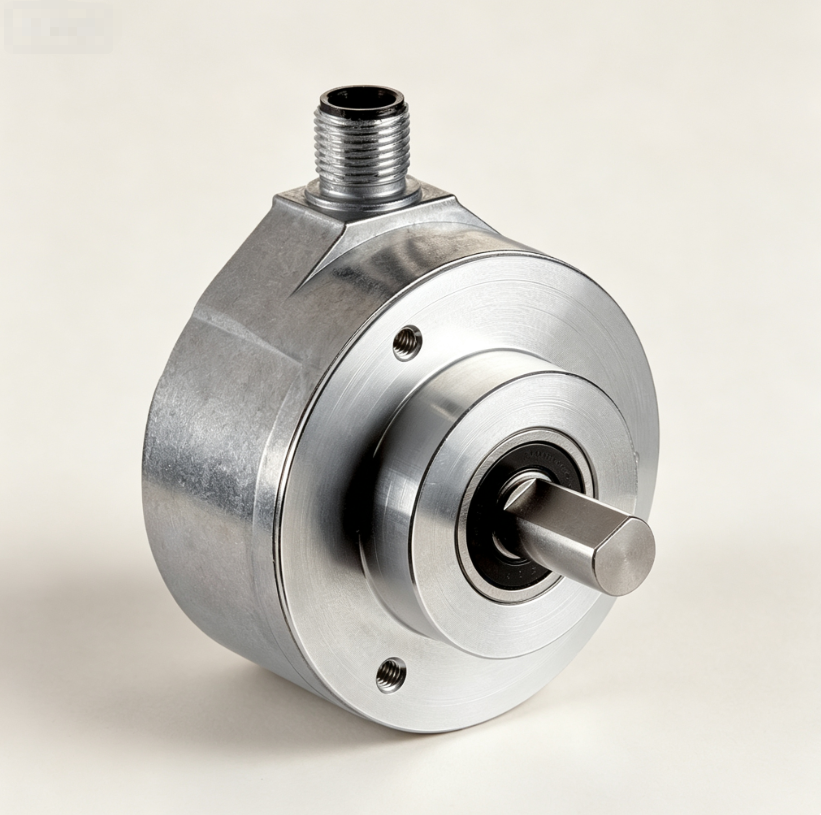

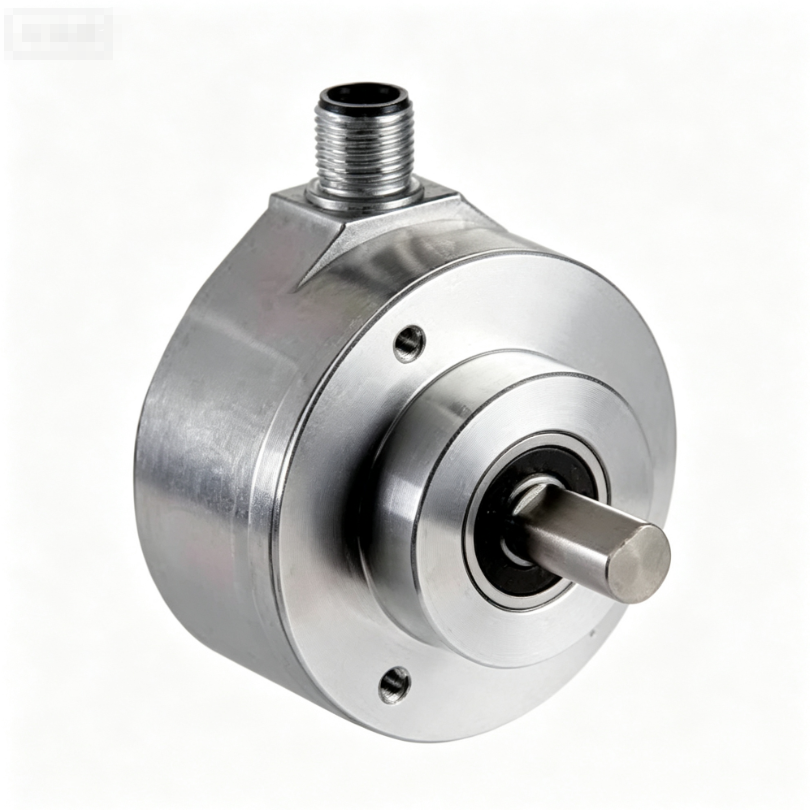

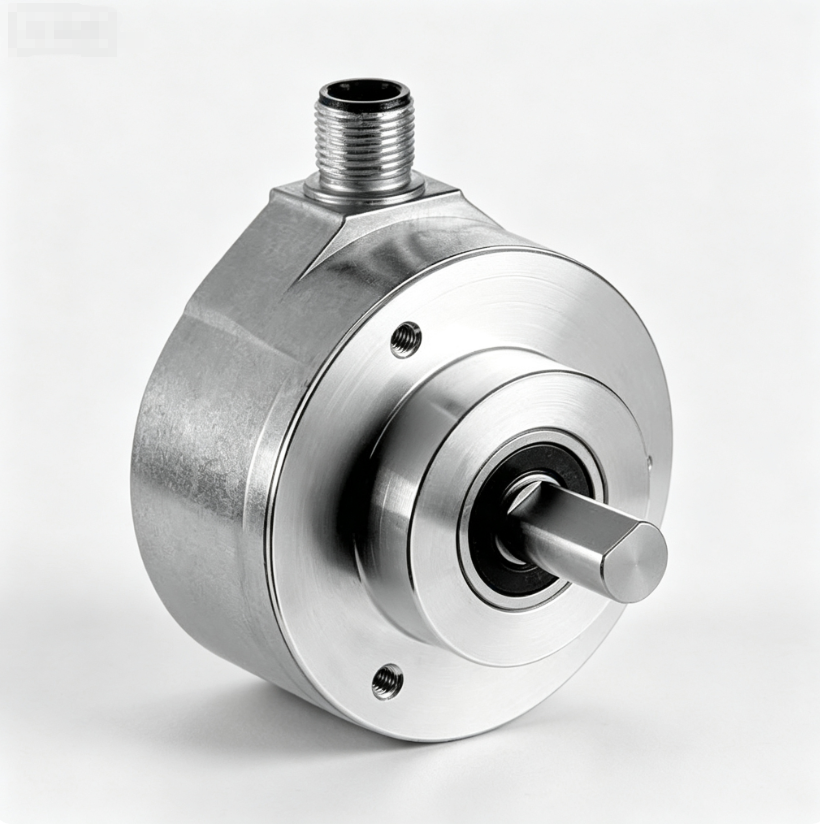

DFS60B-S4PC10000, Order No.1036721, is SICK incremental rotary encoder. It has a resolution of 10000 ppr, fitted with 10mm solid shaft and 8-pin M12 straight connector. It adopts RS422 line driver output, supply voltage 4.75~30V DC, maximum rotating speed up to 6000 rpm. Aluminum alloy housing with IP65 protection. With anti-vibration performance, high precision and stable signal transmission, it provides reliable speed and position feedback for industrial motion control systems.

属性名称	属性值
Brand	SICK
Model	DFS60B-S4PC10000
Order No.	1036721
Product Type	Incremental Rotary Encoder
Connector Type	M12 Straight, 8 Pin
Pin	8 Pin
Pulse Per Revolution	10000 ppr
Shaft Type	Solid shaft
Shaft Diameter	10 mm
Output Signal	Line driver (RS422)
Supply Voltage	4.75…30 V DC
Max Speed	6000 rpm
IP Rating	IP65
Housing Material	Aluminum alloy
Operating Temperature	-20℃~+70℃
Feature	High resolution, solid shaft, anti-vibration, stable RS422 signal, high precision
Certification	CE
Condition	New Original
MOQ	1 Piece
Gross Weight	0.30 KG
Net Weight	0.25 KG
Place of Origin	Germany
