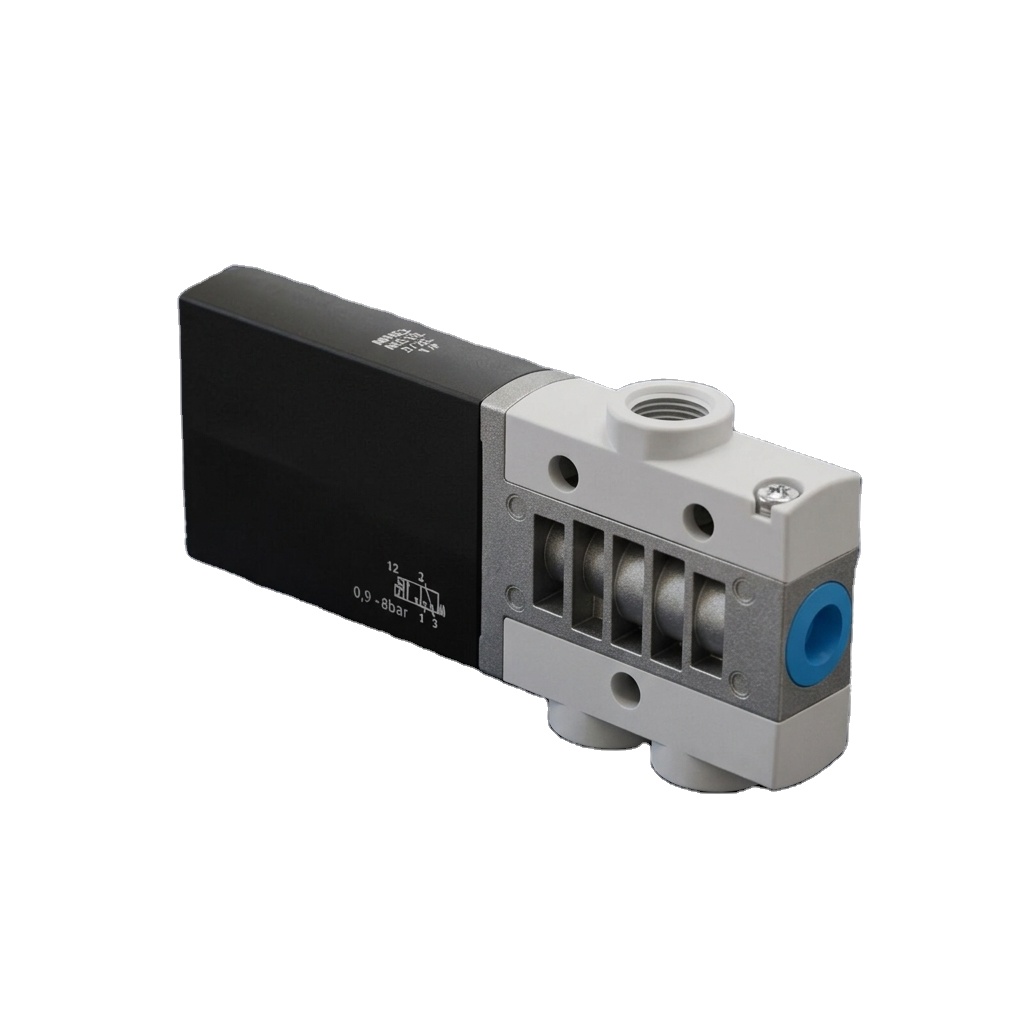

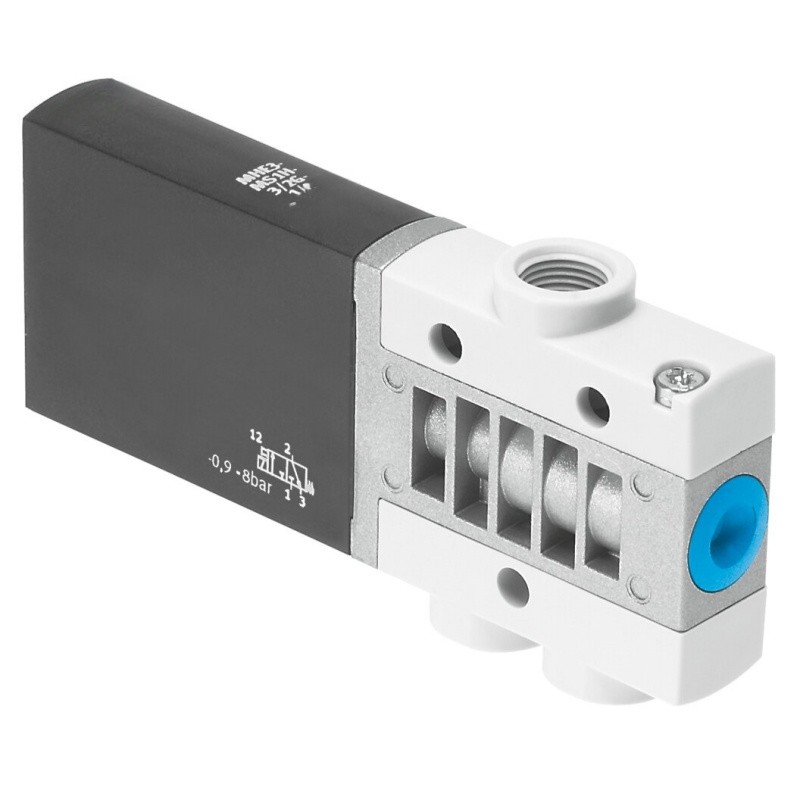

MHE3-MS1H-3/2G-1/8
Product Overview
MHE3-MS1H-3/2G-1/8, Part No.525147, belongs to Festo MHE3 series high-speed solenoid valve. It is a 3/2-way monostable normally closed direct acting poppet valve with G1/8 thread port. When energized, the valve opens to switch compressed air; when power off, spring return to cut off air supply. It has ultra-fast response and high switching frequency. Built-in reverse polarity protection and spark suppression circuit. Compact zinc alloy body, can be installed at any position, easy manifold arrangement. Widely used in packaging machinery, textile equipment and automation production lines for fast pneumatic switching control.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | MHE3-MS1H-3/2G-1/8 |
| Part No. | 525147 |
| Product Type | Solenoid Valve |
| Valve Function | 3/2-way, Normally Closed, Monostable |
| Actuation | Electric Direct Acting |
| Pneumatic Port | G1/8 |
| Operating Voltage | 24V DC |
| Operating Pressure | -0.9 ~ 8 bar |
| Nominal Flow | 200 l/min |
| Width | 14 mm |
| Nominal Diameter | 3 mm |
| Protection Class | IP65 |
| Reset Type | Spring Return |
| Sealing Type | Soft Seal |
| Mounting Position | Any |
| Max Switching Frequency | 280 Hz |
| Switch On Time | 2.3 ms |
| Switch Off Time | 2.8 ms |
| Medium | Compressed Air |
| Temperature Range | -5 ~ +40°C |
| Material | Die-cast Zinc Body, NBR Seal |
| Certification | CE, cULus, RCM |
| Gross Weight | 0.14 kg |
| Net Weight | 0.12 kg |
| Condition | New Original |
| Warranty | 12 Months |
