CQ4-08EPSKU1 6051009
Product Overview

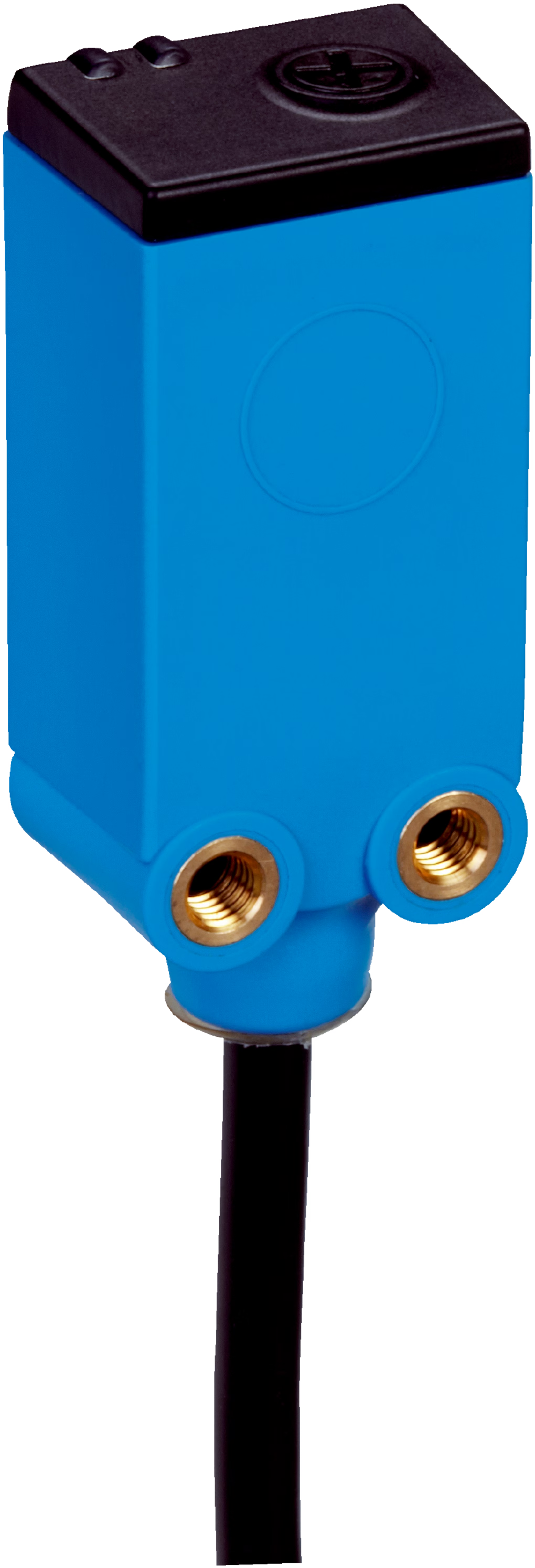

New original SICK CQ4-08EPSKU1 capacitive proximity sensor, PN 6051009, compact rectangular CQ4 series sensor. Sensing range 1~8mm, PNP NO output, 10-30VDC power supply. It comes with 2m 3-core PVC cable and IP67 protection grade. PBT plastic housing with 5-turn potentiometer for sensitivity adjustment. Working temperature -20℃ ~ +75℃. Miniature size suits limited installation space for level detection and object sensing on packaging and conveyor automation lines. We supply genuine SICK sensors with fast delivery and professional after-sales support.
| 属性名 | 属性值 |
|---|---|
| Brand | SICK |
| Model | CQ4-08EPSKU1 |
| Part No. | 6051009 |
| Series | CQ4 |
| Sensor type | Capacitive proximity sensor |
| Sensing distance | 1 ~ 8 mm |
| Installation | Flush / Non-flush mount |
| Output type | PNP, NO |
| Wiring | DC 3-wire |
| Connection | 2m 3-core PVC cable |
| Supply voltage | 10–30 V DC |
| Max switching current | 100 mA |
| Switching frequency | 100 Hz |
| IP rating | IP67 |
| Housing material | PBT plastic |
| Operating temperature | -20 ℃ ~ +75 ℃ |
| Feature | 5-turn potentiometer for sensitivity adjustment, compact miniature design |
| Weight(net) | 0.05 kg |
| Weight(gross) | 0.10 kg |
| Certificate | RoHS |
