CPV10-GE-FB-4
Product Overview

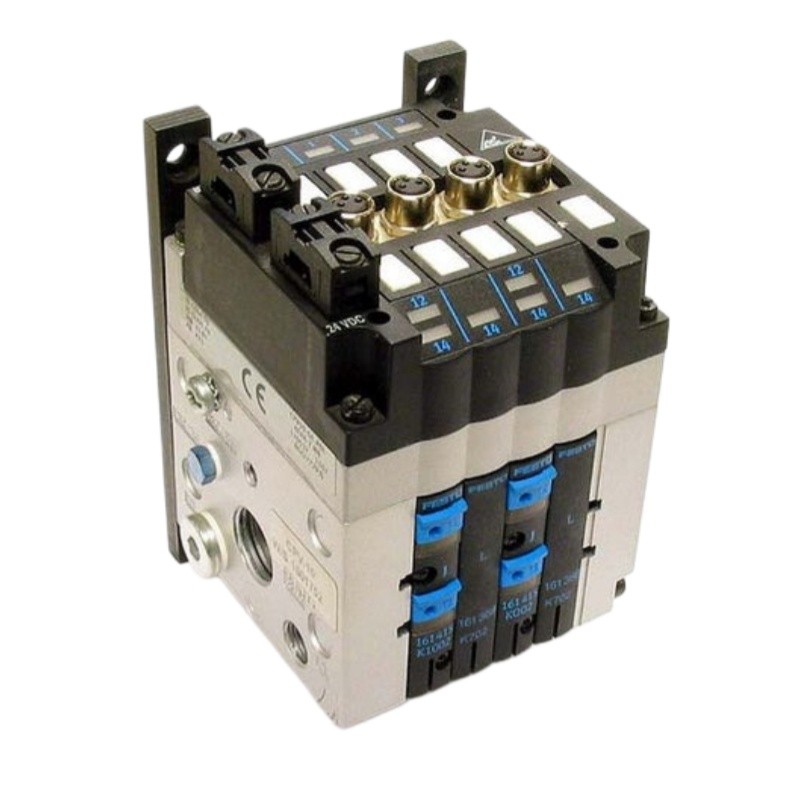

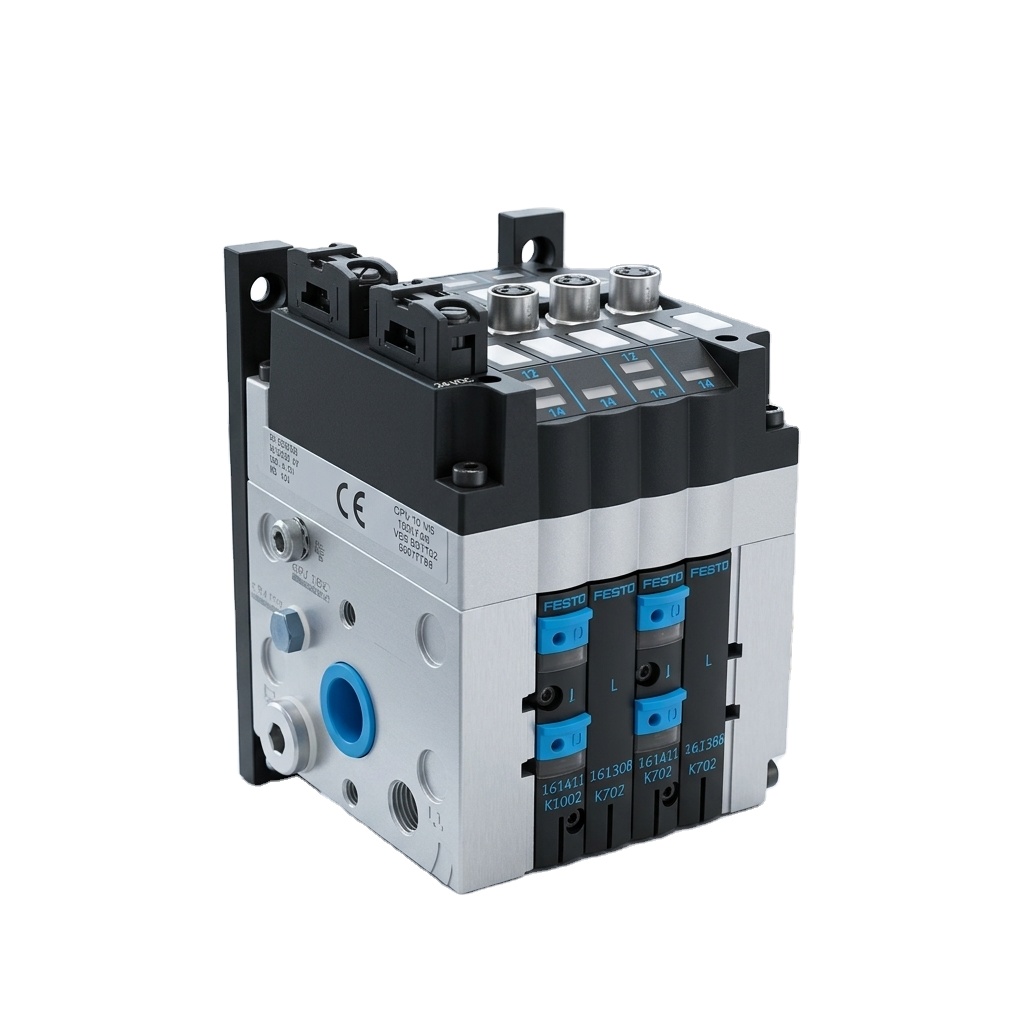

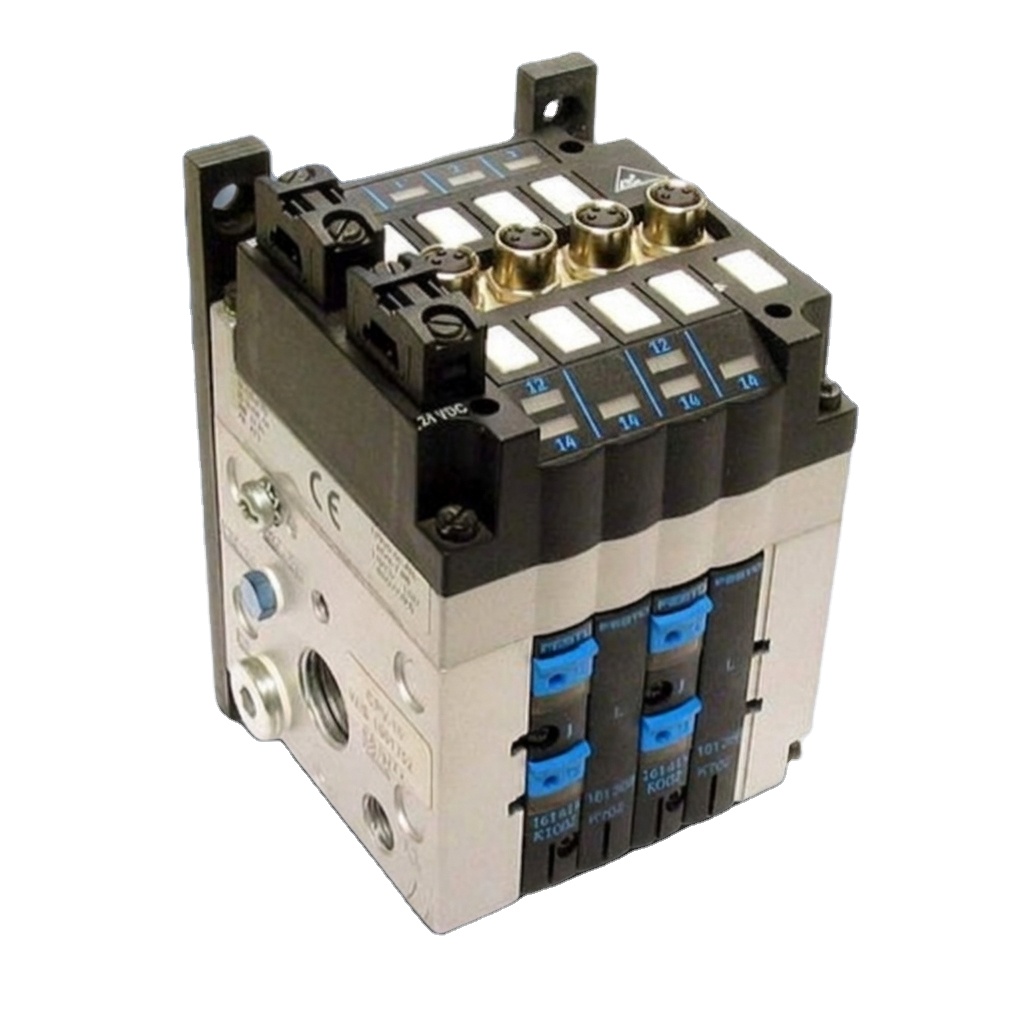

Festo CPV10-GE-FB-4 (Part No.18202) is PROFIBUS DP fieldbus interface node for CPV10 compact valve terminal. It can control up to 4 valve slices, exchange digital signals with PLC via PROFIBUS DP bus. Built-in diagnostic function to detect bus fault, short circuit and power undervoltage. It is installed at the end of CPV10 valve island, converting bus signal to drive CPV10 solenoid valves.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | CPV10-GE-FB-4 |
| Part Number | 18202 |
| Product Type | Fieldbus Node / Electrical Interface Module |
| Series | CPV10 Series |
| Supported Valve Slices | Max 4 valve slices |
| Communication Protocol | PROFIBUS DP |
| Baud Rate | 9.6 kBaud ~ 12 MBaud, auto detection |
| Operating Voltage | 24V DC (20.4 ~ 26.4V DC) |
| Electronics Current Consumption | ≤100mA |
| Electrical Connection | 9-pin Sub-D socket |
| Protection Class | IP65 |
| Function | Fieldbus communication, valve control & diagnostic, CP bus extension |
| Diagnostic | Bus error, short circuit, undervoltage, module missing alarm |
| Reverse Polarity Protection | Yes |
| Medium for Valve Terminal | Compressed air ISO 8573-1:2010 [7:4:4], lubricated air permitted |
| Ambient Temperature | -5 ~ +50 ℃ |
| Medium Temperature | -5 ~ +50 ℃ |
| Mounting | End module for CPV10 valve terminal, any mounting position |
| Housing Material | Plastic + Die-cast aluminium |
| Weight | 110 g |
| CRC Class | CRC 2 |
| LABS(PWIS) | VDMA24364-B1/B2-L |
| Certification | CE, UKCA |
| RoHS | Compliant |
| Original/New | New Original |
