QSL-3/8-10
Product Overview

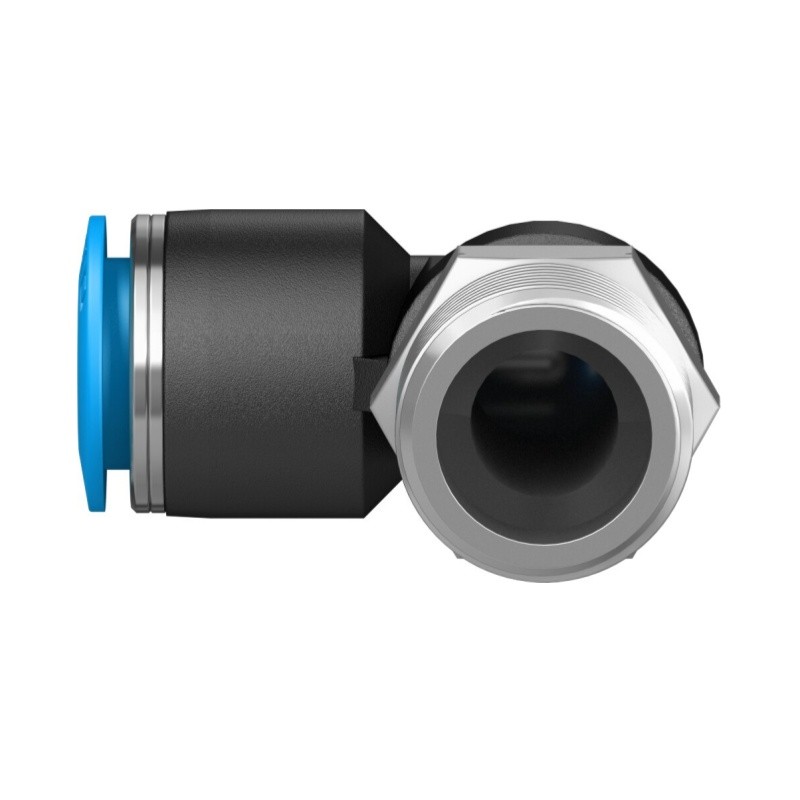

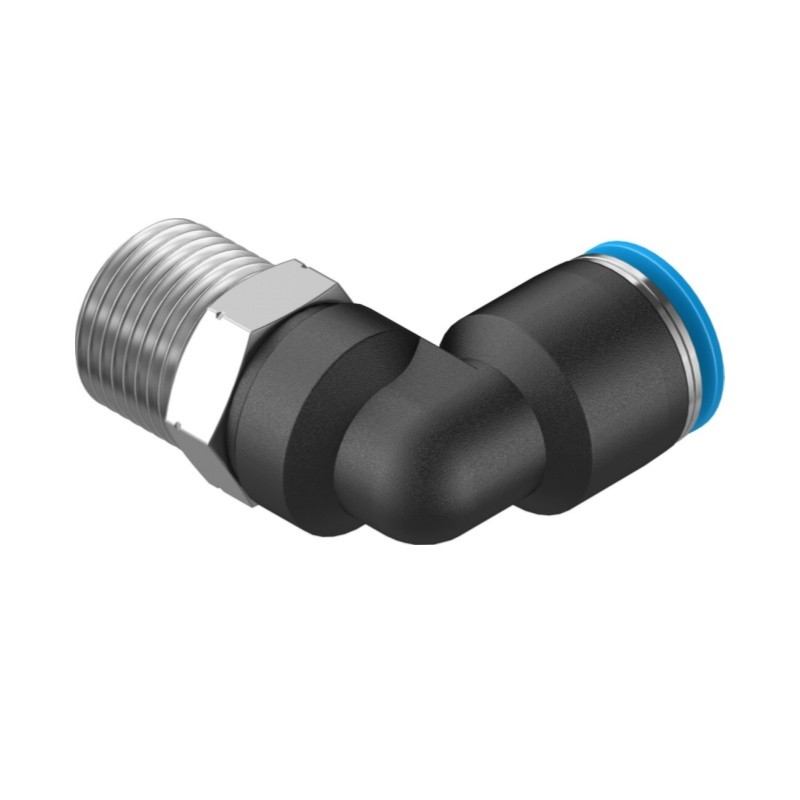

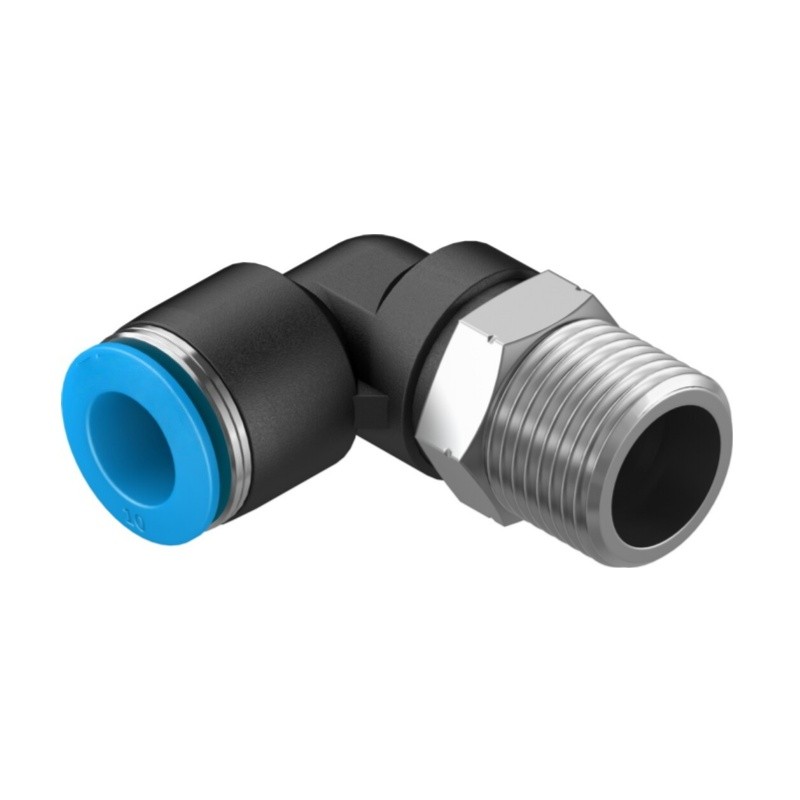

Festo QSL-3/8-10 (Part No.153051) belongs to QSL series push-in elbow fitting. It is a 90° L-type connector with G3/8 male thread on one side and push-in port for 10mm outer diameter tubing on the other side. Adopts push-pull quick connection principle, no tools needed for tube insertion and removal, widely used for turning air line at cylinder and valve ports.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | QSL-3/8-10 |
| Part Number | 153051 |
| Product Type | Push-in Elbow Fitting / L Connector |
| Series | QSL Series |
| Pneumatic Connection | G3/8 male thread, push-in port for tubing OD 10 mm |
| Nominal Size | 6.5 mm |
| Operating Pressure (full temp range) | -0.95 ~ 10 bar |
| Temperature-dependent Max Pressure | -0.95 ~ 16 bar |
| Medium | Compressed air ISO 8573-1:2010 [7:-:-], lubricated air allowed, vacuum applicable |
| Ambient Temperature | -10 ~ +80 ℃ |
| Design Principle | Push-pull principle, tool-free assembly |
| Mounting Position | Any mounting position |
| Housing Material | PBT |
| Release Ring | POM |
| Tube Claw | High-alloy stainless steel |
| Seal Material | NBR |
| Weight | 11.2 g |
| CRC Class | CRC 2 |
| LABS(PWIS) | VDMA24364-B1/B2-L |
| RoHS | Compliant |
| Original/New | New Original |
