1041457 WL12G-3O2431
Product Overview

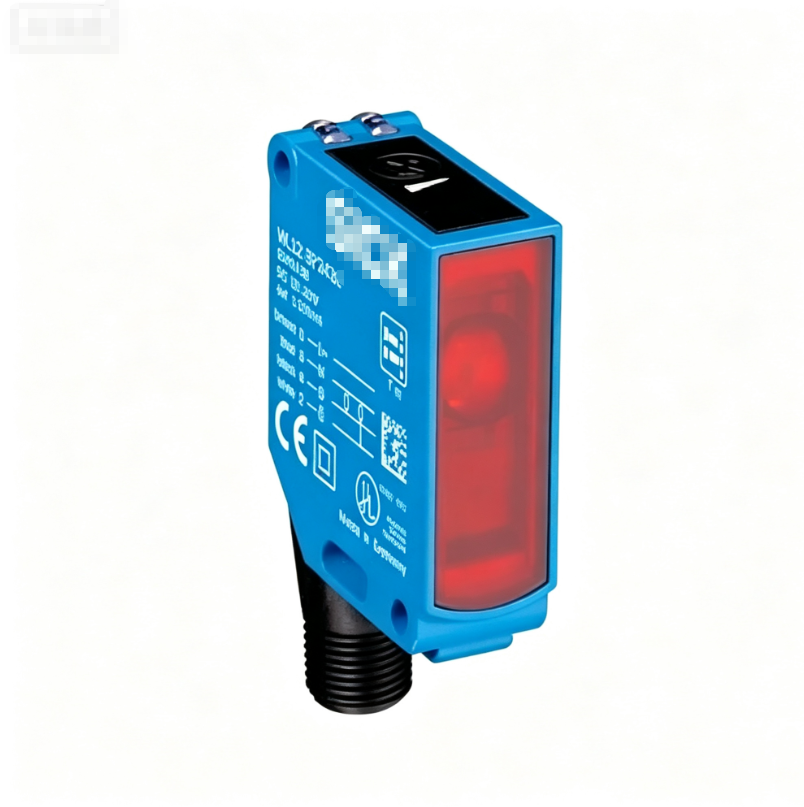

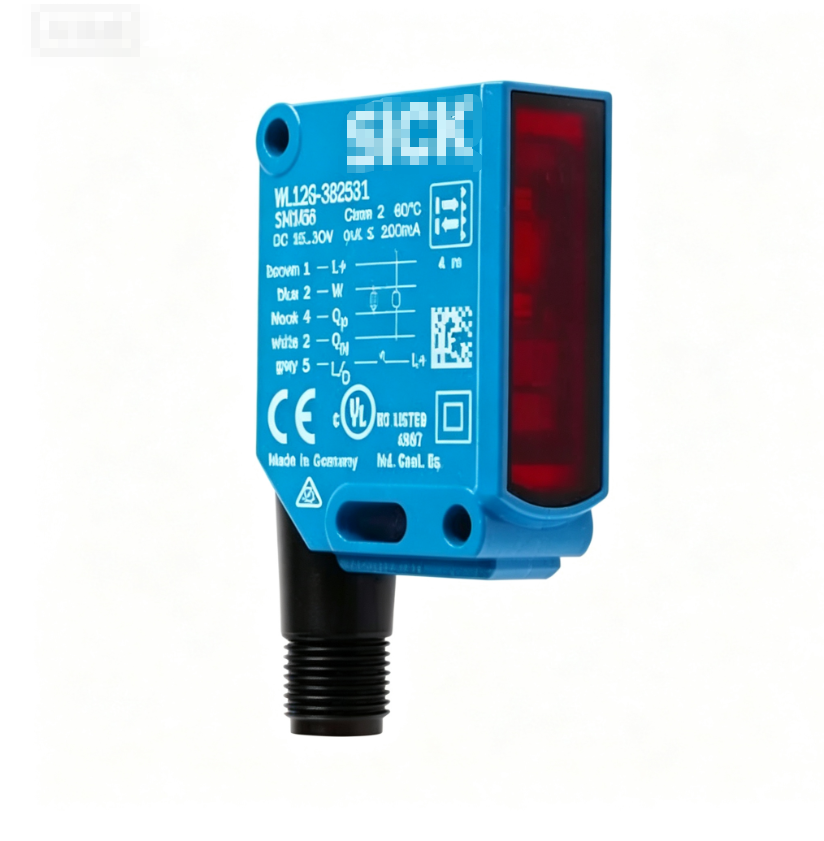

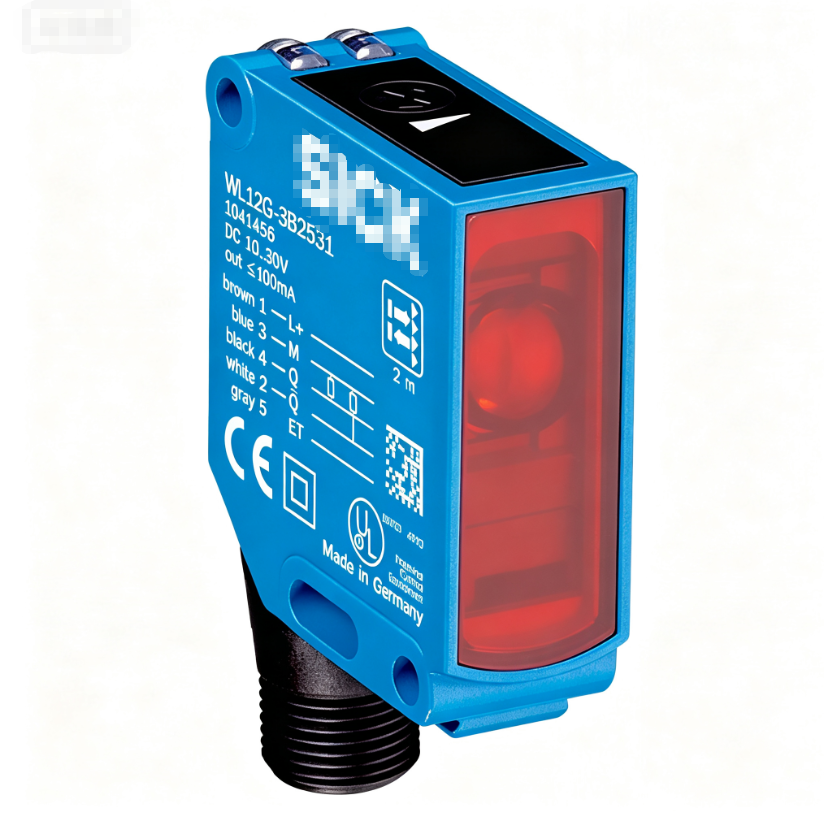

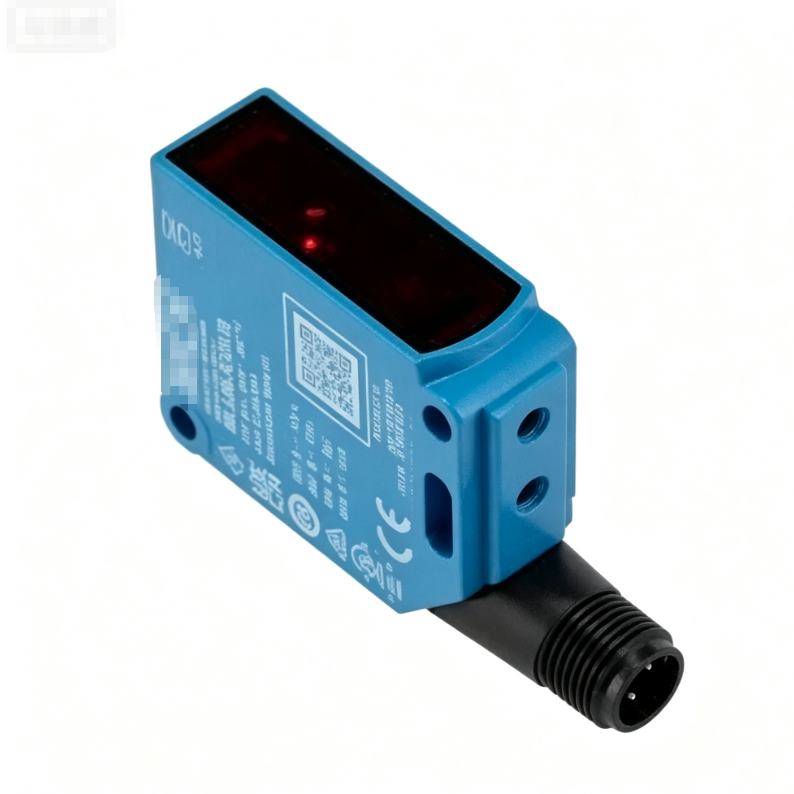

WL12G-3O2431 (Part No.1041457) is a retro-reflective photoelectric sensor with polarization filter from SICK WL12G series. It uses 640nm visible red LED light source, maximum sensing distance up to 4m when working with PL80A reflector. It has PNP output with switchable Light-ON / Dark-ON function and 11-turn potentiometer for sensitivity adjustment. Equipped with M12 4-pin male connector, zinc diecast metal housing with PMMA front screen, IP67 protection class, operating voltage DC10~30V. It includes 2pcs BEF-KH-W12 mounting clamps. This sensor excels at detecting transparent objects and is widely used in industrial automation. Brand new original SICK photoelectric sensor.
| 属性名称 | 属性值 |
|---|---|
| Brand | SICK |
| Model Number | WL12G-3O2431 |
| Part No. | 1041457 |
| Product Type | Photoelectric Sensor |
| Series | W12 / WL12G |
| Principle | Retro-reflective photoelectric sensor, coaxial auto-alignment optics with polarization filter |
| Sensing Distance | Max 4 m (with PL80A reflector) |
| Light Source | Visible red LED, 640nm |
| Adjustment | 11-turn potentiometer |
| Output Type | PNP, Light-ON / Dark-ON switchable |
| Supply Voltage | 10 V DC ~ 30 V DC |
| Housing Material | Zinc diecast metal + PMMA front screen |
| Protection Class | IP67 |
| Switching Frequency | 1500 Hz |
| Connector | M12 4-pin male connector |
| Included Accessory | 2pcs BEF-KH-W12 mounting clamps |
| Condition | New Original |
| Application | Transparent object detection, conveyor system, packaging machinery, material handling |
| Weight | 0.060 KG |
| Gross Weight | 0.090 KG |
| Place of Origin | Germany |
| MOQ | 1 Piece |
| Warranty | 12 Months |
