1093889 IMI12-04BPSVC0S

属性名称	属性值
Brand	SICK
Model Number	IMI12-04BPSVC0S
Part No.	1093889
Product Type	Inductive Proximity Sensor
Series	IMI12
Principle	Inductive metal detection
Sensing Distance	4 mm (Flush mounting)
Output Type	PNP NO (Normally Open), DC 3-wire
Thread specification	M12×1
Housing Material	Nickel-plated brass
Supply Voltage	10 V DC ~ 30 V DC
Protection Class	IP67
Switching Frequency	2000 Hz
Connector	M12 4-pin male connector
Condition	New Original
Application	Metal object detection, con

INQUIRY

Product Details

Product Tags

Product Overview

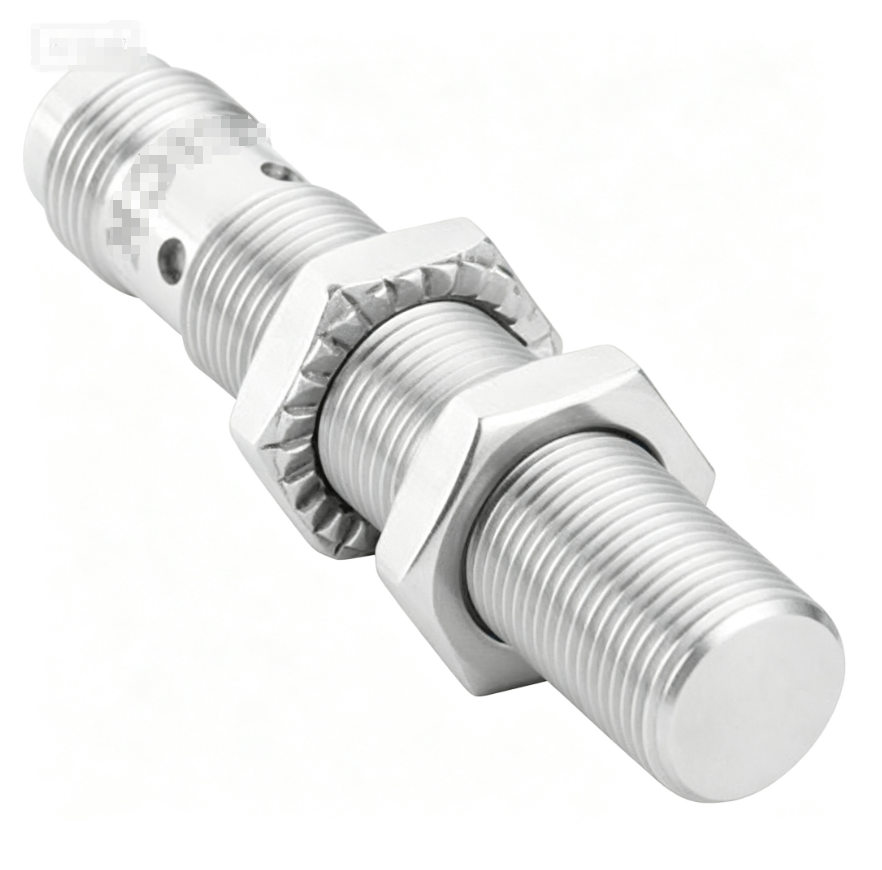

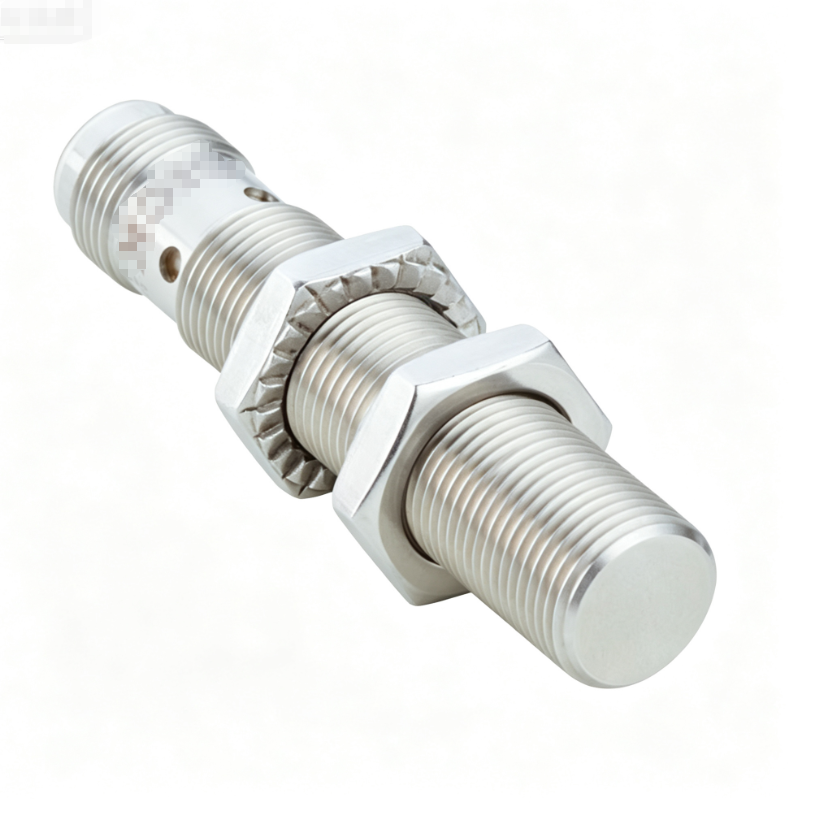

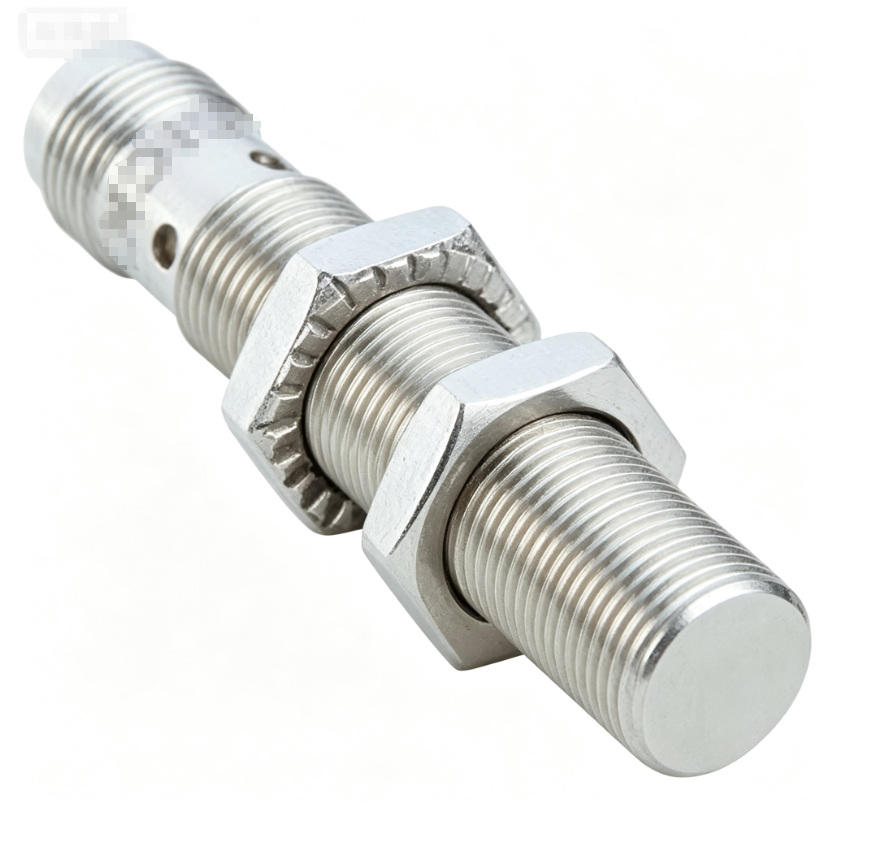

IMI12-04BPSVC0S (Part No.1093889) is a standard flush mounting inductive proximity sensor from SICK IMI12 series. It adopts PNP normally open DC 3-wire output, M12×1 nickel-plated brass threaded housing, IP67 protection class, powered by DC10~30V. With stable 2000Hz switching frequency, it can reliably detect metal workpieces without physical contact. Widely used in general industrial automation for metal object presence detection. Brand new original SICK inductive proximity sensor.

属性名称	属性值
Brand	SICK
Model Number	IMI12-04BPSVC0S
Part No.	1093889
Product Type	Inductive Proximity Sensor
Series	IMI12
Principle	Inductive metal detection
Sensing Distance	4 mm (Flush mounting)
Output Type	PNP NO (Normally Open), DC 3-wire
Thread specification	M12×1
Housing Material	Nickel-plated brass
Supply Voltage	10 V DC ~ 30 V DC
Protection Class	IP67
Switching Frequency	2000 Hz
Connector	M12 4-pin male connector
Condition	New Original
Application	Metal object detection, conveyor system, packaging machinery, general industrial automation
Weight	0.052 KG
Gross Weight	0.078 KG
Place of Origin	Germany
MOQ	1 Piece
Warranty	12 Months
